1-27
Catalyst 6500 Series Switch Module Installation Guide
78-15725-02
Chapter 1 Product Overview
10/100 and 10/100/1000 Ethernet Switching Modules

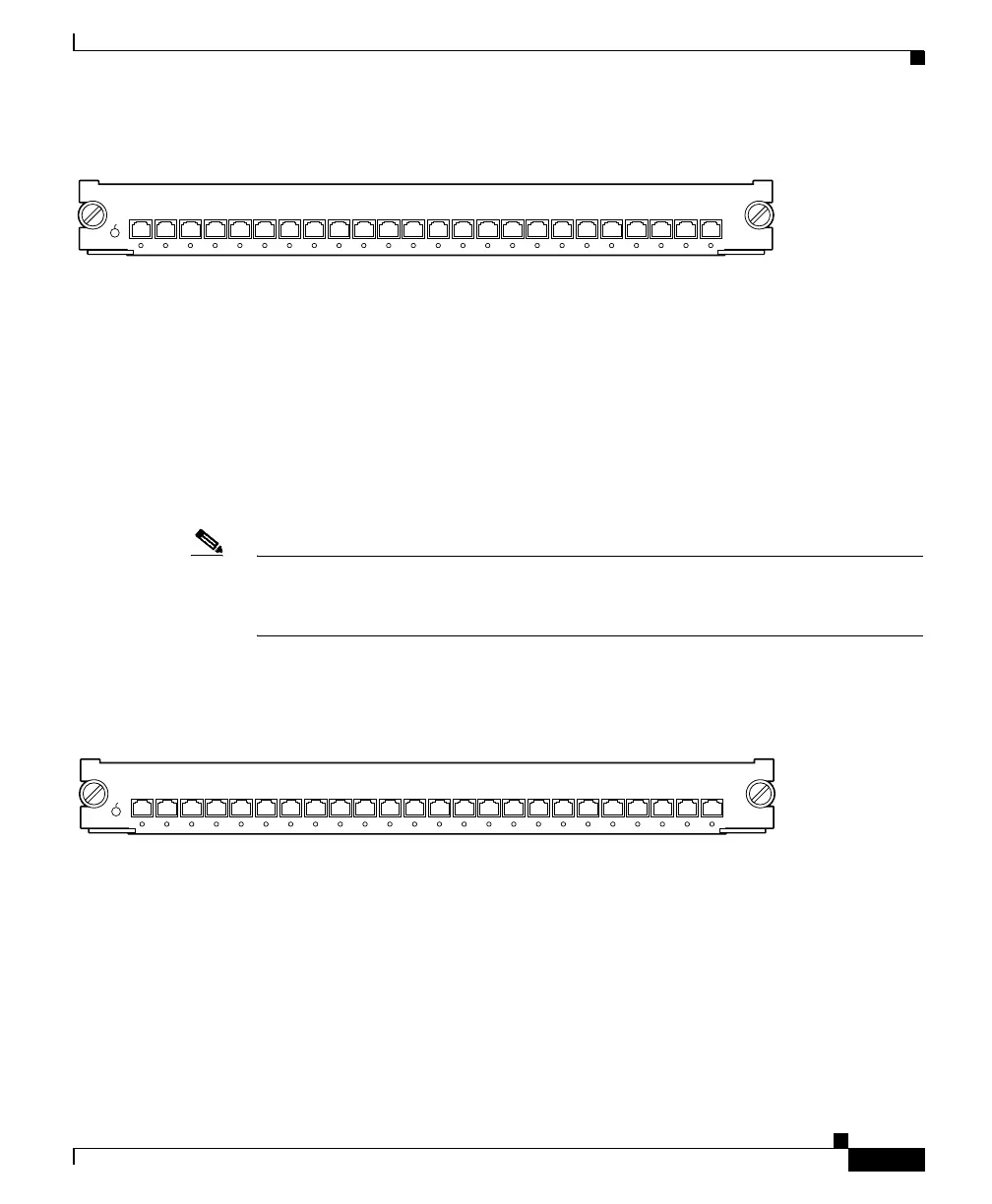

Figure 1-13 24-Port 100BASE-FX Ethernet Switching Module (WS-X6324-100FX-MM)
The front panel LEDs are described in Table 1-6 on page 1-47.
24-Port 100BASE-FX Ethernet Switching Module
(WS-X6324-100FX-SM)
The 24-port 100BASE-FX switching module (WS-X6324-100FX-SM) provides
24 switched, 100-Mbps, full- or half-duplex ports. (See Figure 1-14.) The module
has 24 MT-RJ connectors for connection to SMF cable.
Note This module is a Class 1 laser product. Refer to the Regulatory Compliance and
Safety Information for the Catalyst 6500 Series Switches for information on
working with lasers.
The QoS port architecture (Rx/Tx) for this module is 1q4t/2q2t.
Figure 1-14 24-Port 100BASE-FX Ethernet Switching Module (WS-X6324-100FX-SM)
The front panel LEDs are described in Table 1-6 on page 1-47.
24 PORT 100FX-MMF
WS-X6324-100FX-MM
1
LINK
2
LINK
3
LINK
4
LINK
5
LINK
6
LINK
7
LINK
8
LINK
9
LINK
10
LINK
11
LINK
12
LINK
13
LINK
14
LINK
15
LINK
16
LINK
17
LINK
18
LINK
19
LINK
20
LINK
21
LINK
22
LINK
23
LINK
24
LINK
STATUS
44744
24 PORT 100FX-SMF
WS-X6324-100FX-SM
1
LINK
2
LINK
3
LINK
4
LINK
5
LINK
6
LINK
7
LINK
8
LINK
9
LINK
10
LINK
11
LINK
12
LINK
13
LINK
14
LINK
15
LINK
16
LINK
17
LINK
18
LINK
19
LINK
20
LINK
21
LINK
22
LINK
23
LINK
24
LINK
STATUS
44745
