Cisco Catalyst 6500 Series Installation Guide

1-31
Catalyst 6500 Series Switch Module Installation Guide
78-15725-02
Chapter 1 Product Overview
10/100 and 10/100/1000 Ethernet Switching Modules
24-Port 100BASE-FX Fabric-Enabled Ethernet Switching Module
(WS-X6524-100FX-MM)
The 24-port 100BASE-FX switching module (WS-X6524-100FX-MM) provides
24 switched, 100-Mbps, full- or half-duplex ports. (See Figure 1-18.) Ports have
MT-RJ connectors for MMF cable. The WS-X6524-100FX-MM module has
1-MB per-port packet buffers and a single fabric channel interface. The switching
module is upgradable to support distributed forwarding with an optional
Distributed Forwarding Card (WS-F6K-DFC).
Note This module is a Class 1 laser product. Refer to the Regulatory Compliance and
Safety Information for the Catalyst 6500 Series Switches for information on
working with lasers.
The QoS port architecture (Rx/Tx) for this module is 1p1q0t/1p3q1t.

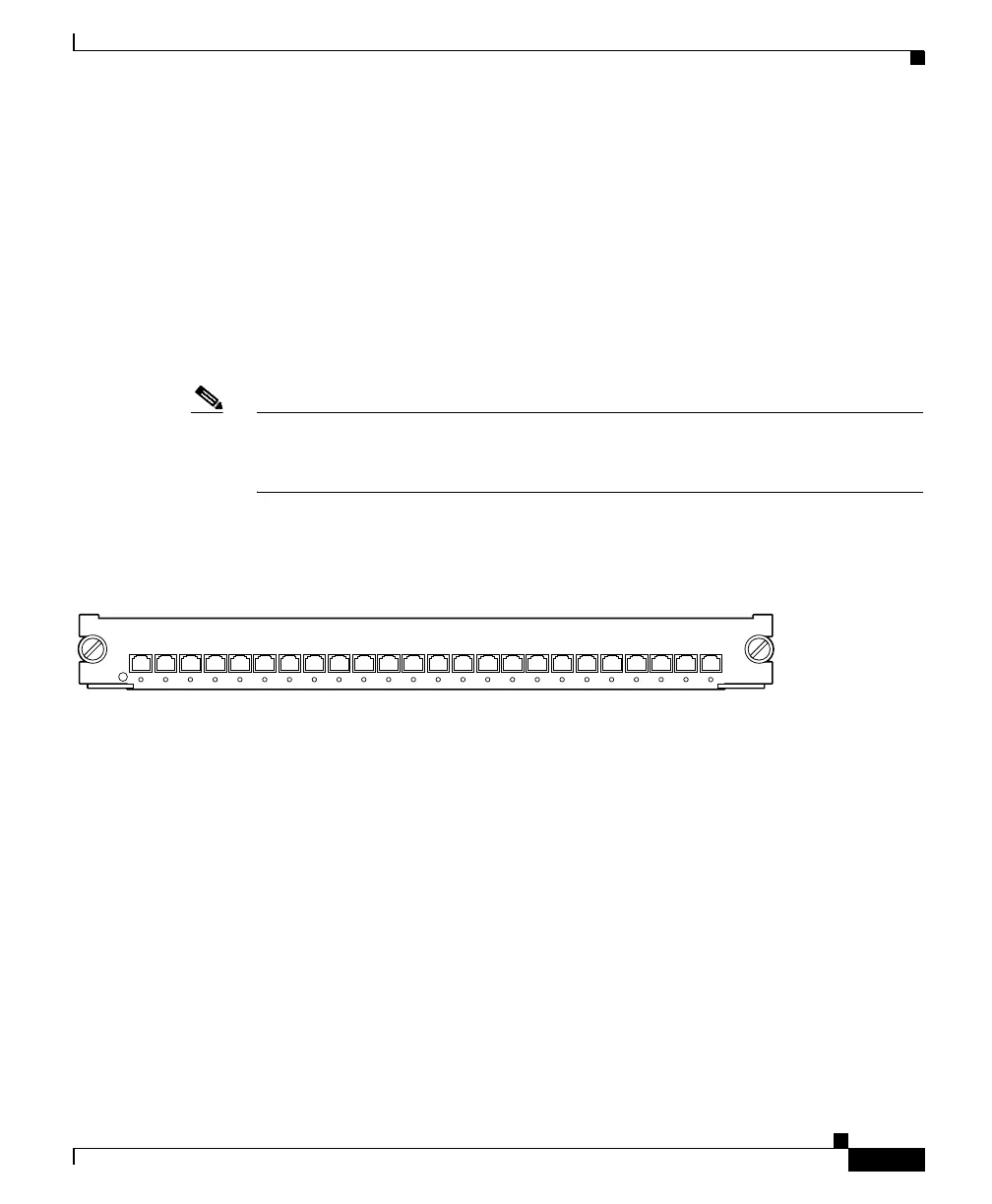

Figure 1-18 24-Port 100BASE-FX Fabric-Enabled Ethernet Switching Module (WS-X6524-100FX-MM)
The front panel LEDs are described in Table 1-6 on page 1-47.
48-Port 10/100/1000BASE-T Ethernet Switching Module
(WS-X6548-GE-TX)
The 48-port 10/100/1000BASE-T switching module (WS-X6548-GE-TX)
provides 48 switched, 10/100/1000-Mbps autosensing, full- or half-duplex ports.
(See Figure 1-19.) The module has 48 RJ-45 connectors for use with either
Category 3, Category 5, Category 5e, or Category 6 UTP cable. This module can
be upgraded with an inline-power daughter card to support IP phones.
1
LINK
2
LINK
3
LINK
4
LINK
5
LINK
6
LINK
7
LINK
8
LINK
9
LINK
10
LINK
11
LINK
12
LINK
13
LINK
14
LINK
15
LINK
16
LINK
17
LINK
18
LINK
19
LINK
20
LINK
21
LINK
22
LINK
23
LINK
24
LINK
63671
WS-X6524-100FX-MM
24 PORT 100FX-MMF
STATUS
