Cisco Catalyst 6500 Series Installation Guide

Chapter 1 Product Overview
10/100 and 10/100/1000 Ethernet Switching Modules
1-30
Catalyst 6500 Series Switch Module Installation Guide
78-15725-02
48-Port 10/100BASE-T Ethernet Switching Module
(WS-X6348-RJ45V)
The 48-port 10/100BASE-T switching module (WS-X6348-RJ45V) provides 48
switched, 10/100-Mbps autosensing, full- or half-duplex ports. (See Figure 1-17.)
The module has 48 RJ-45 connectors for use with either Category 3, Category 5,
Category 5e, or Category 6 UTP or FTP cable. The “V” in the product number
indicates that the inline-power daughter card (WS-F6K-VPWR) is installed on the
module. With the WS-F6K-VPWR daughter card installed, the module provides
these IP phone features on each port:
• Inline power—Provides 48 VDC over standard Category 5, Category 5e, or
Category 6 UTP cable up to 328 feet (100 meters) from the switch to the IP
phone. With inline power, pairs 2 and 3 (pins 1, 2, 3, and 6) of the four pairs
in the cable are used to transmit power (6.3 W) from the switch. This method
of supplying power is sometimes called phantom power because the power
signals travel over the same two pairs used to transmit Ethernet signals. The
power signals are completely transparent to the Ethernet signals and do not
interfere with their operation.
• Phone discovery—Automatically detects the presence of an IP phone and
supplies inline power to the phone.
• Auxiliary VLANs—Provides automatic VLAN configuration for IP phones
using IEEE 802.1Q as the standards-based VLAN tagging mechanism
between the switch and the IP phone.
The QoS port architecture (Rx/Tx) for this module is 1q4t/2q2t.

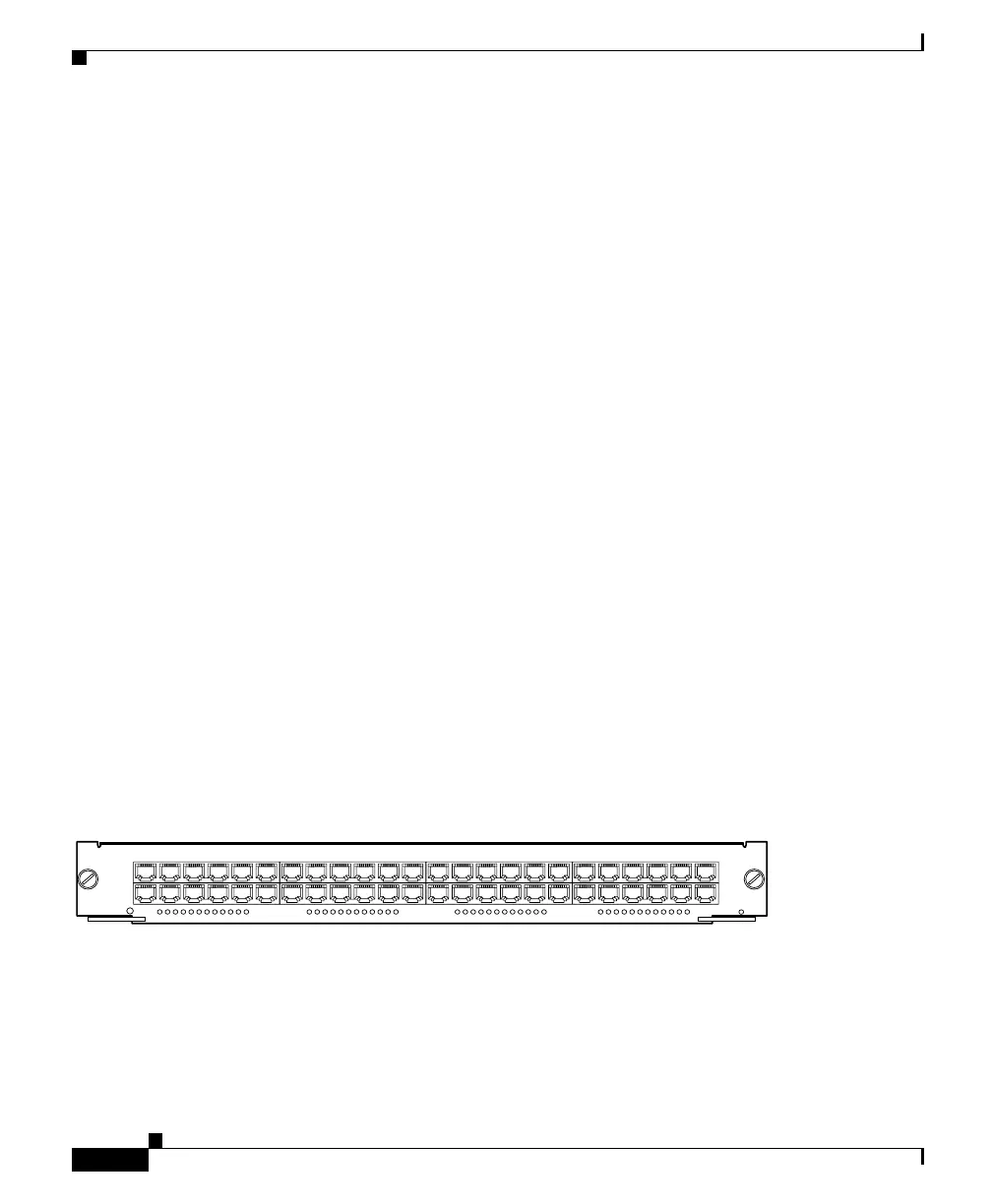

Figure 1-17 48-Port 10/100BASE-T Ethernet Switching Module (WS-X6348-RJ45V)
The front panel LEDs are described in Table 1-6 on page 1-47.
39334
48 PORT
10/100 BASE-T
ETHERNET SWITCHING
MODULE
WS-X6348-RJ-45V
STATUS
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
1
11
2
12
14
13
24
26
36
38
48
23
25
35
37
47
PHONE
