Chapter 1 Product Overview

Gigabit Ethernet Switching Modules

1-38

Catalyst 6500 Series Switch Module Installation Guide

78-15725-02

Note These modules are Class 1 laser products. Refer to the Regulatory Compliance

and Safety Information for the Catalyst 6500 Series Switches for information on

working with lasers.

16-Port Gigabit Ethernet Switching Module (WS-X6316-GE-TX)

The 16-port Gigabit Ethernet switching module (WS-X6316-GE-TX) provides 16

switched, full-duplex Gigabit Ethernet ports. (See Figure 1-24.) Ports have RJ-45

connectors for Category 5 UTP. The WS-X6316-GE-TX module has enhanced

QoS features.

The QoS port architecture (Rx/Tx) for this module is 1p1q4t/1p2q2t.

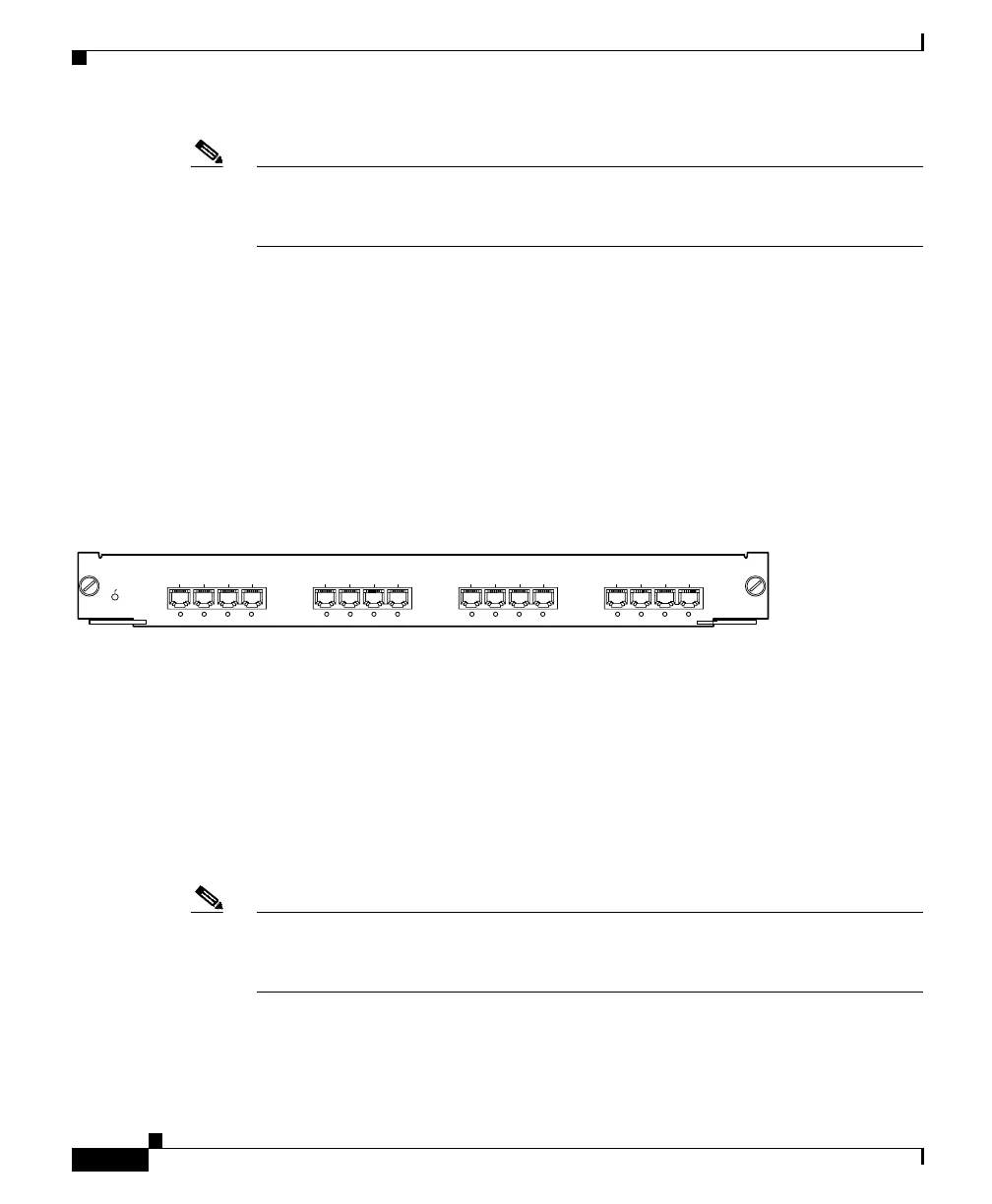

Figure 1-24 16-Port Gigabit Ethernet Switching Module (WS-X6316-GE-TX)

The front panel LEDs are described in Table 1-6 on page 1-47.

8-Port Gigabit Ethernet Switching Module (WS-X6408-GBIC)

The 8-port Gigabit Ethernet switching module (WS-X6408-GBIC) provides eight

switched, full-duplex Gigabit Ethernet ports that you can configure with any

combination of 1000BASE-SX, LX/LH, and ZX GBICs, copper GBICs, or Coarse

Wave Division Multiplexer (CWDM) GBICs. (See Figure 1-25.)

Note CWDM GBICs are used with the CWDM Passive Optical System. For more

information on the CWDM Passive Optical System, refer to the Installation Note

for the CWDM Passive Optical System.

The QoS port architecture (Rx/Tx) for this module is 1q4t/2q2t.

44314

WS-X6316-GE-7X

16 PORT 1000 BASE-T GE

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

LINK
