Chapter 1 Product Overview
10/100 and 10/100/1000 Ethernet Switching Modules
1-34
Catalyst 6500 Series Switch Module Installation Guide
78-15725-02
48-Port 10/100BASE-T Fabric-Enabled Ethernet Switching
Module (WS-X6548-RJ-45)
The 48-port 10/100BASE-T switching module (WS-X6548-RJ-45) provides
48 switched, 10/100-Mbps, full- or half-duplex ports. (See Figure 1-22.) Ports
have RJ-45 connectors for Category 5, 5e, and 6 cable. The WS-X6548-RJ-45
module has 1-MB per-port packet buffers and a single fabric channel interface.
The switching module is upgradable to support distributed forwarding with an
optional Distributed Forwarding Card (WS-F6K-DFC). The WS-X6548-RJ-45
module is auto-MDI/MDIX capable; you can use either straight or crossover
cable, and the module will automatically detect and adjust for the cable type.
The QoS port architecture (Rx/Tx) for this module is 1p1q0t/1p3q1t.

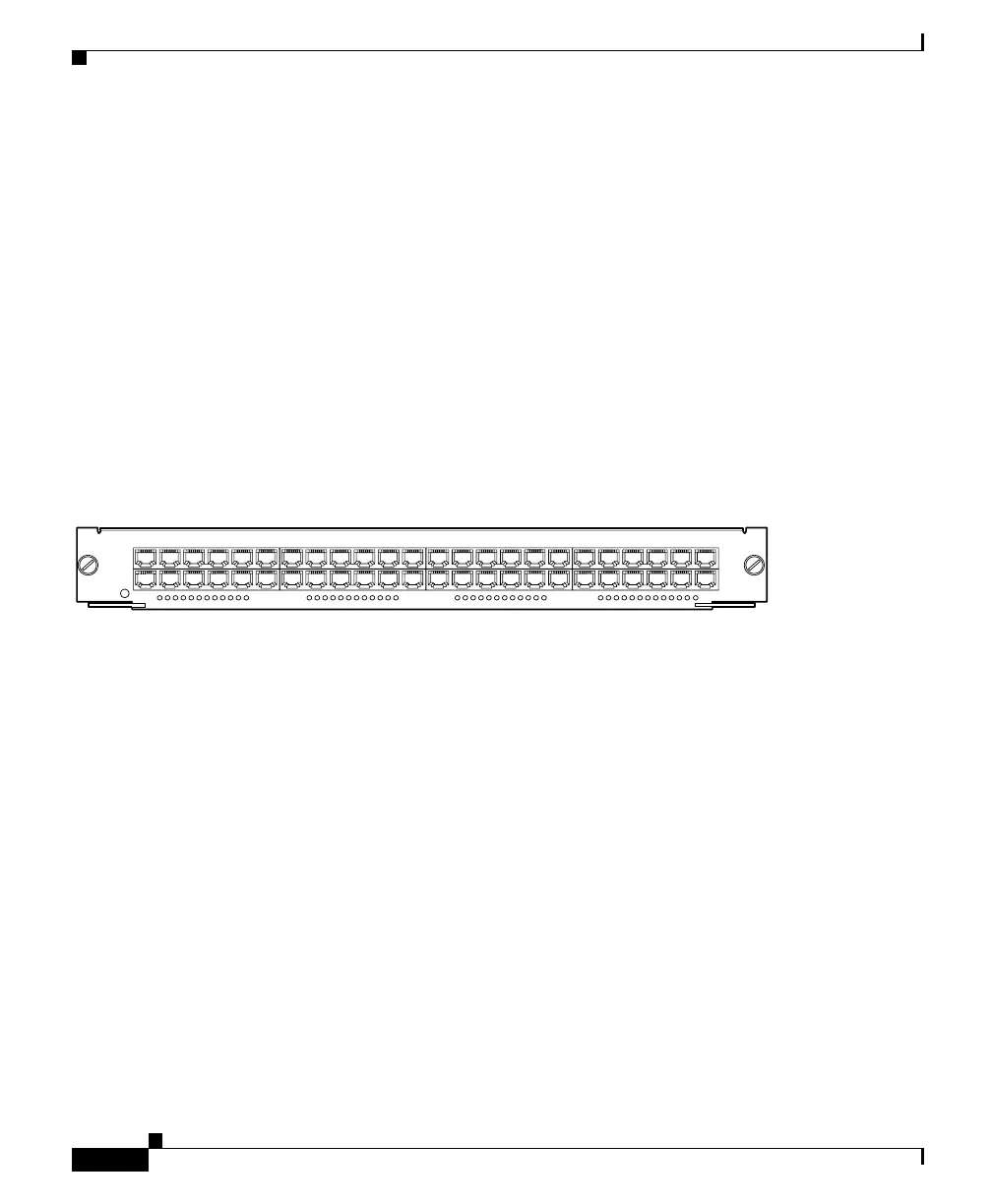

Figure 1-22 48-Port 10/100BASE-T Fabric-Enabled Ethernet Switching Module (WS-X6548-RJ-45)
The front panel LEDs are described in Table 1-6 on page 1-47.
63673
48 PORT 10/100 BASE-T
ETHERNET
SWITCHING MODULE
WS-X6548
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
PHONE
STATUS
1
2
11
12
13
14
35
36
37
38
47
48
23
24
25
26
