Chapter 1 Product Overview
Gigabit Ethernet Switching Modules
1-42
Catalyst 6500 Series Switch Module Installation Guide
78-15725-02
1-Port 10-Gigabit Ethernet Base Module (WS-X6502-10GE)
The 1-port 10-Gigabit Ethernet switching module (WS-X6502-10GE) consists of
a 10-Gigabit Ethernet Base Module (WS-X6502-10GE) and an Optical Interface
Module (OIM). (See Figure 1-30.) The following OIMs are currently available:
• WS-G6483 10GBASE-ER Serial 1550-nm Extended Reach OIM
• WS-G6488 10GBASE-LR Serial 1310-nm Long Haul OIM
The WS-G6483 OIM provides one serial 1550-nm 10-Gigabit Ethernet port
through an SC connector. The WS-G6488 OIM provides one serial 1310-nm
10-Gigabit Ethernet port through an SC connector. The switching module is
upgradable to support distributed forwarding with an optional Distributed
Forwarding Card (WS-F6K-DFC). Refer to Table 2-8 and Table 2-9 for OIM
optical specifications.
The QoS port architecture (Rx/Tx) for this module is 1p1q8t/1p2q1t.

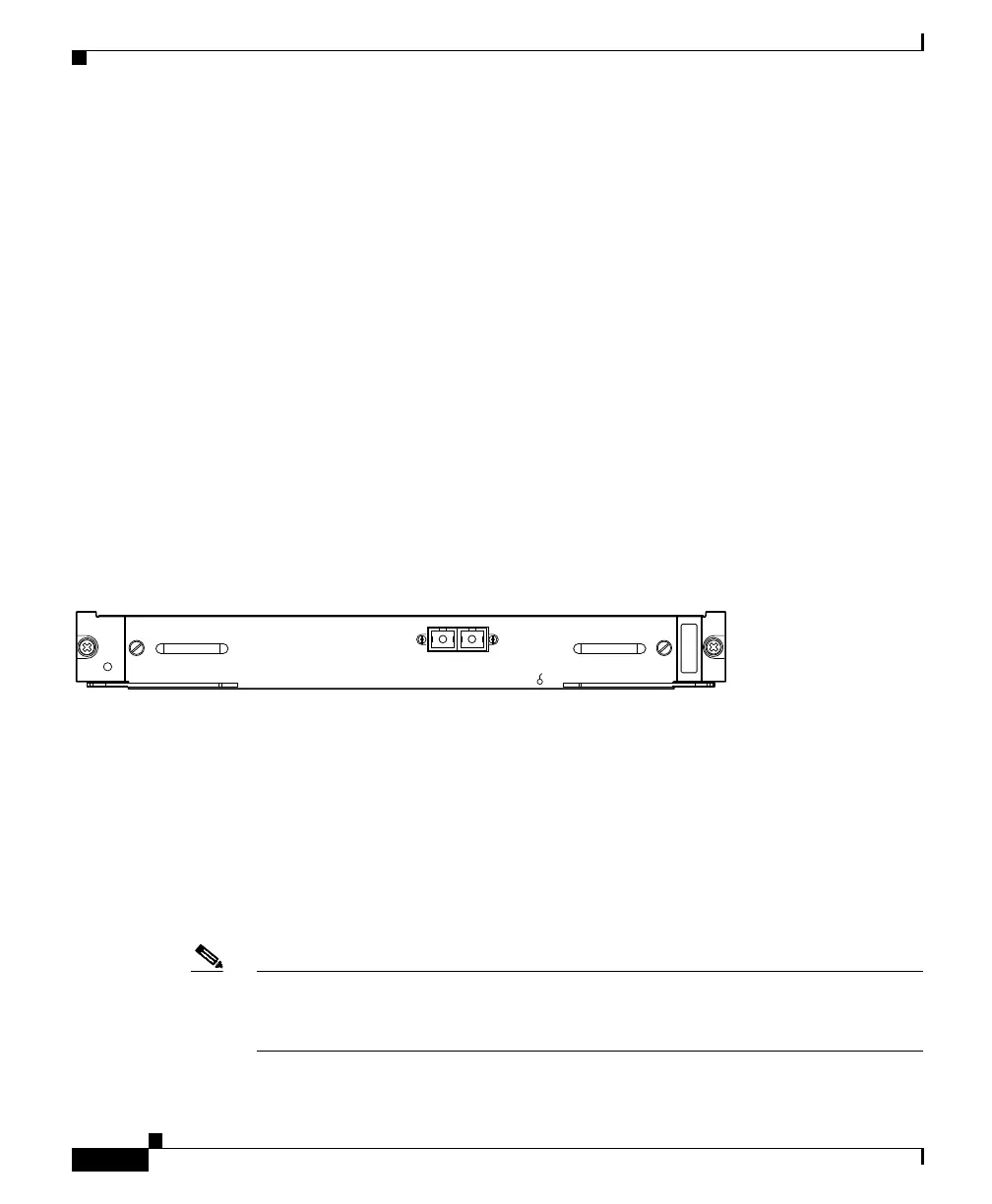

Figure 1-30 1-Port 10-Gigabit Ethernet Base Module (WS-X6502-10GE) with the WS-G6488 OIM
Installed
The front panel LEDs are described in Table 1-6 on page 1-47.
16-Port Gigabit Ethernet Switching Module (WS-X6516-GBIC)
The 16-port Gigabit Ethernet switching module (WS-X6516-GBIC) provides
16 switched, full-duplex Gigabit Ethernet ports that you can configure with any
combination of 1000BASE-SX, LX/LH, and ZX GBICs, copper GBICs, or
CWDM GBICs. (See Figure 1-31.)
Note CWDM GBICs are used with the CWDM Passive Optical System. For more
information on the CWDM Passive Optical System, refer to the Installation Note
for the CWDM Passive Optical System.
73779
WS-X6502 - 10GE WS - G6488
10Gigabit Ethernet 10G BASE - LR Serial 1310nm Optical Interface Module
STATUS
LINK
TX RX
