1-25
Catalyst 6500 Series Switch Module Installation Guide
78-15725-02
Chapter 1 Product Overview
10/100 and 10/100/1000 Ethernet Switching Modules
48-Port 10/100BASE-T Ethernet Switching Module
(WS-X6248-RJ45)
The 48-port 10/100BASE-T Ethernet switching module (WS-X6248-RJ45)
provides 48 switched 10/100-Mbps autosensing, full or half-duplex ports. (See
Figure 1-10.) The 48 ports have RJ-45 connectors for Category 3, Category 5,
Category 5e, or Category 6 UTP or FTP cable.
The QoS port architecture (Rx/Tx) for this module is 1q4t/2q2t.

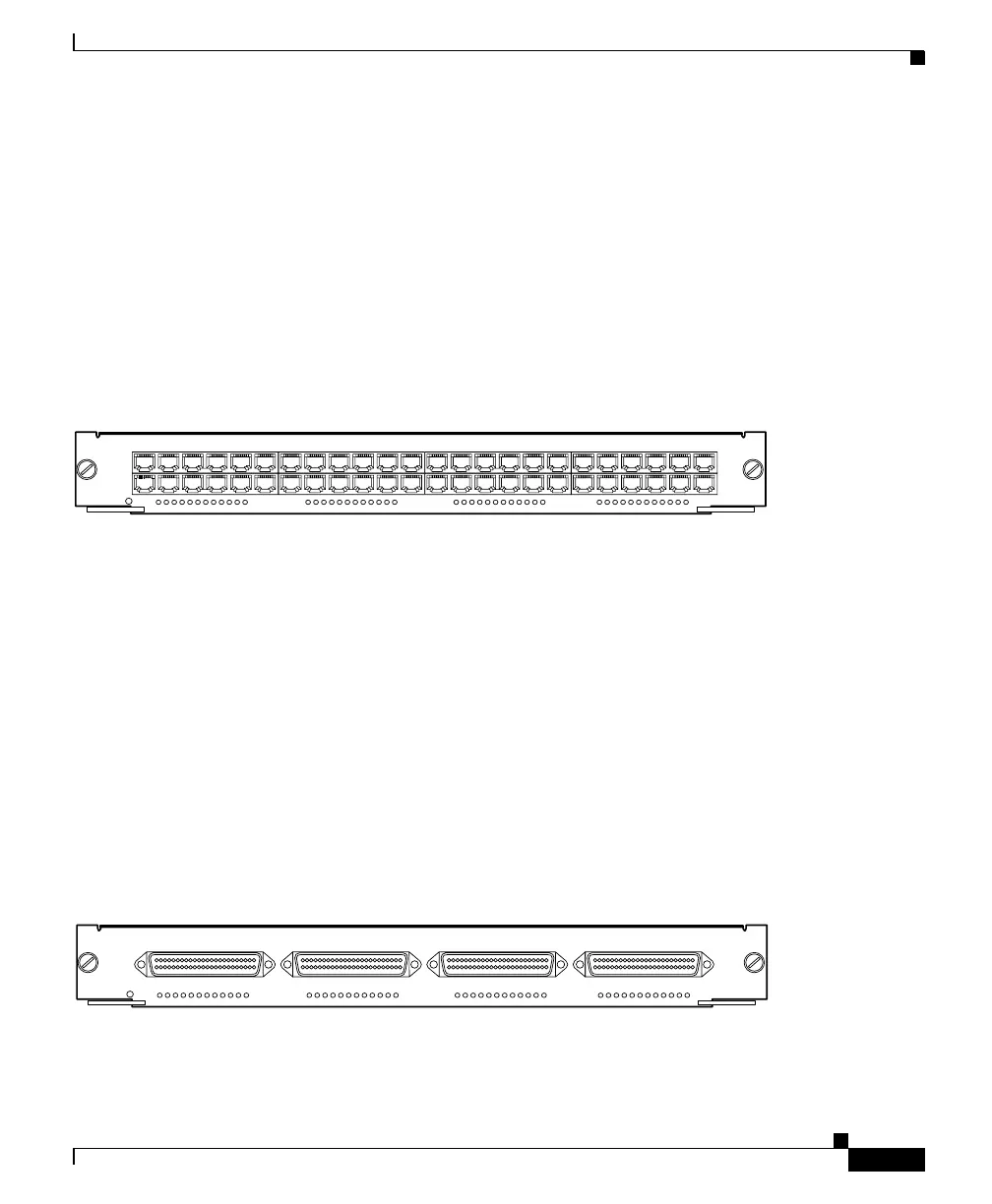

Figure 1-10 48-Port 10/100BASE-TX Ethernet Switching Module (WS-X6248-RJ45)
The front panel LEDs are described in Table 1-6 on page 1-47.
48-Port 10/100BASE-T Ethernet Switching Module
(WS-X6248-TEL)
The 48-port 10/100BASE-T Ethernet switching module (WS-X6248-TEL)
provides 48 switched 10/100-Mbps autosensing, full or half-duplex ports. (See
Figure 1-11.) Four RJ-21 connectors (12 ports per connector) use Category 3,
Category 5, Category 5e, or Category 6 UTP or FTP cable to connect to the
network.
The QoS port architecture (Rx/Tx) for this module is 1q4t/2q2t.
Figure 1-11 48-Port 10/100BASE-T Ethernet Switching Module (WS-X6248-TEL)
The front panel LEDs are described in Table 1-6 on page 1-47.
16791
48 PORT
10/100 BASE-T
ETHERNET SWITCHING
MODULE
WS-X6248-RJ-45
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
1
2
12
14
24
26
36
38
48
18502
48 PORT
10/100 BASE-T
ETHERNET SWITCHING
MODULE
WS-X6248-RJ-TEL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
13-24
1-12
25-36
37-48
