Catalyst 6500 Series Switch Module Installation Guide
78-15725-02
Chapter 1 Product Overview
Gigabit Ethernet Switching Modules

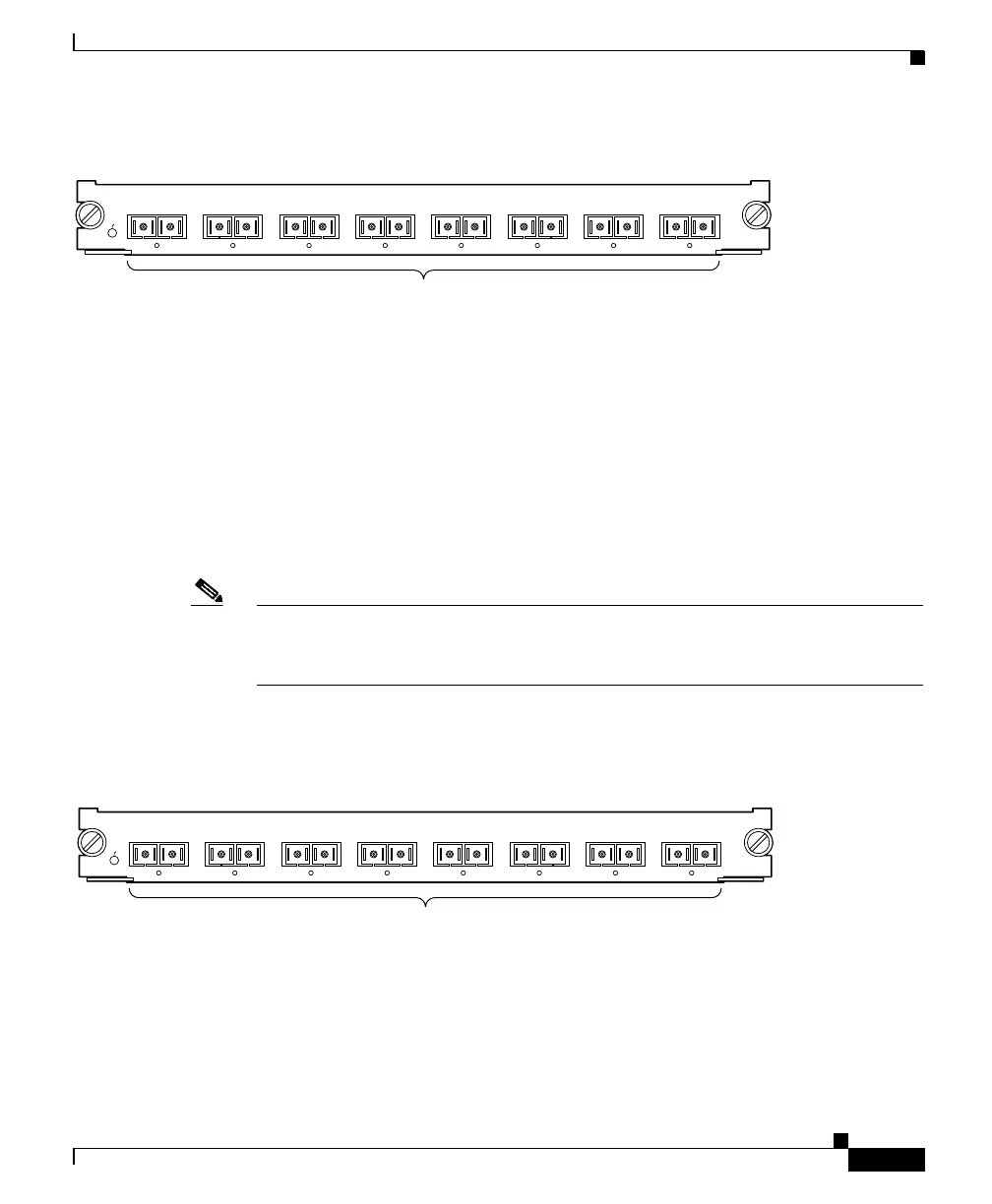

Figure 1-25 8-Port Gigabit Ethernet Switching Module (WS-X6408-GBIC)
The front panel LEDs are described in Table 1-6 on page 1-47.
8-Port Gigabit Ethernet Switching Module (WS-X6408A-GBIC)
The 8-port Gigabit Ethernet switching module (WS-X6408A-GBIC) provides
eight switched, full-duplex Gigabit Ethernet ports that you can configure with any
combination of 1000BASE-SX, LX/LH, and ZX GBICs, copper GBICs, or Coarse
Wave Division Multiplexer (CWDM) GBICs. (See Figure 1-26.) The
WS-X6408A-GBIC module has enhanced QoS features.
Note CWDM GBICs are used with the CWDM Passive Optical System. For more
information on the CWDM Passive Optical System, refer to the Installation Note
for the CWDM Passive Optical System.
The QoS port architecture (Rx/Tx) for this module is 1p1q4t/1p2q2t.
Figure 1-26 8-Port Gigabit Ethernet Switching Module (WS-X6408A-GBIC)
The front panel LEDs are described in Table 1-6 on page 1-47.
16061
8 PORT GIGABIT ETHERNET
WS-X6408
1
LINK
STATUS
2345678
LINK LINK LINK LINK LINK LINK LINK
1000BASE-X GBIC ports
16061
8 PORT GIGABIT ETHERNET
WS-X6408
1
LINK
STATUS
2345678
LINK LINK LINK LINK LINK LINK LINK
1000BASE-X GBIC ports
