Cisco Catalyst 6500 Series Installation Guide

1-49
Catalyst 6500 Series Switch Module Installation Guide
78-15725-02
Chapter 1 Product Overview
ATM Modules
1-Port OC-12 ATM Module (WS-X6101-OC12-MMF)
The 1-port ATM module (WS-X6101-OC12-MMF) provides one direct
connection and one standby connection between the ATM network and the switch
using two multimode, SC, fiber-optic connectors. (See Figure 1-37.)
The CONSOLE PORT allows you to access the switch either locally (with a
console terminal) or remotely (with a modem). The CONSOLE PORT is an
EIA/TIA-232 asynchronous, serial connection with hardware flow control and an
RJ-45 connector.
The CONSOLE PORT mode switch allows you to attach either a terminal or a
modem to the CONSOLE PORT.
Note Use a ballpoint pen tip or other small, pointed object to access the CONSOLE
PORT MODE switch.
Use the CONSOLE PORT MODE switch as follows:
• Mode 1—Switch in the in position (factory default). Use this mode to connect
a terminal to the console port using a console cable and a DTE adapter. You
can also use this mode to connect a modem to the console port.
• Mode 2—Switch in the out position. Use this mode to connect a terminal to
the console port using the Catalyst 5000 family Supervisor Engine III console
cable (not provided).

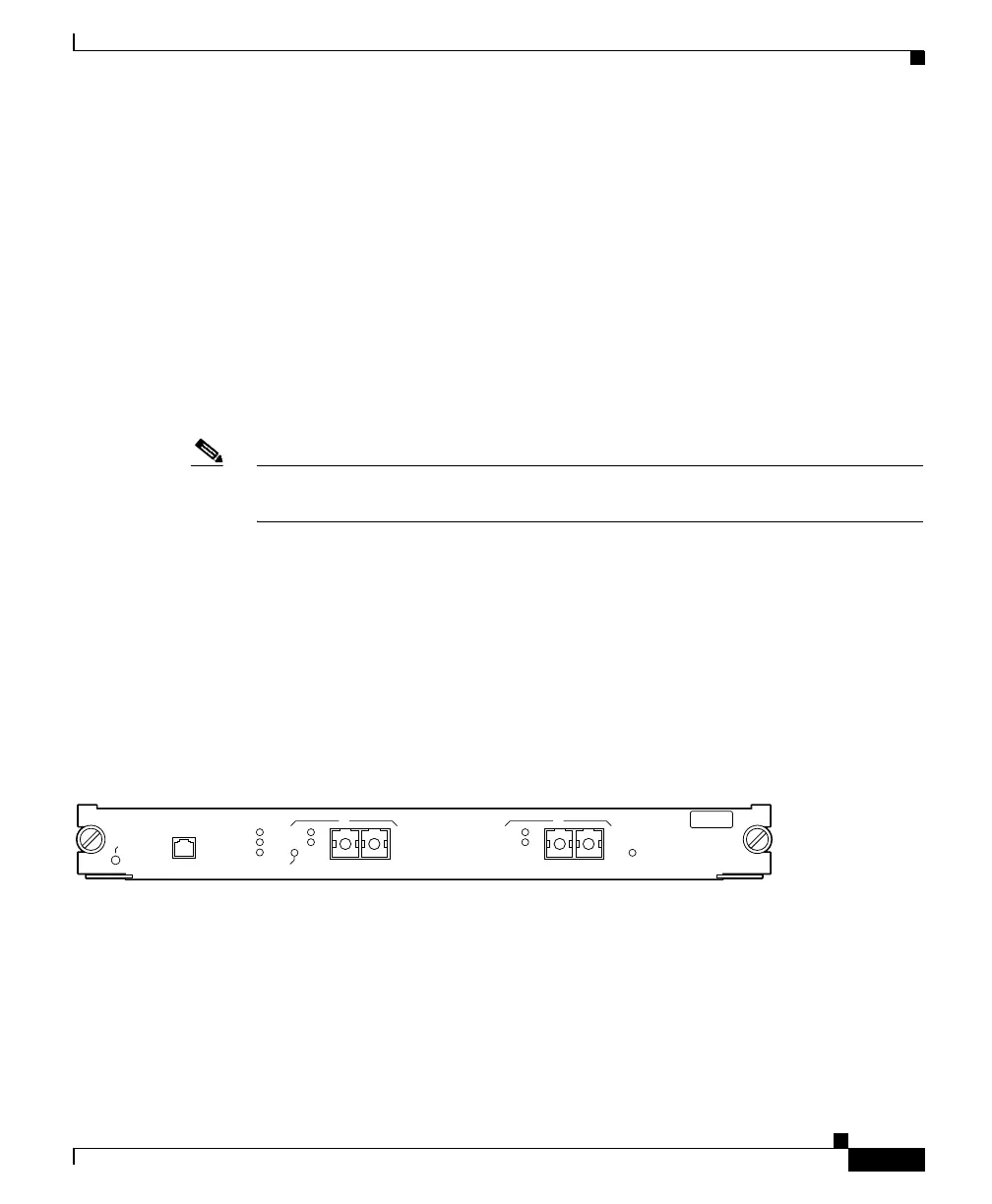

Figure 1-37 ATM OC-12 Module (MMF) (WS-X6101-OC12-MMF)
The front panel LEDs are described in Table 1-7 on page 1-51.
MULTIMODE OC-12 ATM
WS-X6101-OC12-MMF
CONSOLE PORT TX
RX
ACTIVE
SIGNAL
LINK
CONSOLE
PORT
MODE
STATUS
26949
UNI-622MM
A
ACTIVE
SIGNAL
UNI-622MM
B
