Cisco Catalyst 6500 Series Installation Guide

Chapter 1 Product Overview
Multilayer Switch Module (WS-X6302-MSM)
1-54
Catalyst 6500 Series Switch Module Installation Guide
78-15725-02

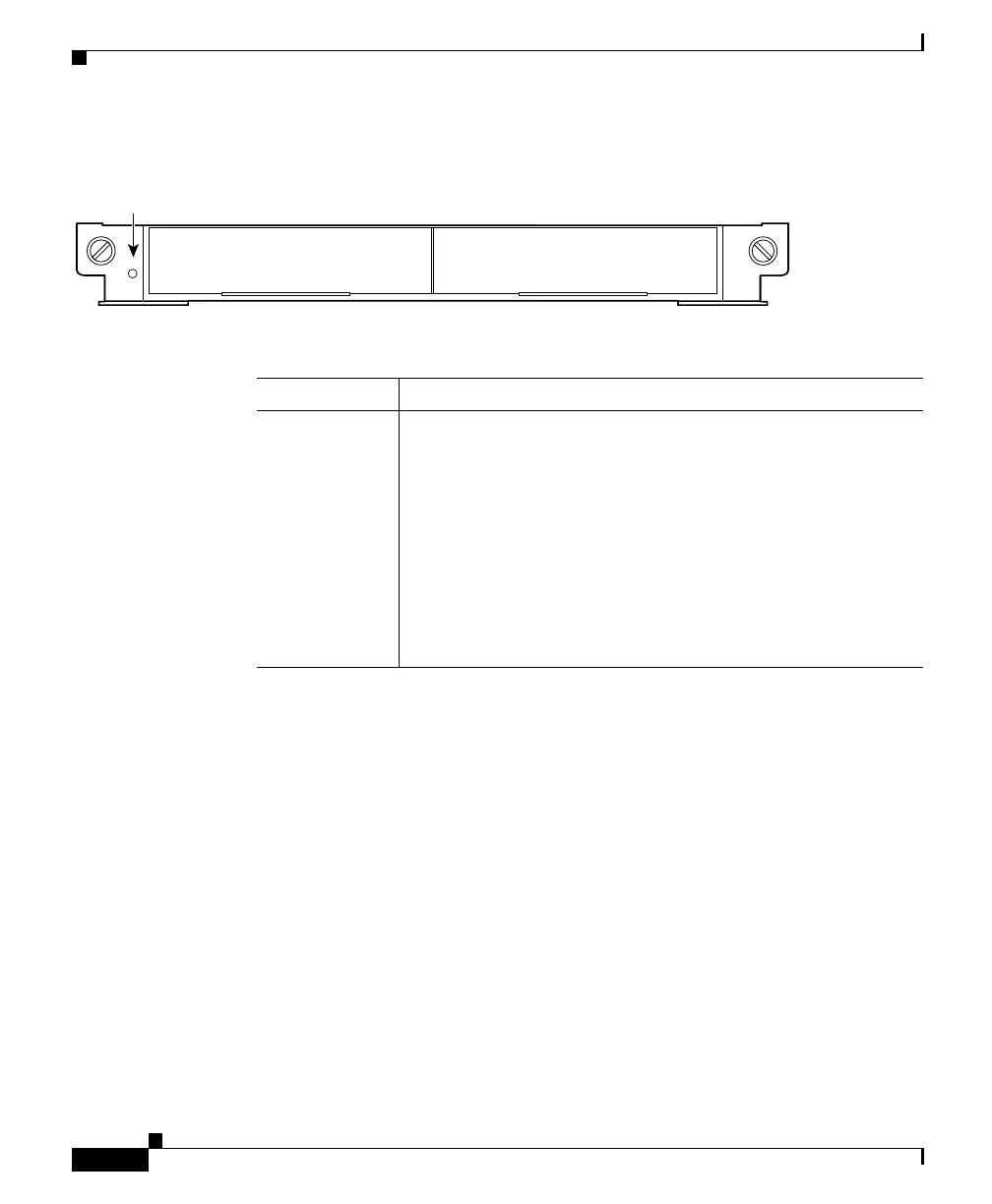

Figure 1-39 FlexWAN Module Front Panel (WS-X6182-2PA)
Multilayer Switch Module (WS-X6302-MSM)
The Multilayer Switch Module (MSM) (WS-X6302-MSM) provides
multiprotocol routing for the switch Ethernet interfaces. Cisco IOS features
available for the MSM are listed in Table 1-10.
Table 1-9 FlexWAN Module STATUS LED
Color/State Description
Green All diagnostics pass; the module is operational.
Orange The module is booting or running diagnostics.
An overtemperature condition has occurred. (A minor
temperature threshold has been exceeded during
environmental monitoring.)
Red A diagnostic test has failed; the module is not operational.
An overtemperature condition has occurred. (A major
temperature threshold has been exceeded during
environmental monitoring.)
STATUS
30178
STATUS LED
