Catalyst 6500 Series Switch Module Installation Guide
78-15725-02
Chapter 1 Product Overview
10/100 and 10/100/1000 Ethernet Switching Modules
48-Port 10/100BASE-T Ethernet Switching Module
(WS-X6348-RJ-45)
The 48-port 10/100BASE-T switching module (WS-X6348-RJ-45) provides
48 switched, 10/100-Mbps autosensing, full- or half-duplex ports. (See
Figure 1-16.) The module has 48 RJ-45 connectors for connection to either
Category 3, Category 5, Category 5e, or Category 6 UTP or FTP cable. This
module can be upgraded with an inline-power daughter card to support IP phones.
The QoS port architecture (Rx/Tx) for this module is 1q4t/2q2t.

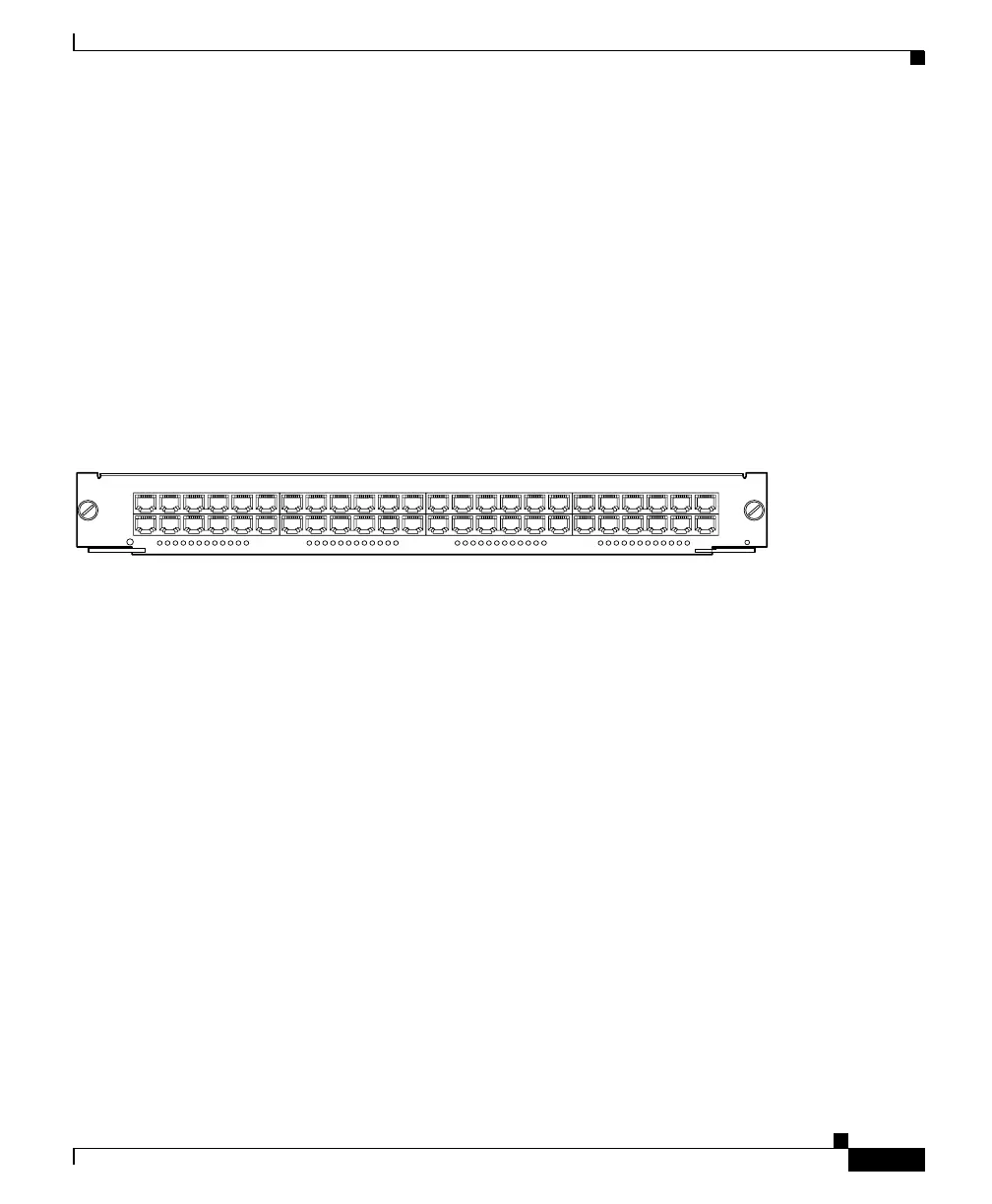

Figure 1-16 48-Port 10/100BASE-T Ethernet Switching Module (WS-X6348-RJ-45)
The front panel LEDs are described in Table 1-6 on page 1-47.
