Gigabit Ethernet Switching Modules
1-44
Catalyst 6500 Series Switch Module Installation Guide
78-15725-02

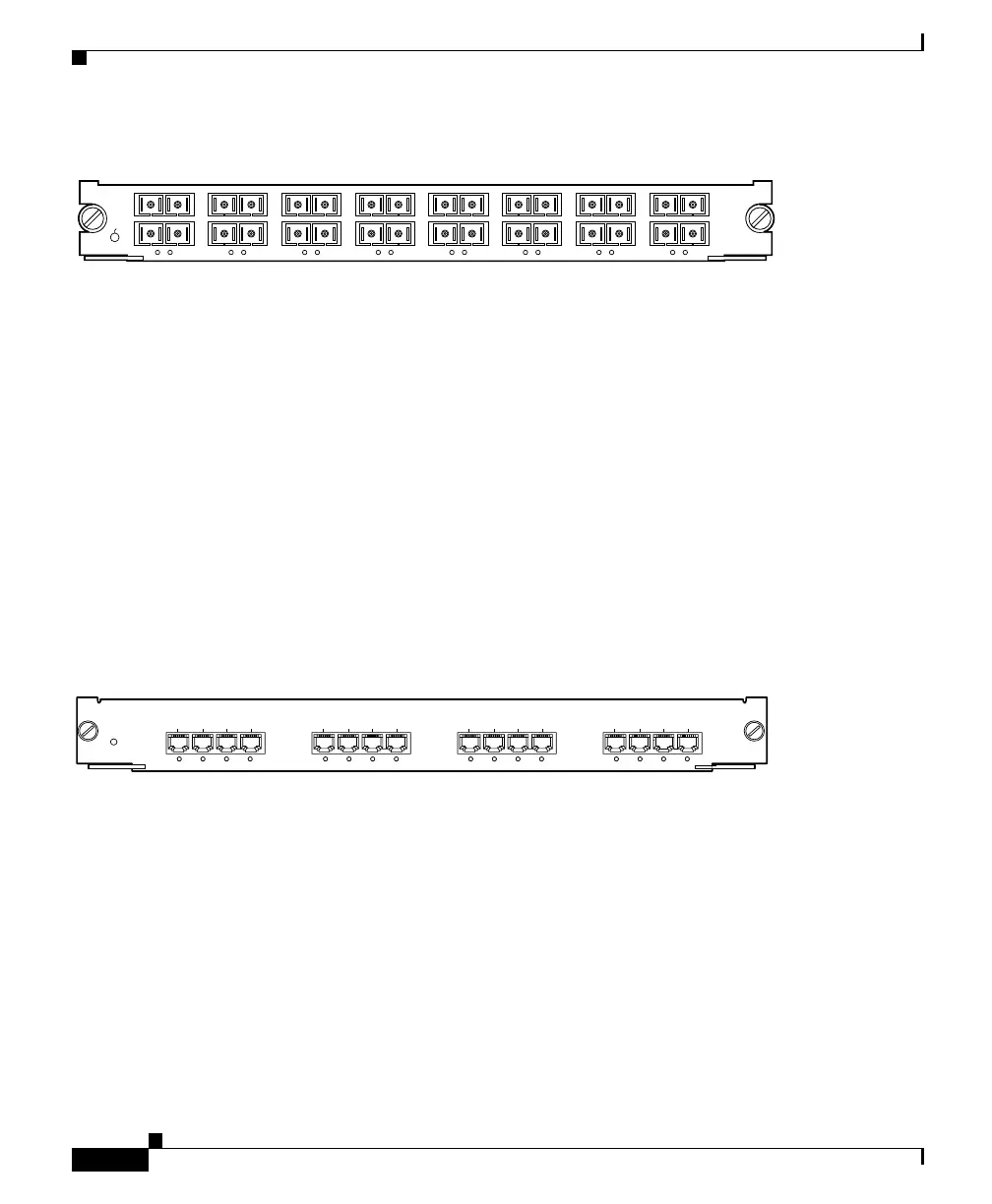

Figure 1-32 16-Port Gigabit Ethernet Switching Module (WS-X6516A-GBIC)
The front panel LEDs are described in Table 1-6 on page 1-47.
16-Port 10/100/1000BASE-T Gigabit Ethernet Switching Module
(WS-X6516-GE-TX)
The 16-port Gigabit Ethernet switching module (WS-X6516-GE-TX) provides
16 switched, 10/100/1000BASE-T Gigabit Ethernet ports. (See Figure 1-33.) The
ports have RJ-45 connectors for Category 5 UTP. The WS-X6516-GE-TX module
has a single fabric channel interface. The switching module is upgradable to
support distributed forwarding by installing an optional Distributed Forwarding
Card (WS-F6K-DFC).
The QoS port architecture (Rx/Tx) for this module is 1p1q4t/1p2q2t.
Figure 1-33 16-Port 10/100/1000BASE-T Gigabit Ethernet Switching Module (WS-X6516-GE-TX)
The front panel LEDs are described in Table 1-6 on page 1-47.
4-Port 10 Gigabit Ethernet Switching Module (WS-X6704-10GE)
The 4-port 10-Gigabit Ethernet switching module (WS-X6704-10GE) provides
4 switched, 10-Gigabit Ethernet ports. (See Figure 1-34.) The four ports support
hot-swappable 10GBASE-LR long-reach or 10GBASE-ER extended reach
XenPak optical transceivers. The WS-X6704-10GE module has dual fabric
channel interface and requires the Supervisor Engine 720.
The QoS port architecture (Rx/Tx) for this module is 1q8t/1p7q8t.
44315
16 PORT GIGABIT ETHERNET
WS-X6516-GBIC
2
S
T
A
T
U
S
LIN
K
LIN
K
1
12
4
LIN
K
LIN
K
3
34
6
LIN
K
LIN
K
5
56
8
LIN
K
LIN
K
7
78
10
LIN
K
LIN
K
9
910
12
LIN
K
LIN
K
11
11
12
14
LIN
K
LIN
K
13
13 14
16
LIN
K
LIN
K
15
15 16
63187
WS-X6516-GE-T X
16 PORT 1000 BASE-T GE
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
LINK
STATUS
LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK
