Chapter 1 Product Overview
10/100 and 10/100/1000 Ethernet Switching Modules
1-24
Catalyst 6500 Series Switch Module Installation Guide
78-15725-02
The QoS port architecture (Rx/Tx) for this module is 1q4t/2q2t.

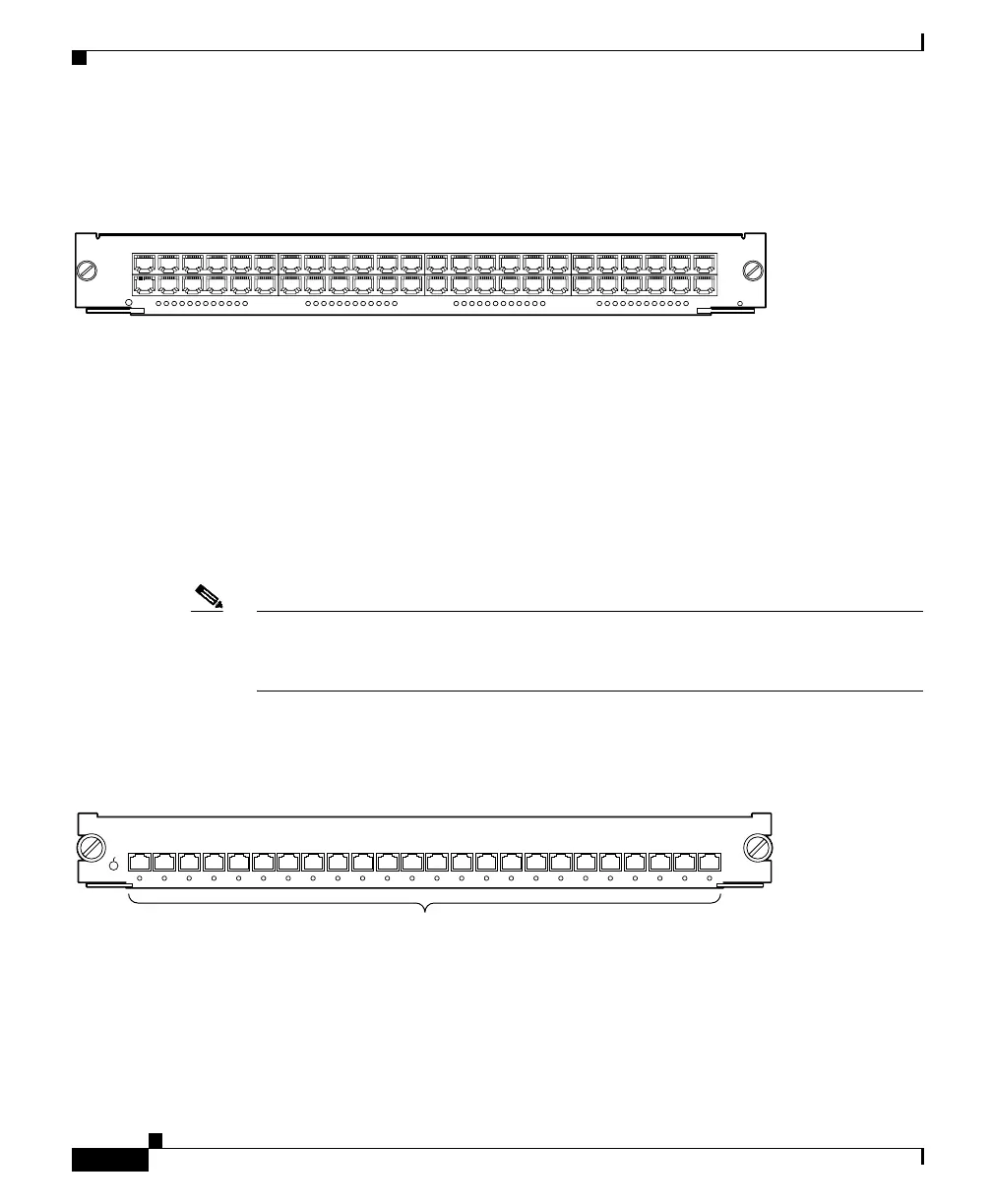

Figure 1-8 48-Port 10/100BASE-T Ethernet Switching Module (WS-X6148-RJ45V)
The front panel LEDs are described in Table 1-6 on page 1-47.
24-Port 100BASE-FX Ethernet Switching Module
(WS-X6224-100FX-MT)
The 24-port 100BASE-FX Etherent switching module (WS-X6224-100FX-MT)
provides 24 switched, 100-Mbps, full or half-duplex ports. (See Figure 1-9.) Ports
have MT-RJ optical connectors for connection to MMF optical cable.
Note This module is a Class 1 laser product. Refer to the Regulatory Compliance and
Safety Information for the Catalyst 6500 Series Switches for information on
working with lasers.
The QoS port architecture (Rx/Tx) for this module is 1q4t/2q2t.
Figure 1-9 24-Port 100BASE-FX Ethernet Switching Module (WS-X6224-100FX-MT)
The front panel LEDs are described in Table 1-6 on page 1-47.
39334
48 PORT
10/100 BASE-T
ETHERNET SWITCHING
MODULE
WS-X6348-RJ-45V
STATUS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
1
11
2
12
14
13
24
26
36
38
48
23
25
35
37
47
PHONE
24 PORT 100FX
WS-X6224
1
LINK
2
LINK
3
LINK
4
LINK
5
LINK
6
LINK
7
LINK
8
LINK
9
LINK
10
LINK
11
LINK
12
LINK
13
LINK
14
LINK
15
LINK
16
LINK
17
LINK
18
LINK
19
LINK
20
LINK
21
LINK
22
LINK
23
LINK
24
LINK
STATUS
16063
100BASE-FX ports
