Catalyst 6500 Series Switch Module Installation Guide
78-15725-02
Chapter 1 Product Overview
10/100 and 10/100/1000 Ethernet Switching Modules

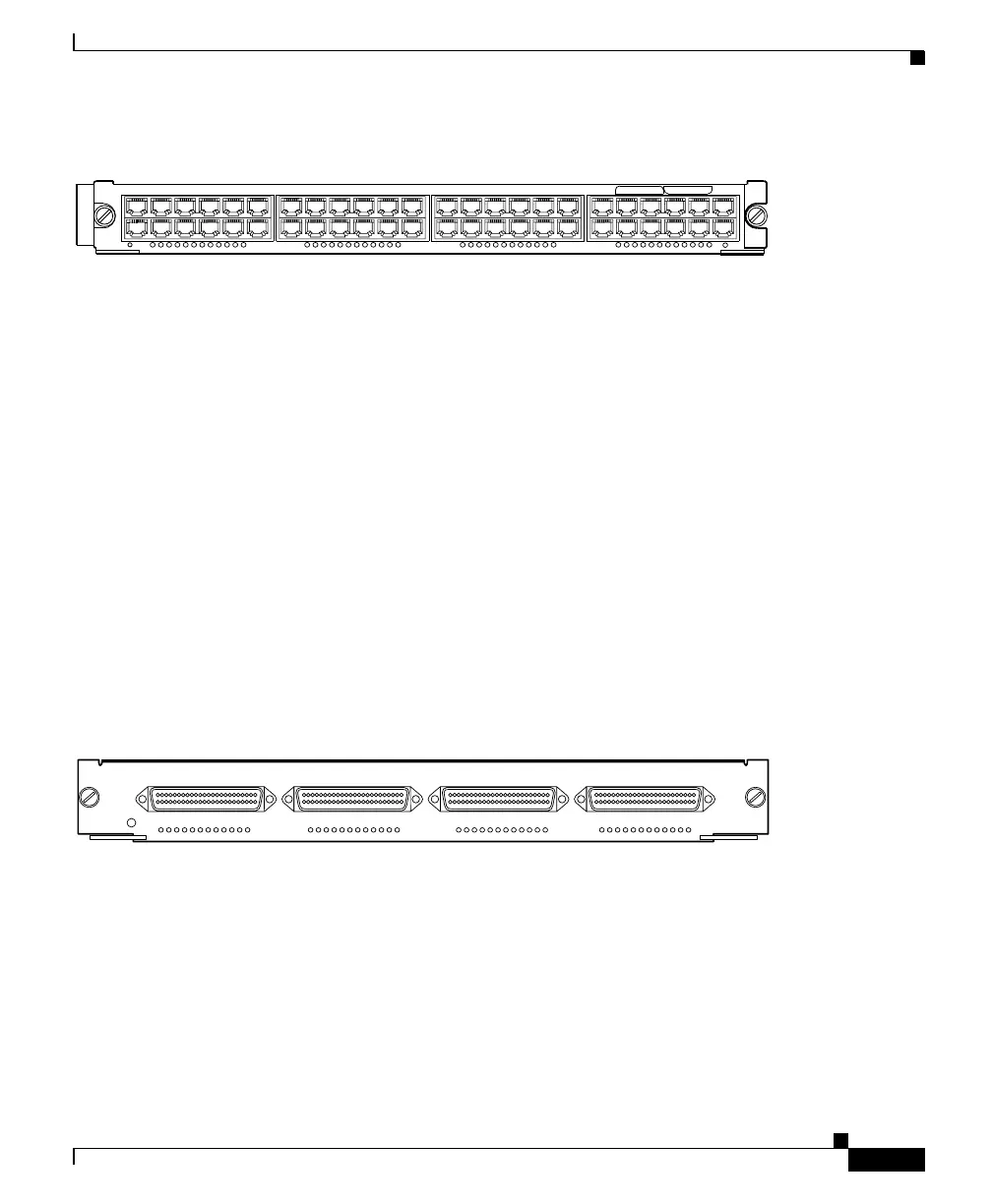

Figure 1-20 48-Port 10/100/1000BASE-T Ethernet Switching Module (WS-X6548V-GE-TX)
The front panel LEDs are described in Table 1-6 on page 1-47.
48-Port 10/100BASE-T Fabric-Enabled Ethernet Switching
Module (WS-X6548-RJ-21)
The 48-port 10/100BASE-T switching module (WS-X6548-RJ-21) provides 48
switched, 10/100-Mbps, full- or half-duplex ports. (See Figure 1-21.) The module
has 4 RJ-21 connectors (12 ports per connector) for Category 5, Category 5e, or
Category 6 cable. The WS-X6548-RJ-21 module has 1-MB per-port packet
buffers and a single fabric channel interface. The switching module is upgradable
to support distributed forwarding with an optional Distributed Forwarding Card
(WS-F6K-DFC). The WS-X6548-RJ-21 module is auto-MDI/MDIX capable; you
can use either straight or crossover cable, and the module will automatically
detect and adjust for the cable type.
The QoS port architecture (Rx/Tx) for this module is 1p1q0t/1p3q1t.
Figure 1-21 48-Port 10/100BASE-T Fabric-Enabled Ethernet Switching Module (WS-X6548-RJ-21)
The front panel LEDs are described in Table 1-6 on page 1-47.
