Chapter 1 Product Overview
Network Analysis Modules
1-62
Catalyst 6500 Series Switch Module Installation Guide
78-15725-02

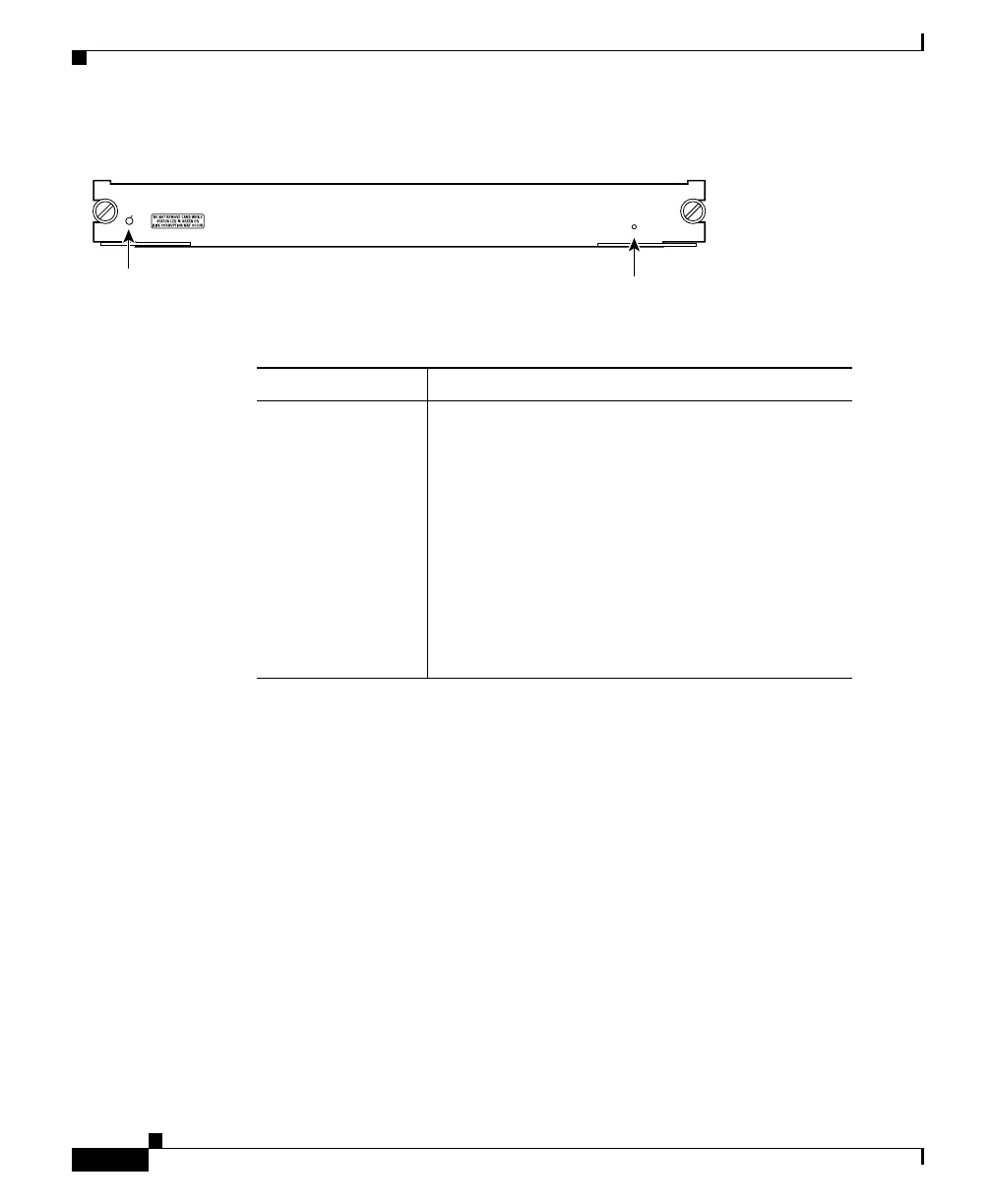

Figure 1-42 Network Analysis Module (WS-SVC-NAM-2)
The SHUTDOWN button is used to manually shutdown the NAM. To prevent
corruption of the NAM, it is critical that the NAM run through the shutdown
procedure before shutting off. If the NAM fails to respond to CLI or NAM
shutdown commands, you can use the SHUTDOWN button as an alternative
shutdown method.
For information on NAM module hardware and software requirements and port
adapter installation and configuration, refer to the Catalyst 6500 Series Network
Analysis Module Installation and Configuration Note.
Table 1-13 NAM-2 Module STATUS LED Description
Color/State Description
Green All diagnostic tests pass. The NAM is operational.
Red A diagnostic other than an individual port test
failed.
Orange Indicates one of three conditions:
• The NAM is running through its boot and
self-test diagnostic sequence.
• The NAM is disabled.
• The NAM is in the shutdown state.
Off The NAM is powered off.
NETWORK ANALYSIS MODULE
SHUTDOWN
WS-SVC-NAM-2
STATUS
73753
STATUS LED
SHUTDOWN button
