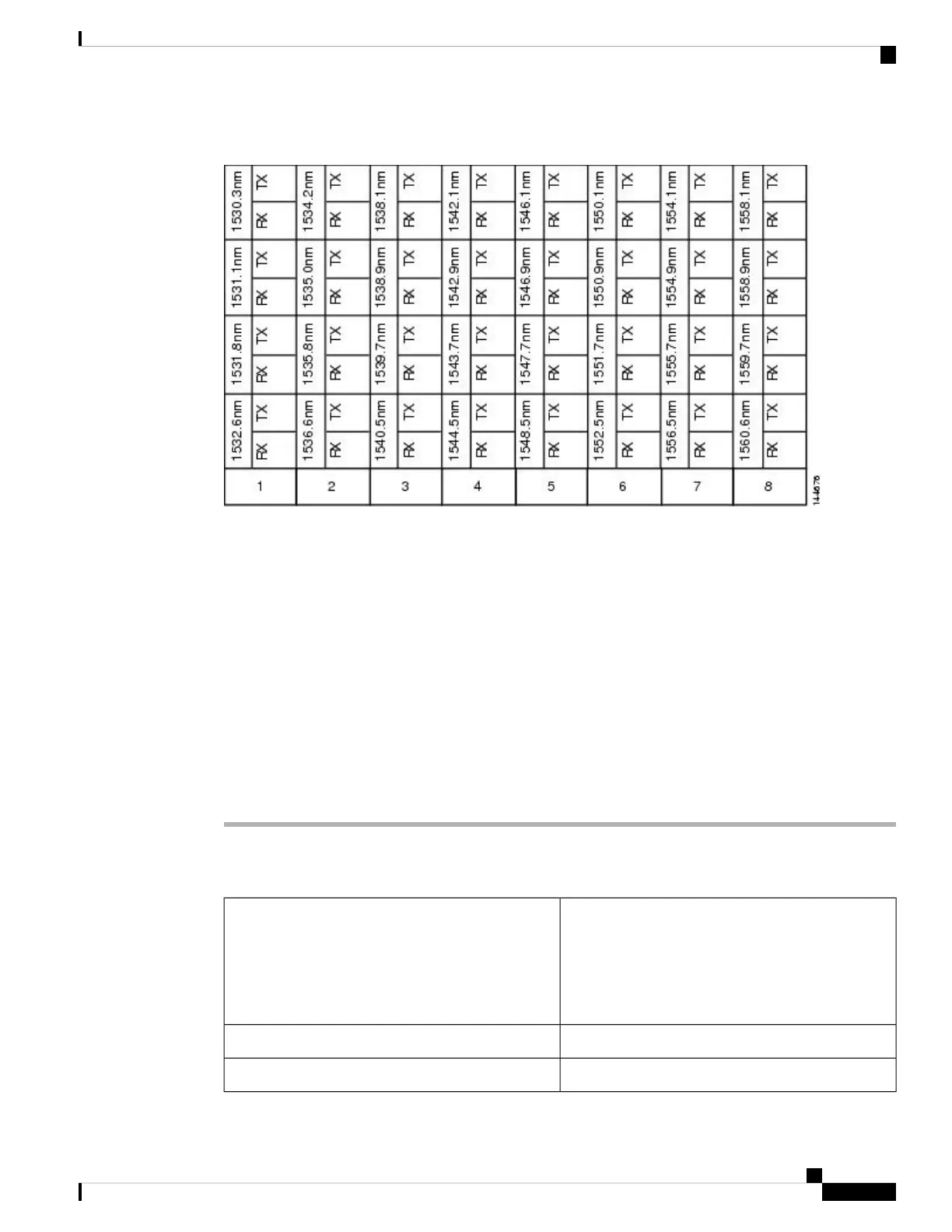

Figure 9: Deep Patch Panel Port Wavelengths
Step 8 At the adjacent 32DMX or 32DMX-O card in the same side of the shelf, plug the MPO connector labeled 1
TX on the MPO cable (Figure 4: MPO Cable, on page 36) into the top Drop TX (30.3–36.6) port of the card
(Figure 9: Deep Patch Panel Port Wavelengths, on page 43).
Step 9 Plug the MPO connector labeled 2-TX into the Drop TX (38.1–44.5) port on the card.
Step 10 Plug the MPO connector labeled 3-TX into the Drop TX (46.1–52.5) port on the card.
Step 11 Plug the MPO connector labeled 4-TX into the Drop TX (54.1–60.6) port on the card.
When you close the patch panel tray, the cables must not be pinched, and the cable bend radius
must be equal to or greater than the minimum radius that is recommended in your site specifications.
As you route each cable through the patch panel tray, make sure that adequate cable slack remains.
Caution
Step 12 For a hub or ROADM node, repeat Steps 2 through 11 to cable the other side of the shelf to the second patch
panel. For a terminal node, go to Step 13.
Step 13 Return to your originating procedure (NTP).
DLP-G427 Rerouting Fiber-Optic Cables in the 40-Channel Patch Panel Tray
This task reroutes the MPO cables that are preinstalled
in the 40-channel patch panel tray. The cables exit to
the left when shipped; this task reroutes the cables out
of the right side of the tray. Use this task when you
want to connect these MPO cables to cards installed
on the right side of the shelf.
Purpose
#2 Phillips screwdriverTools/Equipment
NonePrerequisite Procedures
Turning Up a Node
43
Turning Up a Node
DLP-G427 Rerouting Fiber-Optic Cables in the 40-Channel Patch Panel Tray
