6 Address Management
6-4
VPN 3000 Concentrator Series User Guide
Add / Modify / Delete
To configure a new IP address pool, click Add. The Manager opens the Configuration | System | Address
Management | Pools | Add
screen.
To modify an IP address pool that has been configured, select the pool from the list and click
Modify. The
Manager opens the
Configuration | System | Address Management | Pools | Modify screen.
To delete an IP address pool that has been configured, select the pool from the list and click
Delete. There
is no confirmation or undo. The Manager refreshes the screen and shows the remaining pools in the list.
Reminder: The Manager immediately includes your changes in the active configuration. To save the active
configuration and make it the boot configuration, click the
Save Needed icon at the top of the Manager
window.
Configuration | System | Address Management | Pools |
Add or Modify
These screens let you:
Add a new pool of IP addresses from which the VPN Concentrator assigns addresses to clients.
Modify an IP address pool that you have previously configured.
The IP addresses in the pool range must not be assigned to other network resources.

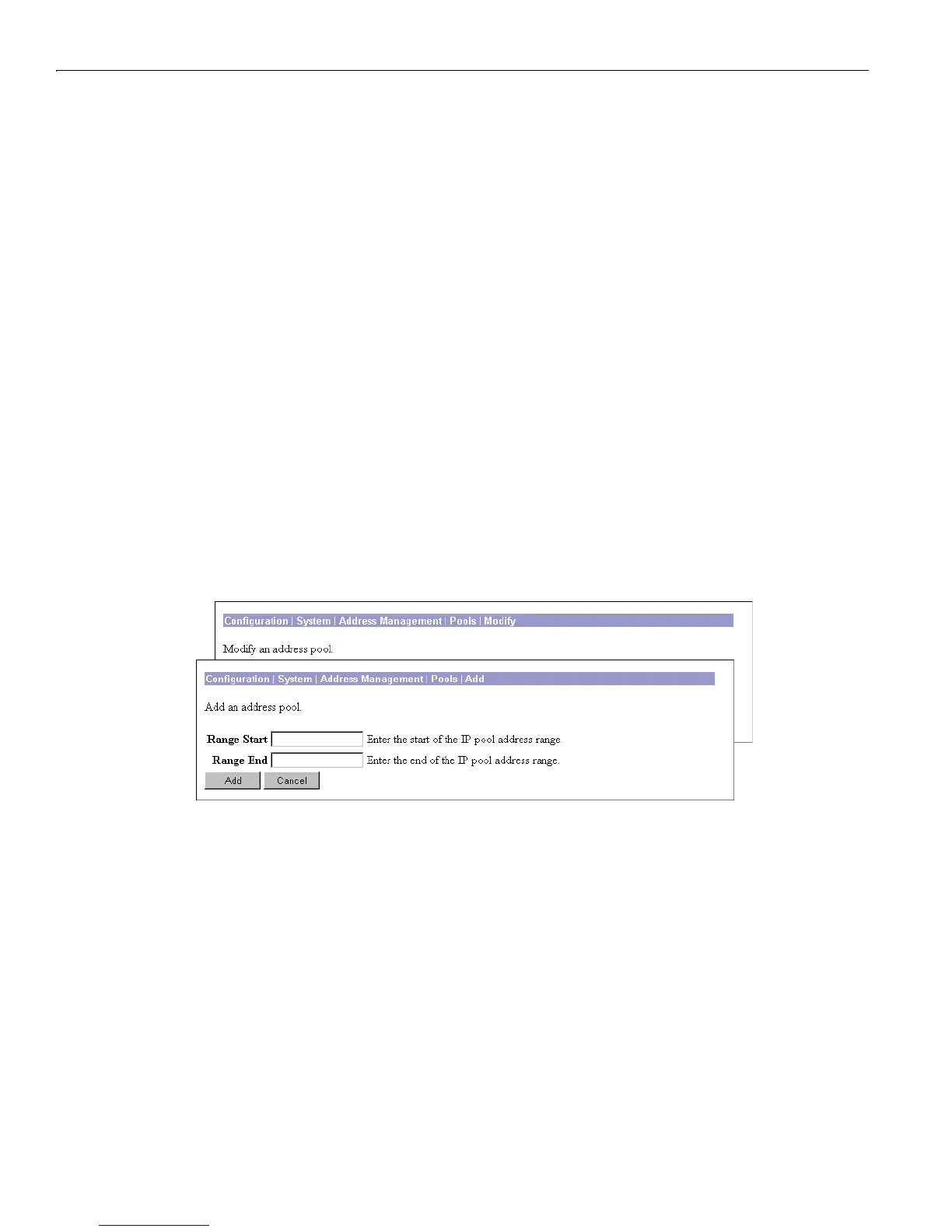

Figure 6-4: Configuration | System | Address Management | Pools | Add or Modify screen
Range Start
Enter the first IP address available in this pool. Use dotted decimal notation; e.g., 10.10.147.100.
Range End
Enter the last IP address available in this pool. Use dotted decimal notation; e.g., 10.10.147.177.
