Monitor | System Status | Dual T1/E1 WAN Slot N
This screen displays status and statistics for a VPN Concentrator WAN module. To configure a WAN
module interface, see
Configuration | Interfaces.

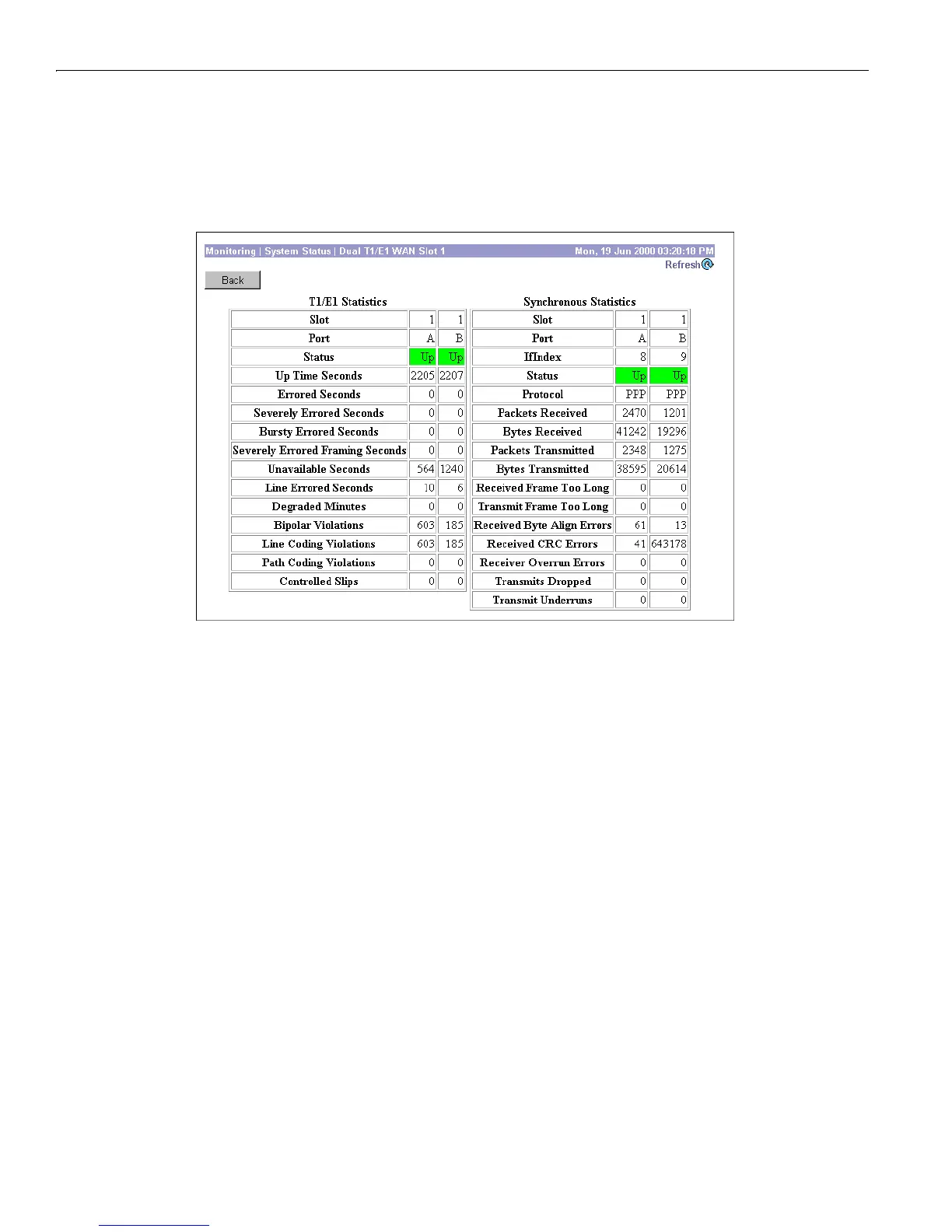

Figure 15-6: Monitor | System Status | Dual T1/E1 WAN Slot N screen
Refresh
To update the screen and its data, click Refresh. The date and time indicate when the screen was last
updated.
Back
To return to the Monitor | System Status screen, click Back.
T1/E1 Statistics
This table shows statistics for the physical T1/E1 interface ports, with a column of statistics for each
configured port. RFC 1406 defines most T1/E1 errors.
Slot
The physical slot in the VPN Concentrator (1 through 4) that houses the WAN module.
