Monitor | System Status | LED Status
15-25
VPN 3000 Concentrator Series User Guide
Monitor | System Status | LED Status
Model
30153080 only
This screen shows the status of VPN Concentrator front-panel LED indicators, exactly as they appear on
the unit itself. LED indicators on the VPN Concentrator are normally green, and the usage graph LEDs
are blue. LEDs that are amber, red, or off may indicate an error condition. See Appendix A, Errors and
troubleshooting for descriptions of the LEDs.
The usage graph displays
CPU Utilization, Active Sessions, or Throughput, according to the selection you
make with the front-panel button. You can press the front-panel button either physicallyon the unit
itselfor logicallyon this screen. See
Monitor | System Status for an explanation of usage graph units.

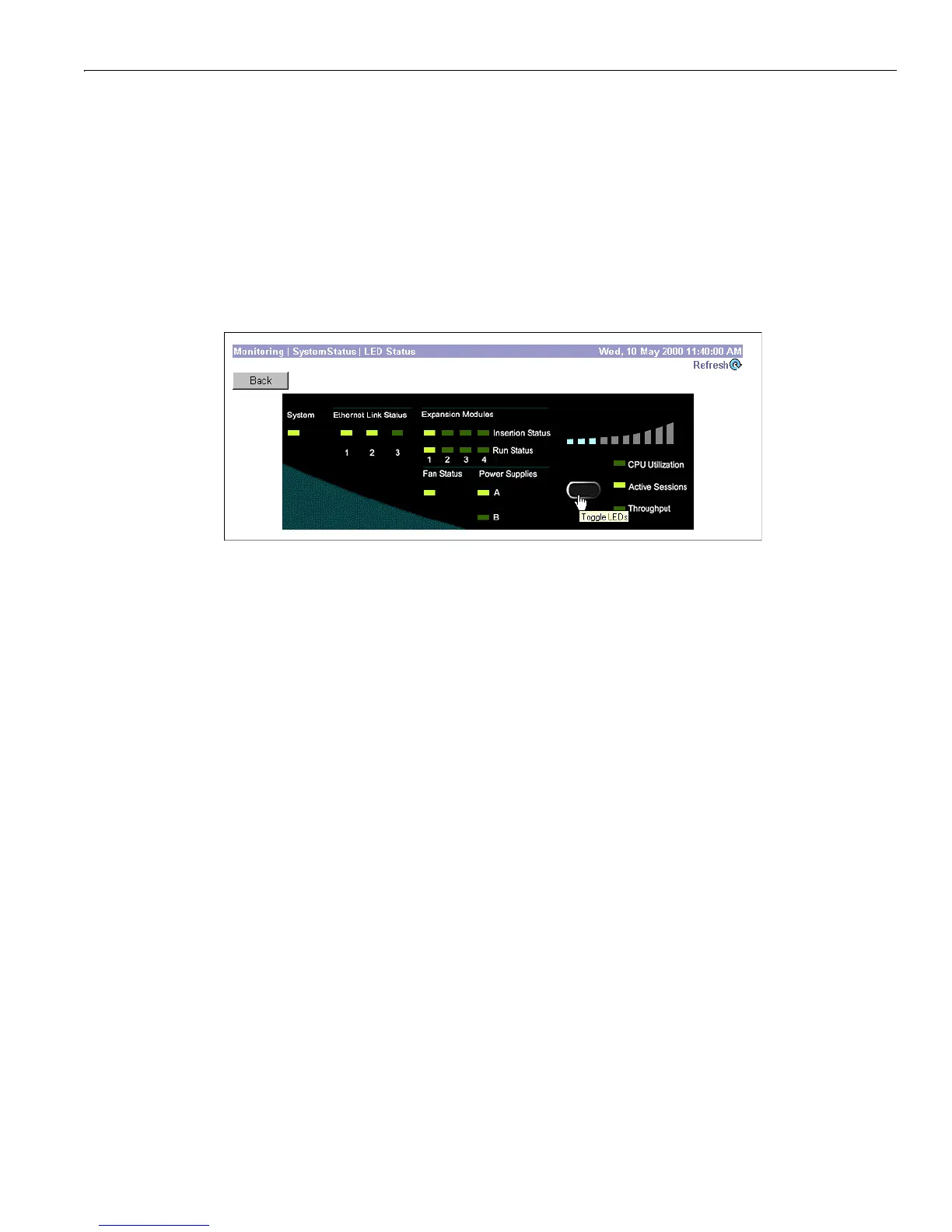

Figure 15-9: Monitor | System Status | LED Status screen
Refresh
To update the screen and its data, click Refresh. The date and time indicate when the screen was last
updated.
[LED selector button]
To toggle the usage graph LEDs, click the front-panel button on this screen. Clicking the button here also
changes the selection on the VPN Concentrator itself.
