Bar Graph
The percentage of sessions using this SEP module relative to the total active sessions, as a horizontal bar
graph. Each segment of the bar in the column heading represents 25%.
Percentage
The percentage of sessions using this SEP module relative to the total active sessions, as a number. The
sum of this column equals 100% (rounded).
Monitor | Sessions | Encryption
This screen graphically displays the data encryption algorithms used by currently active user and
administrator sessions on the VPN Concentrator.

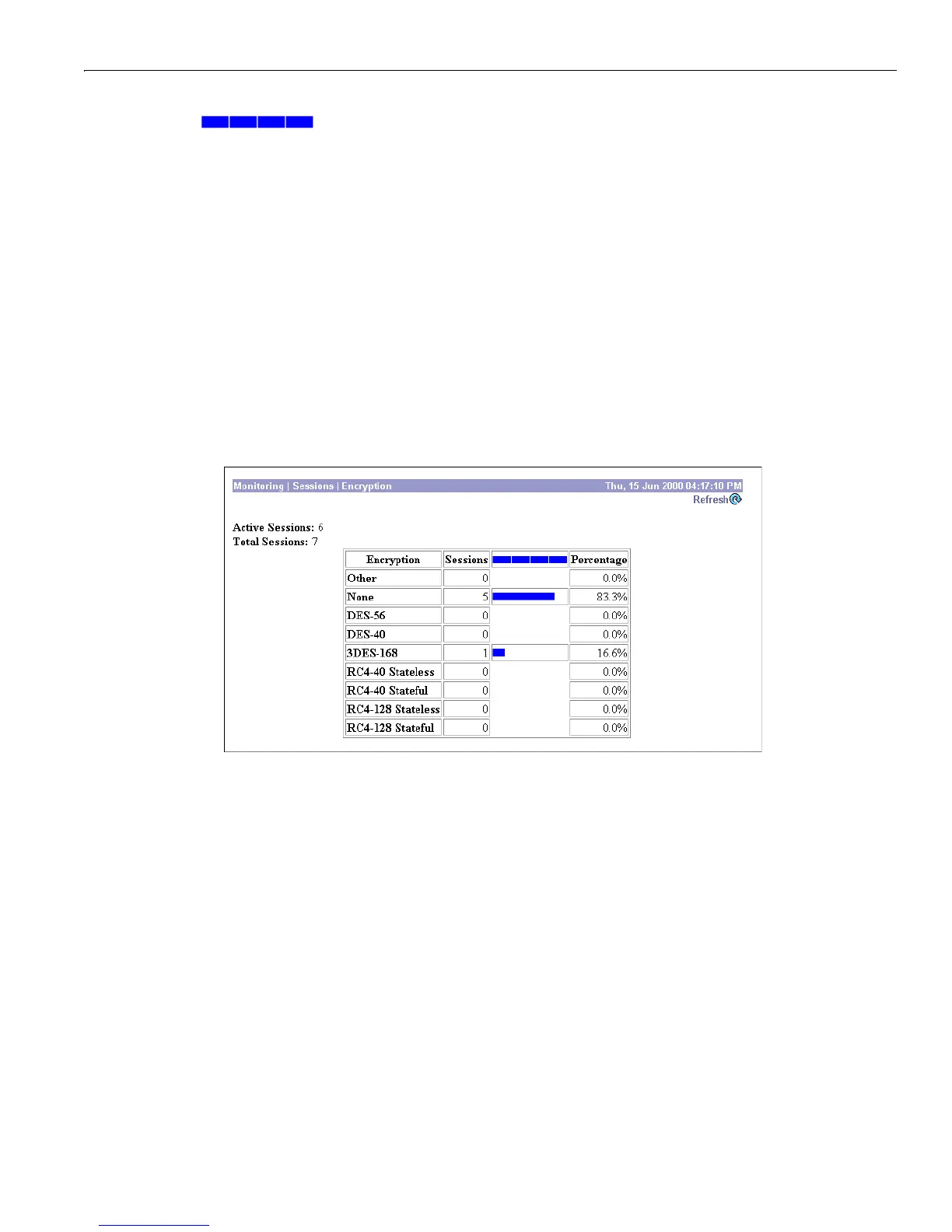

Figure 15-19: Monitor | Sessions | Encryption screen
Refresh
To update the screen and its data, click Refresh. The date and time indicate when the screen was last
updated.
Active Sessions
The number of currently active sessions.
Total Sessions
The total number of sessions since the VPN Concentrator was last booted or reset.
