15 Monitoring
15-66
VPN 3000 Concentrator Series User Guide
Monitor | Statistics | Authentication
This screen shows statistics for user authentication activity on the VPN Concentrator since it was last
booted or reset.
To configure the VPN Concentrator to communicate with authentication servers, see the
Configuration |
System | Servers | Authentication
screens.

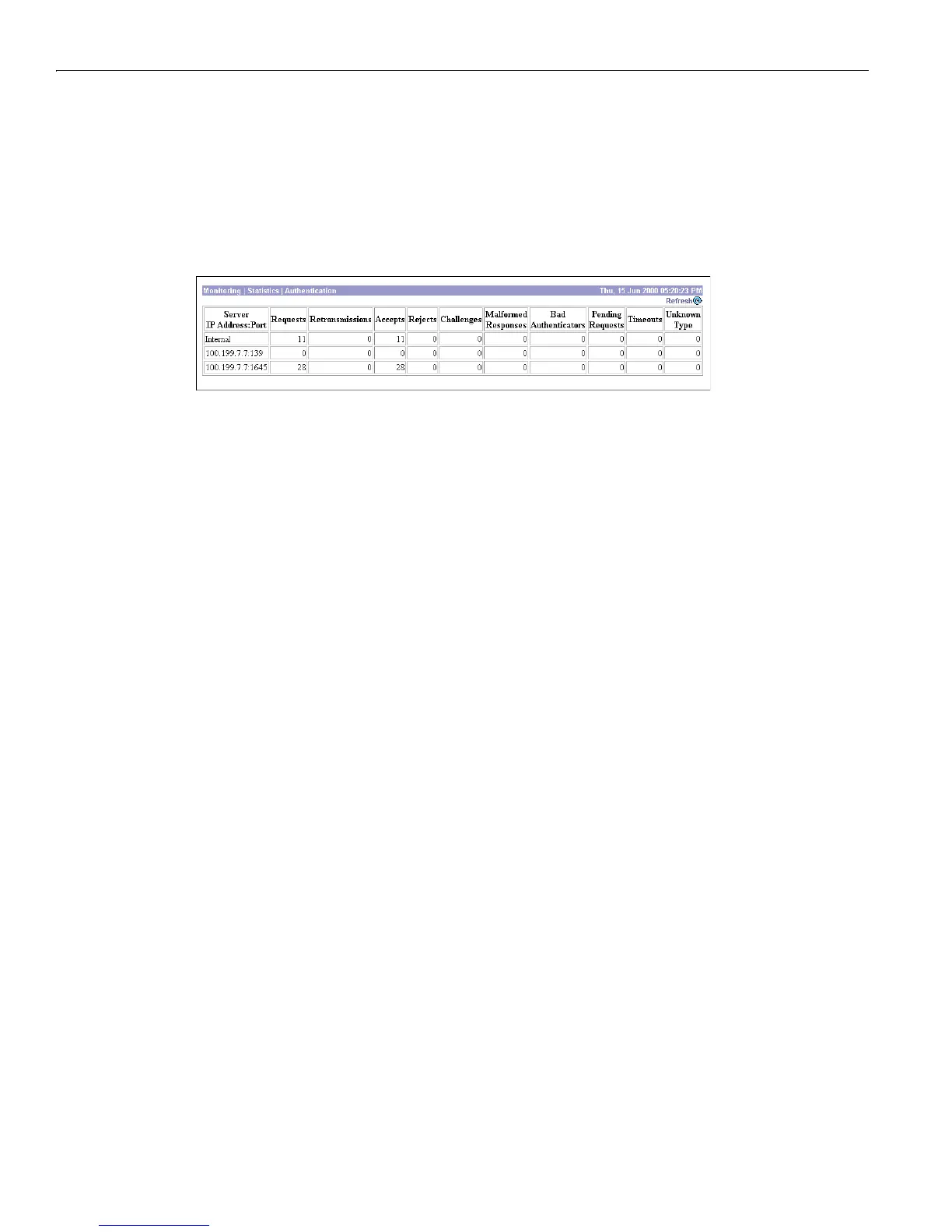

Figure 15-32: Monitor | Statistics | Authentication screen
Refresh
To update the screen and its data, click Refresh. The date and time indicate when the screen was last
updated.
Server IP Address:Port
The IP address of the configured authentication server, and the port number that the VPN Concentrator
is using to access the server. Each configured authentication server is a row in this table.
Internal
identifies the internal VPN Concentrator authentication server.
The default, or well-known, port numbers identify an authentication server type:
139 = NT Domain
389 = LDAP
1645 = RADIUS
5500 = SDI
Requests
The total number of authentication request packets sent to this server. This number does not include
retransmissions.
Retransmissions
The number of authentication request packets retransmitted to this server.
Accepts
The number of authentication acceptance packets received from this server.
