Configuration | System | Tunneling Protocols | IPSec LAN-to-LAN
7-9
VPN 3000 Concentrator Series User Guide

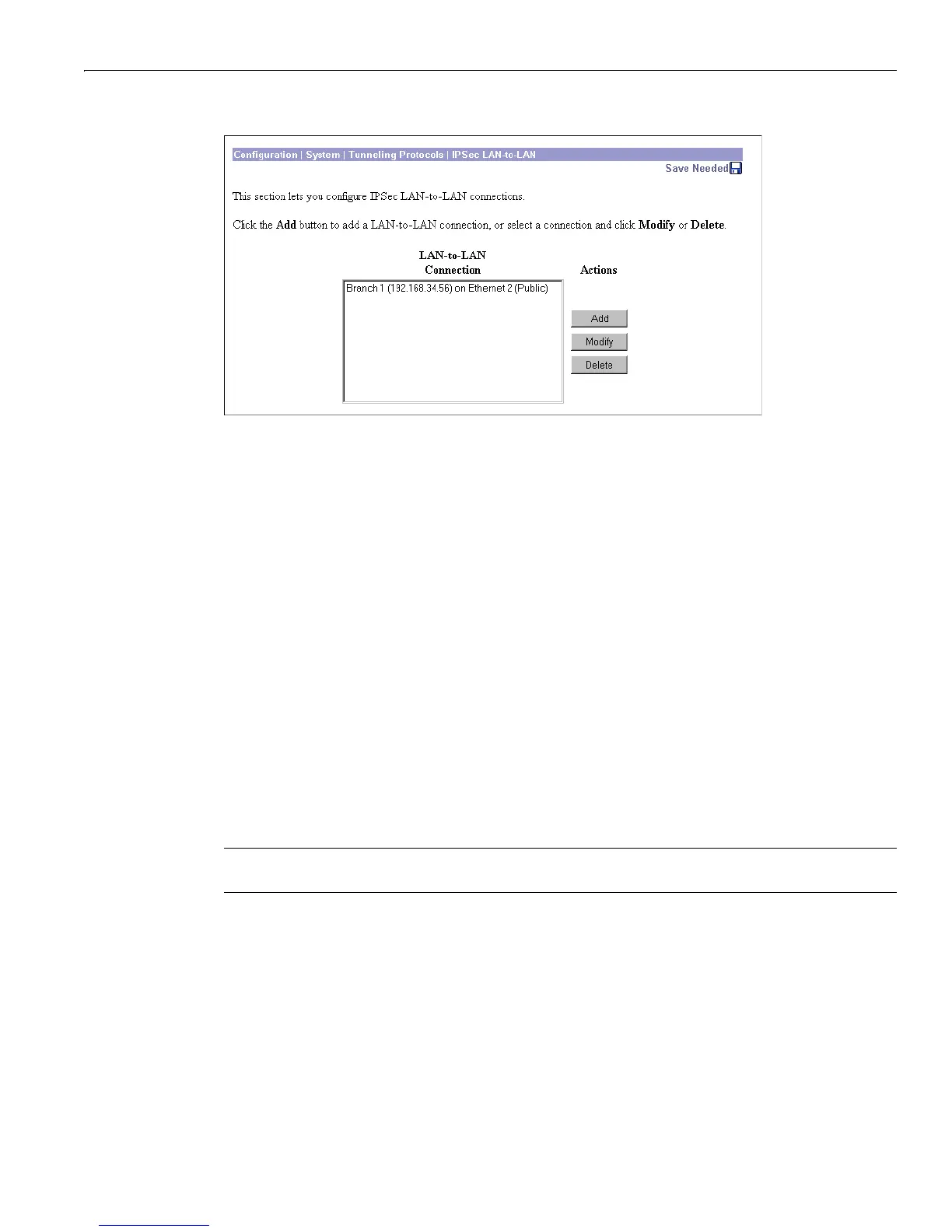

Figure 7-5: Configuration | System | Tunneling Protocols | IPSec LAN-to-LAN screen
LAN-to-LAN Connection
The LAN-to-LAN Connection list shows connections that have been configured. The connections are listed
in the order you configure them, in the format:
Name (Peer IP Address) on Interface; for
example,
Branch 1 (192.168.34.56) on Ethernet 2 (Public). If no connections have been
configured, the list shows
--Empty--.
Add / Modify / Delete
To configure and add a new connection, click Add. See the Configuration | System | Tunneling Protocols |
IPSec LAN-to-LAN | Add
screen. If you have not configured a public interface, the Manager displays the
Configuration | System | Tunneling Protocols | IPSec LAN-to-LAN | No Public Interfaces screen.
To modify the parameters of a configured connection, select the connection from the list and click
Modify.
See the
Configuration | System | Tunneling Protocols | IPSec LAN-to-LAN | Modify screen.
To delete a configured connection, select the connection from the list and click
Delete. There is no
confirmation or undo. The Manager deletes the connection, its LAN-to-LAN filter rules, SAs, and group.
The Manager then refreshes the screen and shows the remaining connections in the list.
Caution: Deleting a connection immediately deletes any tunnels—and user sessions—using that connection.
Reminder: The Manager immediately includes your changes in the active configuration. To save the active
configuration and make it the boot configuration, click the
Save Needed icon at the top of the Manager
window.
