Monitor | Statistics | MIB-II | OSPF
15-87
VPN 3000 Concentrator Series User Guide
Monitor | Statistics | MIB-II | OSPF
This screen shows statistics in MIB-II objects for OSPF version 2 traffic on the VPN Concentrator since
it was last booted or reset. RFC 1850a defines OSPF version 2 MIB objects.
To configure OSPF on interfaces, see
Configuration | Interfaces. To configure system-wide OSPF
parameters, see
Configuration | System | IP Routing.

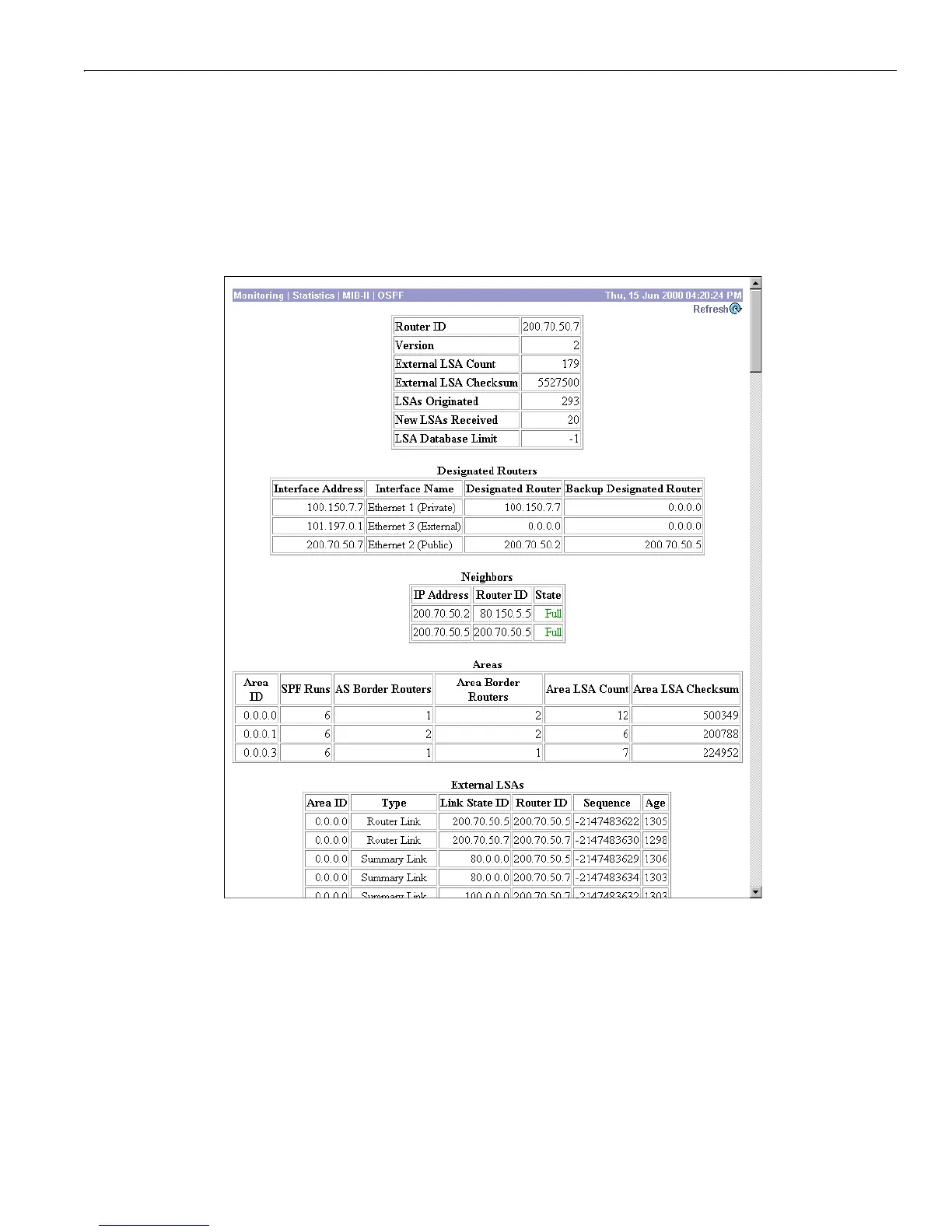

Figure 15-44: Monitor | Statistics | MIB-II | OSPF screen
Refresh
To update the screen and its data, click Refresh. The date and time indicate when the screen was last
updated.
