Configuration | Policy Management | Traffic Management | NAT | Rules | Add or Modify
13-43
VPN 3000 Concentrator Series User Guide

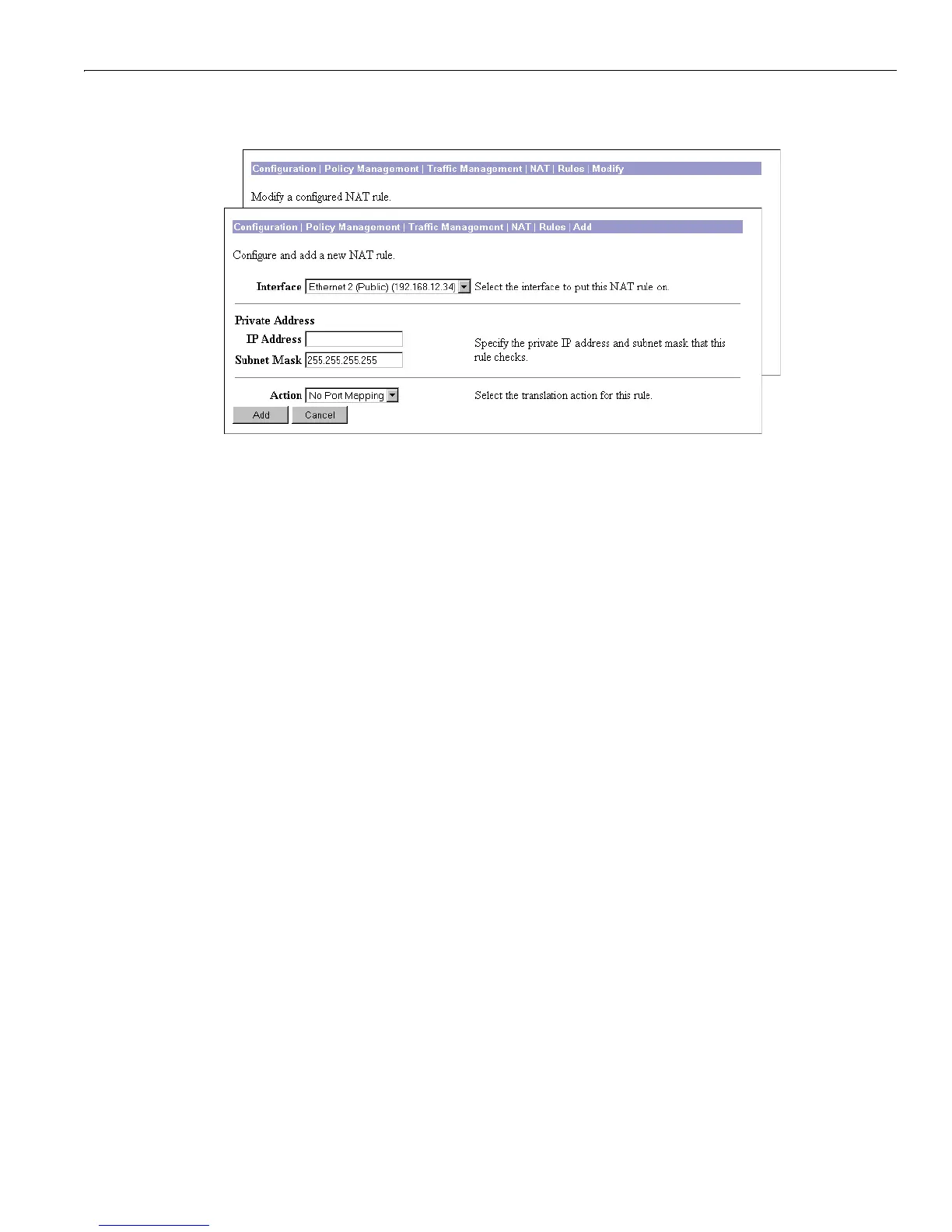

Figure 13-22: Configuration | Policy Management | Traffic Management | NAT | Rules | Add or
Modify screen
Interface
Add screen:
Click the drop-down menu button and select the configured public interface for this NAT rule. The
list shows all interfaces (Ethernet or WAN) that have the
Public Interface parameter enabled. See
Configuration | Interfaces.
Modify screen:
The screen shows the configured public interface for this NAT rule. You cannot change the
interface. To move the rule to another interface, you must delete this rule and add a new one for the
other interface.
Private Address
Specify the private network (subnet) addresses that NAT translates to and from the public address.
IP Address
Enter the private IP address in dotted decimal notation; e.g., 10.0.0.0.
Subnet Mask
Enter the subnet mask appropriate for the private IP address range. Use dotted decimal notation; the
default is
255.255.255.255. For example, to translate all private addresses in the 10. subdomain,
enter
255.0.0.0.
In the
NAT Rules list, the subnet mask is shown as the number of 1s; for example, 255.255.0.0 is shown
as
/16.
