14 Administration
14-8
VPN 3000 Concentrator Series User Guide
Administration | Sessions | Detail
These Manager screens show detailed parameters and statistics for a specific remote-access or
LAN-to-LAN session. The parameters and statistics differ depending on the session protocol. There are
unique screens for:
• IPSec LAN-to-LAN (IPSec/LAN-to-LAN)
• IPSec remote access (IPSec User)
• IPSec through NAT (IPSec/NAT)
• L2TP
• L2TP over IPSec (L2TP/IPSec)
• PPTP
The Manager displays the appropriate screen when you click a highlighted connection name or username
on the
Administration | Sessions screen. See Figure 14-4 through Figure 14-9 below.
Each session detail screen shows two tables: summary data at the top, and detail data below. The
summary data echoes the session data from the
Administration | Sessions screen. The session detail table
shows all the relevant parameters for each session and subsession.
See Table 14-2 on page 14-12 for definitions of the session detail parameters, in alphabetical order.

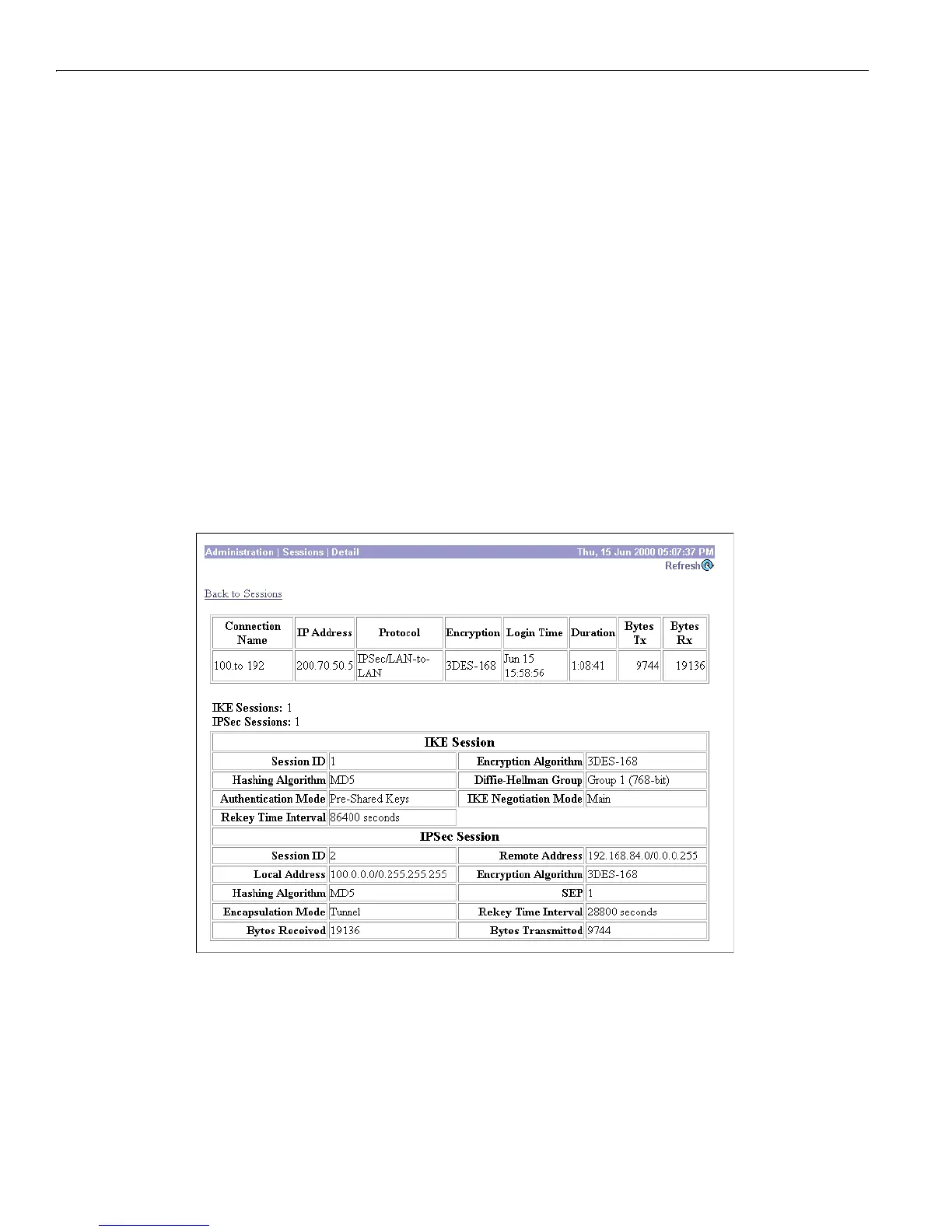

Figure 14-4: Administration | Sessions | Detail screen: IPSec LAN-to-LAN
