1 Using the VPN 3000 Concentrator Series Manager

1-16

VPN 3000 Concentrator Series User Guide

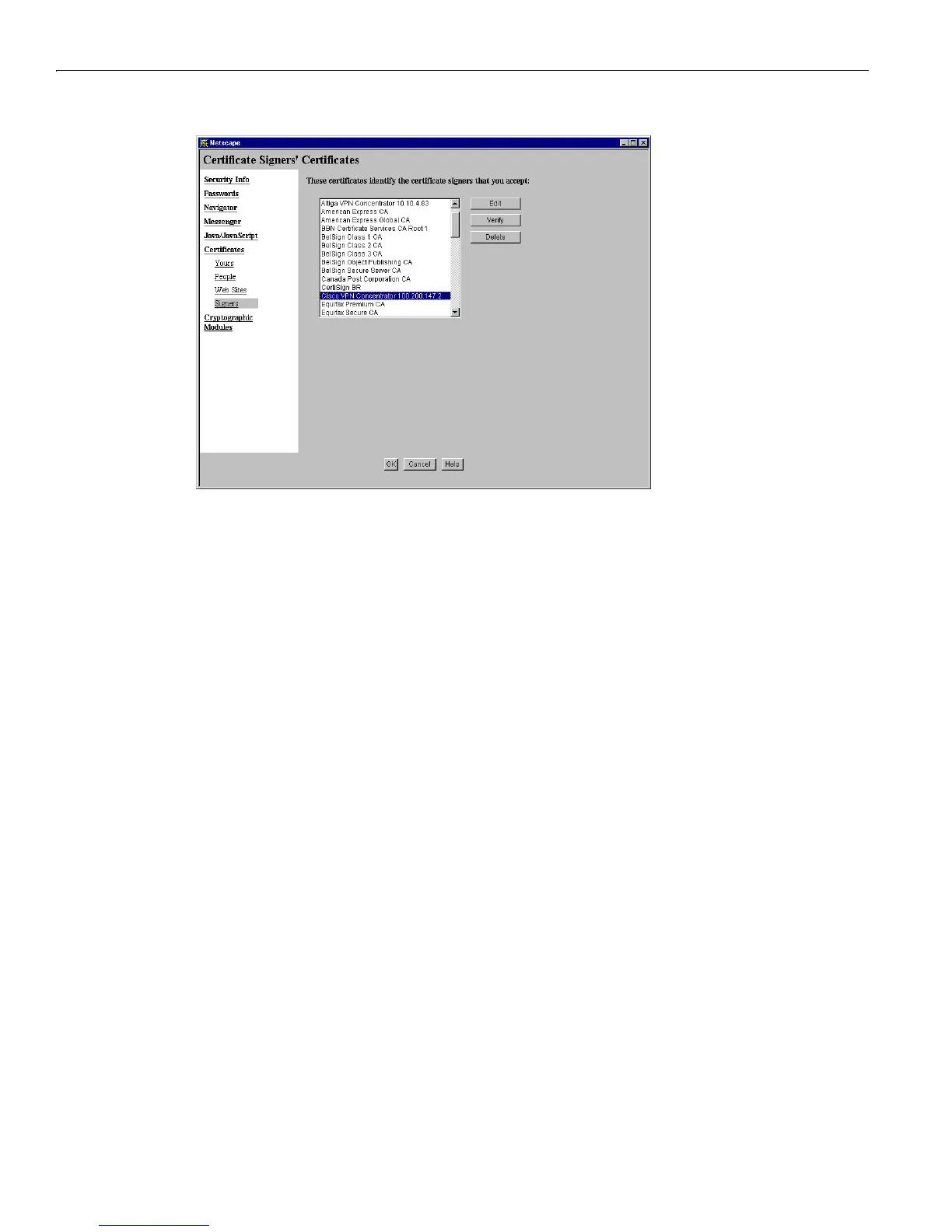

Figure 1-25: Netscape Certificates Signers list

Select a certificate, then click Edit, Verify, or Delete. Click OK when finished.
