In this example procedure, the first device will be bypassed and an FPGA image
will be assigned to the second device.
• For the first device, press Bypass.
• For the second device, select the FPGA image (*.mcs format). The FPGA file is
available from the Drivers USB and is dependent on whether the MVX Card is a Mark
I or a Mark II :
• MVX MK I (Green PCB)
Drivers USB > ECLIPSE DRIVERS > Omega-Median-Delta >
xxxxxx – MVX MK I (Green PCB) FPGA
(Where xxxxxx represents the product number).
• MVX MK II (Blue PCB)
Drivers USB > ECLIPSE DRIVERS > Omega-Median-Delta >
xxxxxx – MVX MK II (Blue PCB) FPGA
(Where xxxxxx represents the product number).

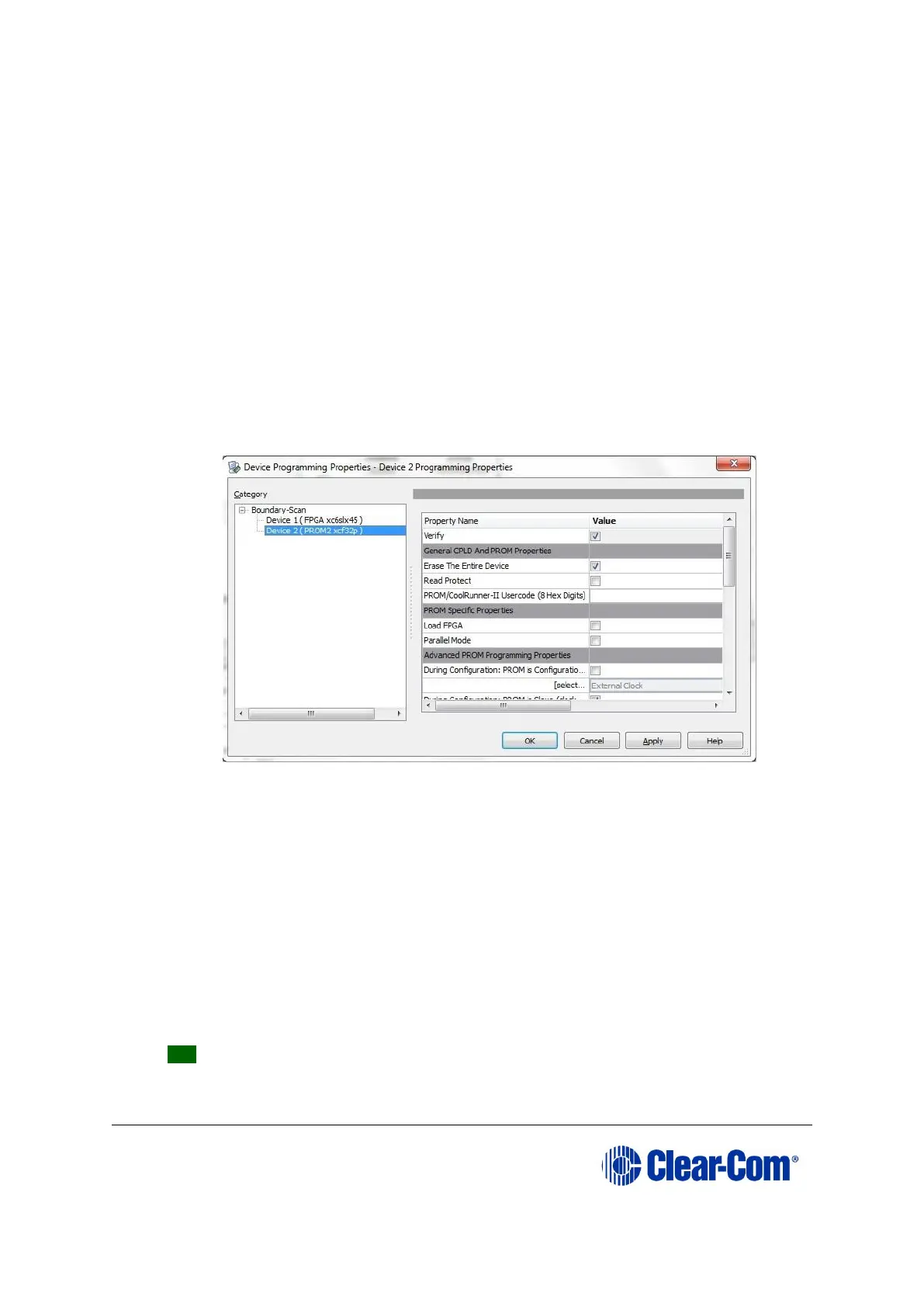

Figure 7-6: Example Xilinx device programming properties
9. Right click the second device and select Programming.
The upgrade starts, and takes approximately 2 minutes to complete. When the
upgrade is complete, the Program Succeeded message is displayed in the main
window.
A summary dialog is presented. For all devices, ensure that the Erase Before
Programming and Verify flags are set. Click OK.
10. Power down the MVX-A16 card.
7.4.2 Upgrading the MVX-A16 MK2
1. Ensure that version 13.1 of the Xilinx programming tools has been installed.
Tip: For more information about installing the Xilinx programming tools, see
Appendix J:Xilinx tools.
