8. Before loading the new application code (*.s19 format file), you must erase the
Flash ROM on the i-Station panel.
Press in the 2 key on the PC keyboard and press Enter.
A message is displayed indicating Flash Erasing – Please wait. . After the Flash
ROM is erased, a message is displayed asking you to Download S-record file
now.

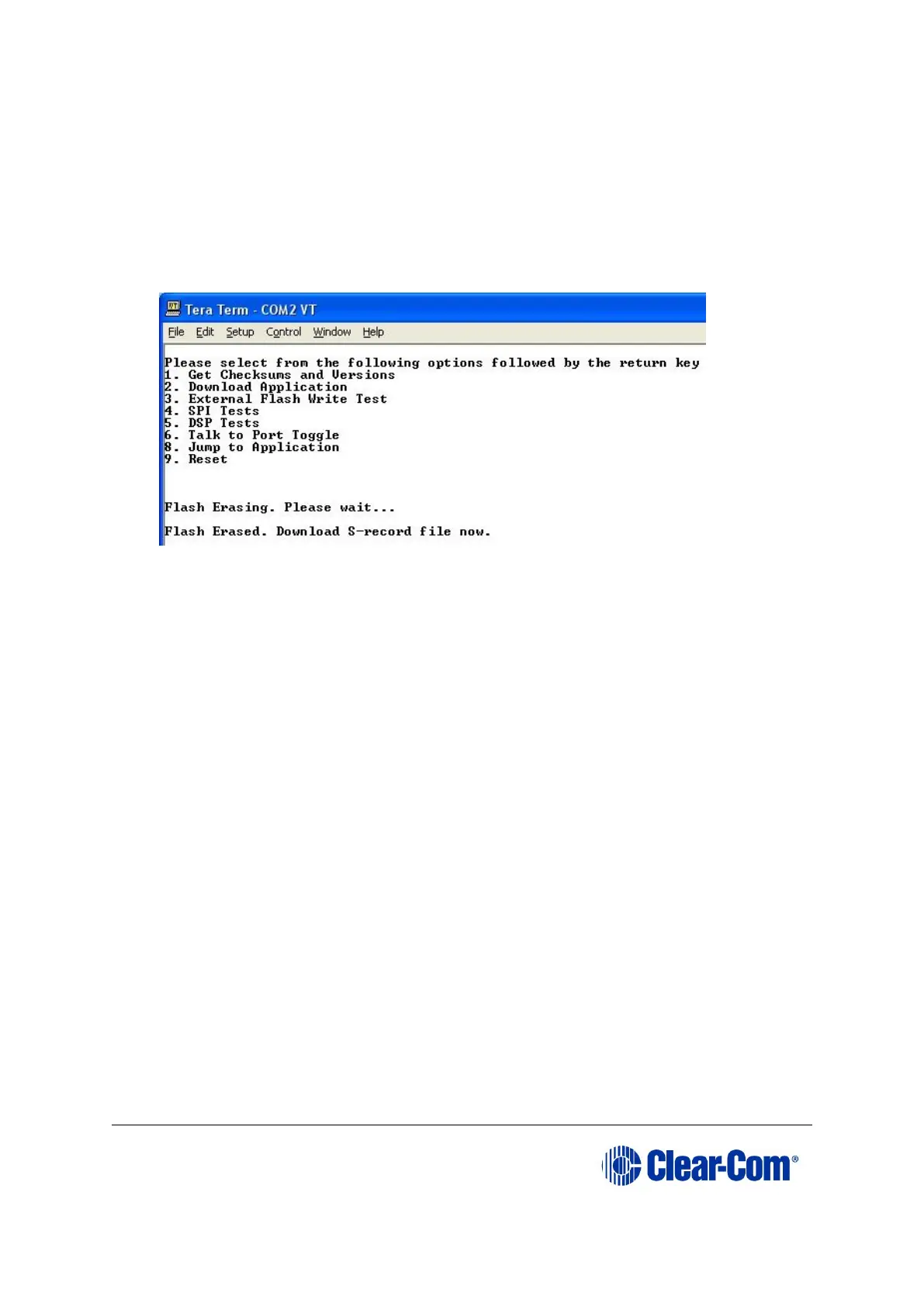

Figure 14-9: Erasing Flash ROM
9. In File, select the Send File. You are prompted to browse for the i-Station *.s19
file:
Drivers USB > ECLIPSE DRIVERS > Panel Software > i-Station > xxxxxx-
i-Station App
10. Select the i-Station *.s19 file. Select Open to start the *.s19 file download
process to the Flash ROM of the i-Station panel.
Note:
The download process takes several minutes to complete.
11. When the download process is complete, Tera-Term will display the message on
the PC Download Success!
Exit Tera Term and reboot the i-Station panel to leave maintenance / update
mode. Press 9 on the PC keyboard and then Enter.
The i-Station panel begins its reset process.
Note:
When the reset process is underway, the display modules briefly display the
updated firmware version. If the i-Station is re-connected to an Eclipse HX matrix
