Eclipse | Upgrade Guide

Page 210

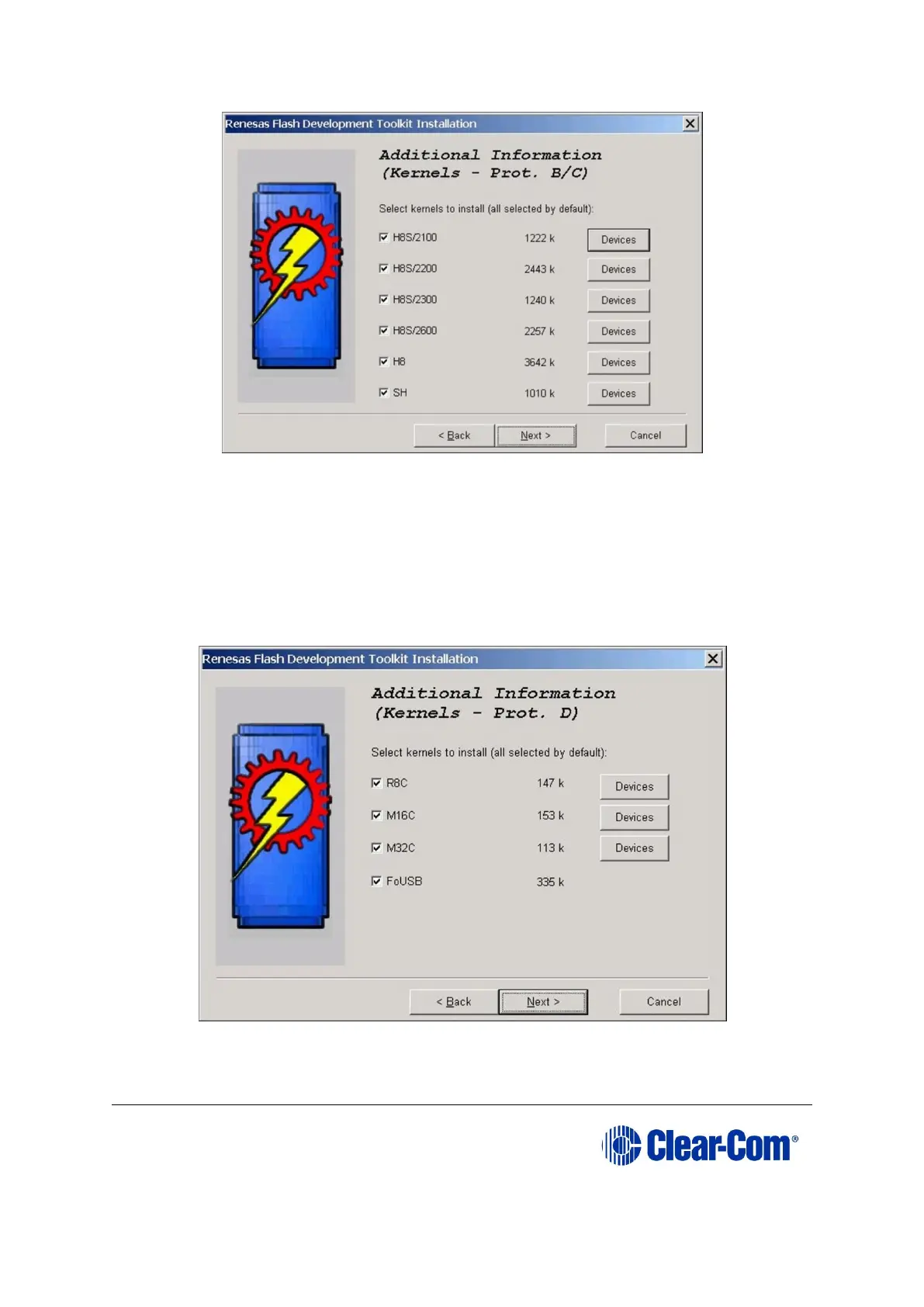

Figure 17-9: Kernels 1

Click Next.

7. The Kernels screen (Part 2) is displayed. Leave as is, unless you want to reduce

the amount of disk space used by reducing the number of kernels installed.

Figure 17-10: Kernels 2

Click Next.
