Page 44 399G169 Rev B 27 April 2016
6.1.2.2 Start registration from the CCM

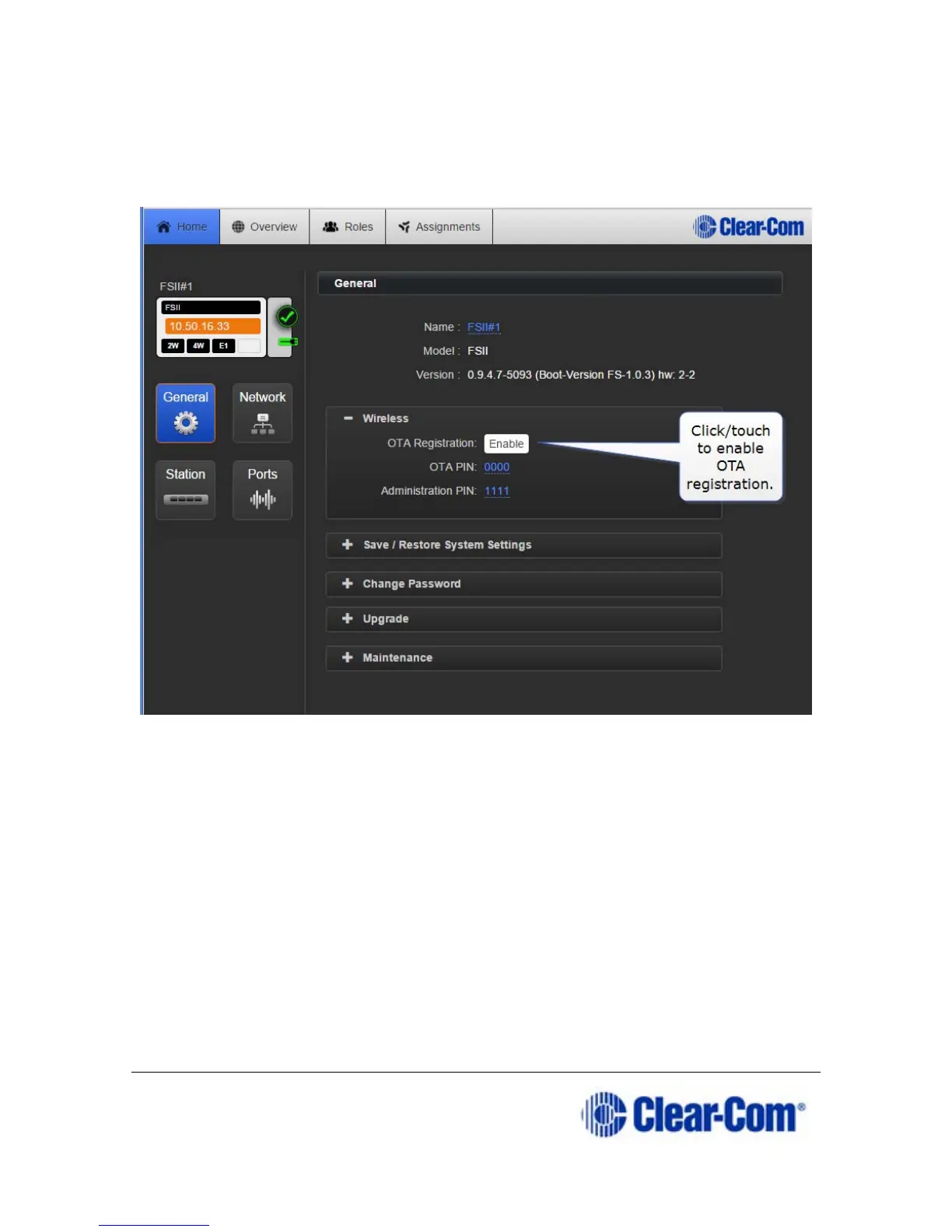

1) Connect to the CCM in a browser and navigate to
Home/General/Wireless. Click the OTA button.
Note: Registration mode has a two-minute inactive time-out. This is so that several
beltpacks can be registered sequentially without having to re-enable
registration mode.
6.1.2.3 Register Beltpacks
Note: System = FreeSpeak II Base name.
1) On the beltpack to be registered, hold the Menu key for two seconds
to enter MENU options. Scroll to SYSTEM CONNECT using the rotary
controllers and select it using key D. In menu mode the D key on the
beltpack operates as SELECT and the C key exits the menu level and
cancels the selection.
Note: On a new system there will be no previous connections at this point.
However, if the beltpack is currently connected to an active system, a
To Next Page
