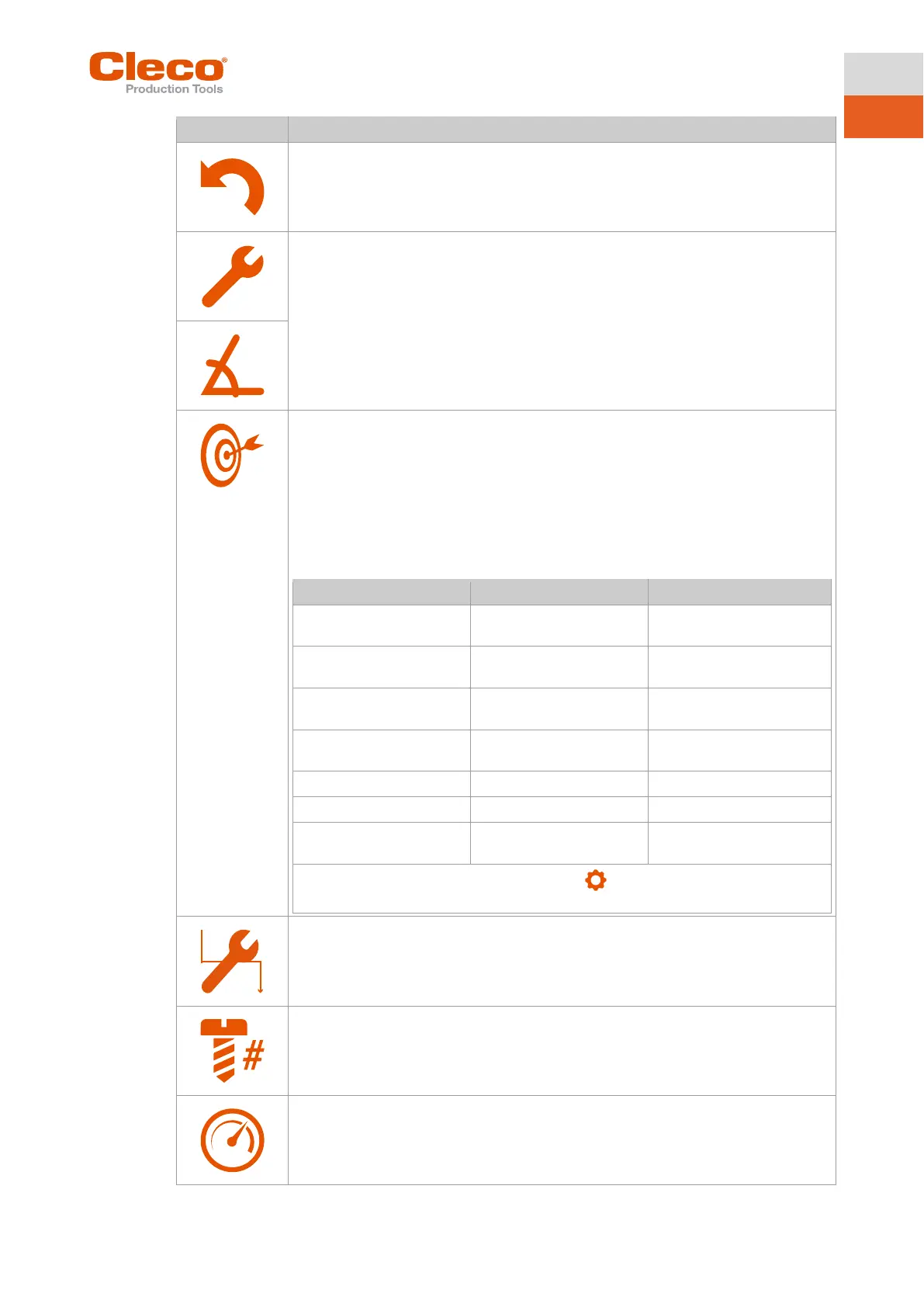

Button
Description
Display of the tightening strategy. Depending on the selected shut-off, one of the sym-
bols will be displayed. One torque and one angle shut-off is possible.
• Display of the torque shutoff
• Display of the angle shutoff.
► For a torque shutoff, enter the shut-off torque.
► For an angle shutoff, enter the shut-off angle.
Once the value has been reached, the tightening process is completed. This setting
option is the same as in the menu Advanced Settings.
Note
If the shut-off value is entered here in the Configuring FastApps menu, then the follow-
ing values are calculated automatically:
Parameter
Shut-off Torque
Shut-off Angle
Minimum Torque
-15% of the Shut-off
Torque
Threshold Torque
Maximum Torque
+15% of the Shut-off
Torque
Tool capacity
Minimum Angle
0
-10 deg of the Shut-off An-
gle
Maximum Angel
9999
+10 deg of the Shut-off An-
gle
Threshold Torque
50% of the Shut-off Torque
Manual input
Final Speed
50
50
Speed Threshold
1/4 x of the Shut-off
Torque
Threshold Torque
These values can be changed manually in the menu, see chapter 5.7.4 Ad-
vanced Settings, page 31.
Entering the Threshold Torque.
This button is only displayed during angle shutoff. This setting option is the same as in
the menu Advanced Settings.
Batch display
Enter the number of tightening positions for a FastApp.
Start Speed display.
► Enter the Start Speed.
