6 Tightening sequence
In the FastApps mode, there is a choice between two tightening sequences:
• Torque shutoff: Sequence 31 torque controlled, extended monitoring
Shut-off torque-controlled tightening sequence with torque and angle check.

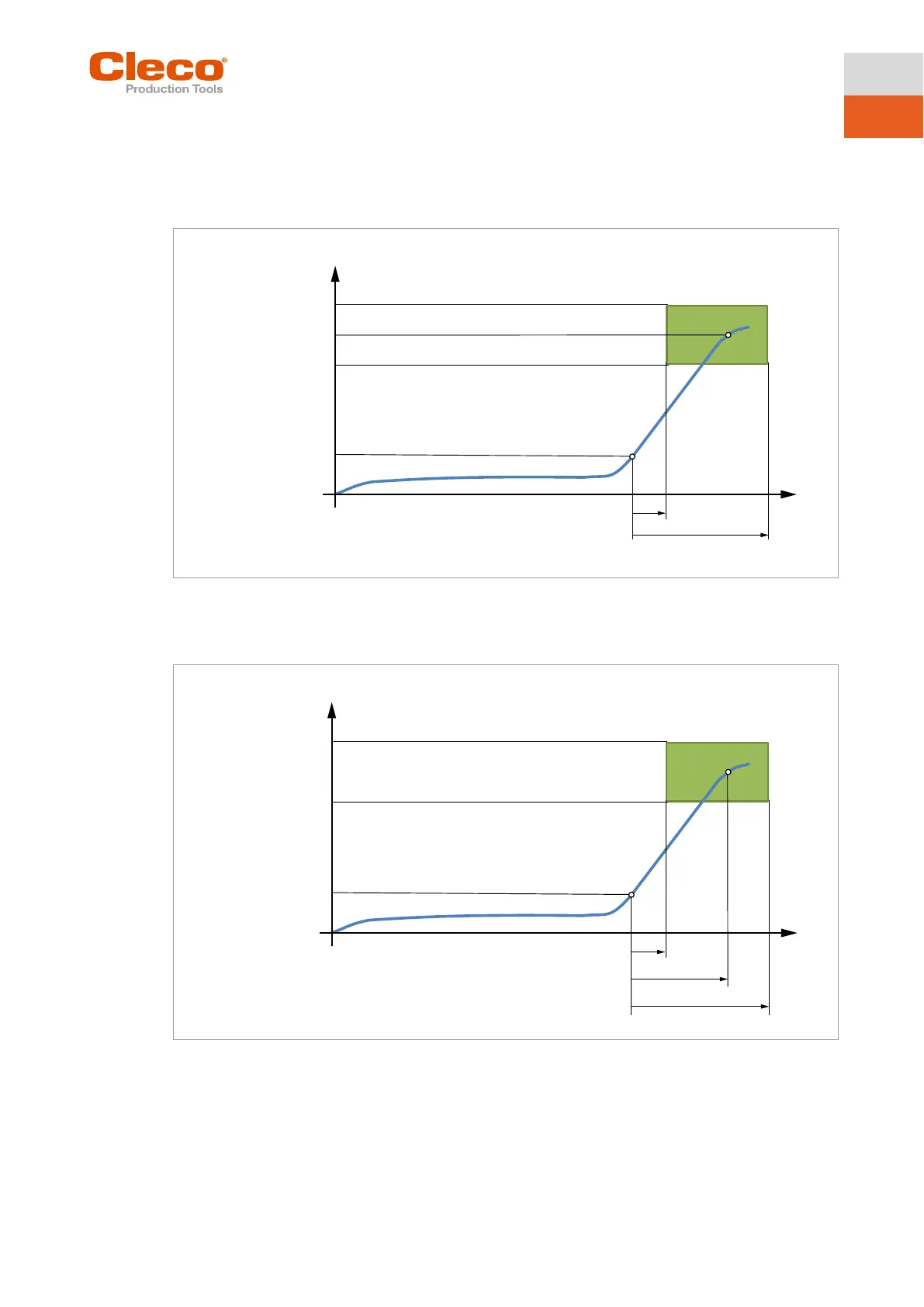

Fig. 6-1: Representation of torque shutoff
• Angle shutoff: Sequence 51 angle-controlled, extended monitoring
Shut-off angle-controlled tightening sequence with angle and torque check.
Fig. 6-2: Representation of angle shut-off
The following description applies to both tightening sequences.
For the speed, select a second speed parameter Final Speed. The behavior at the Final Speed is different
in FastApps and mPro mode:
• FastApps mode: If the Final Speed is programmed, the speed immediately changes from the start
speed to the final speed up to the maximum torque.
• mPro mode: If the Final Speed is programmed, the speed is reduced from the starting speed to the
final speed starting from the threshold torque to the maximum torque.
Maximum Torque
Shut-Off Torque
Minimum Torque
Threshold Torque
Minimum Angle
Maximum Angle
Torque
Angle
Maximum Torque
Minimum Torque
Threshold Torque
Minimum Angle
Shut-Off Angle
Maximum Angle
Torque
Angle
