Cleco CellTek S169263 - Torque Test

Menus And Functions
42
P2544PM | 2022-12 | REV H
Apex Tool Group
5
EN
>

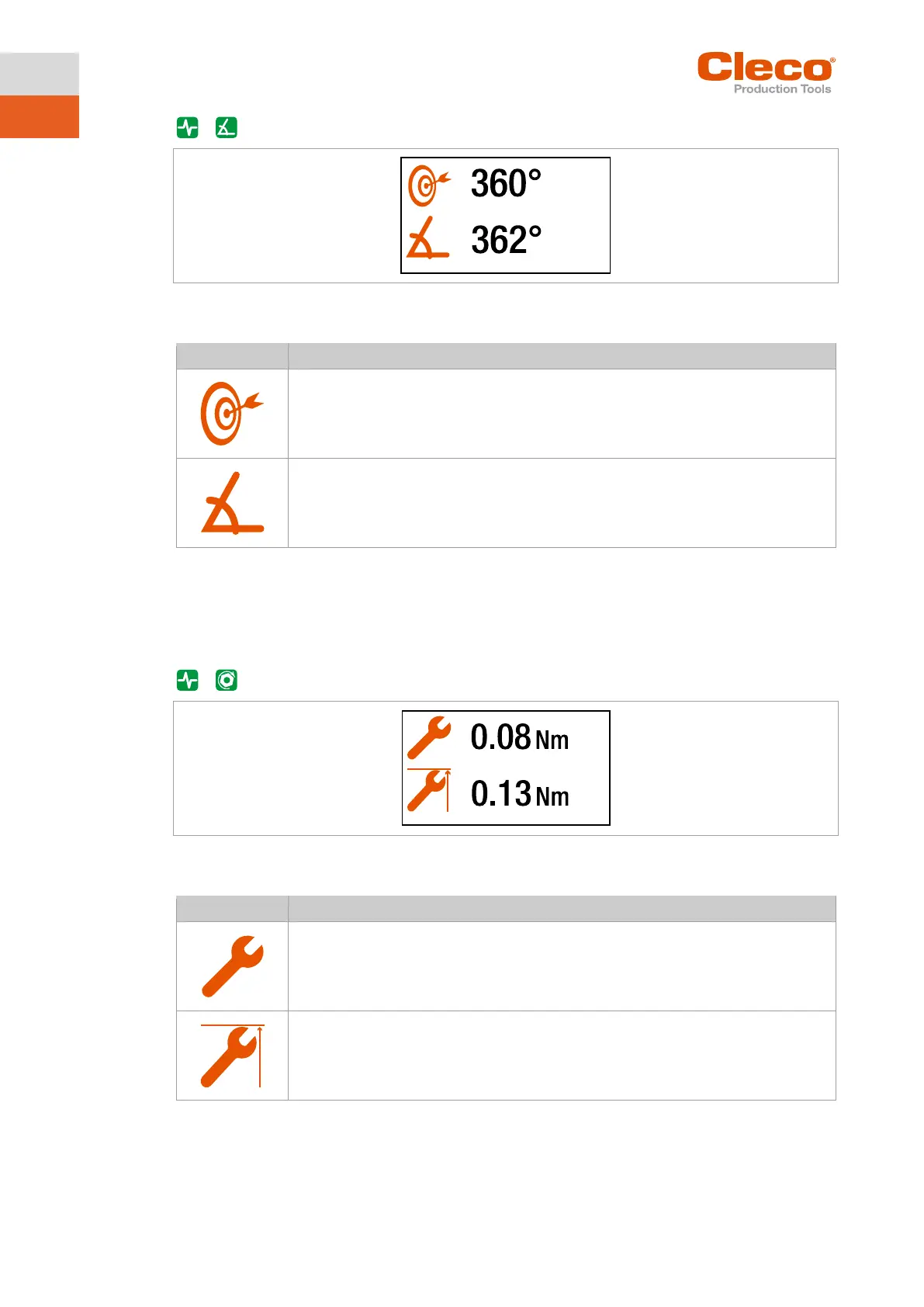

Fig. 5-24: Submenu – Angle test
► To start the tests, keep the start trigger pressed.
Symbol
Description
Display of the shut-off angle of 360°.
Display of the angle.
The displayed angle should be close to 360°.
5.9.3 Torque test
With the torque test, the functionality of the measuring sensor can be checked, and the torque measure-
ment can be evaluated.
At the beginning of the test, the torque is 0 Nm. Throughout the entire test, the torque is measured and dis-
played.
>
Fig. 5-25: Submenu – Torque test
► To start the tests, keep the start trigger pressed.
Symbol
Description
Display of the current torque.
Display of the maximum torque.
