Single-point option
P/N 63674, Rev. 9 Page 93
2. Rotate feed box until the
arrow points in the desired
feed direction.
3. Reinstall the bolts and feed
shaft.
This feed box has two modes,
engaged and disengaged (neutral),
as seen in Figure 4-45.

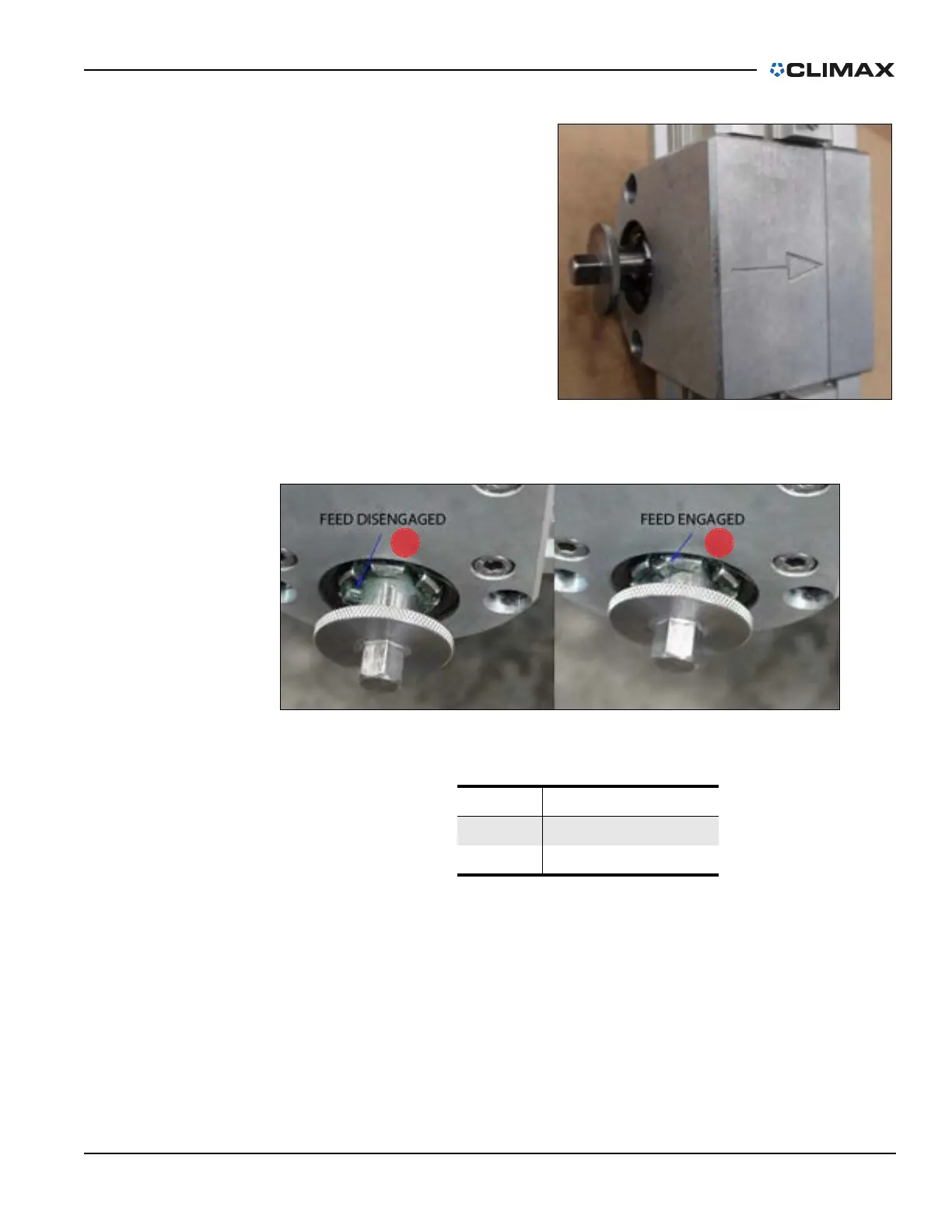

FIGURE 4-46. FEED BOX MODE POSITIONS
In neutral, the tool may be manually fed in either direction. Hoses connected to the
feed box should have approximately 12" (304.8 mm) of extra length coiled inside
the arm to allow the arm to move and still keep the hoses clear of snag hazards.
TABLE 4-14. FEED BOX MODE IDENTIFICATION
Number Component
1 Feed disengaged
2 Feed engaged
FIGURE 4-45. FEED DIRECTION ARROW
