4.2.8 Absolute velocity move
The Absolute Velocity Move Screen, shown in Figure 4-25, allows the movement
of the CM6200 to be controlled based on percent of the maximum speed.

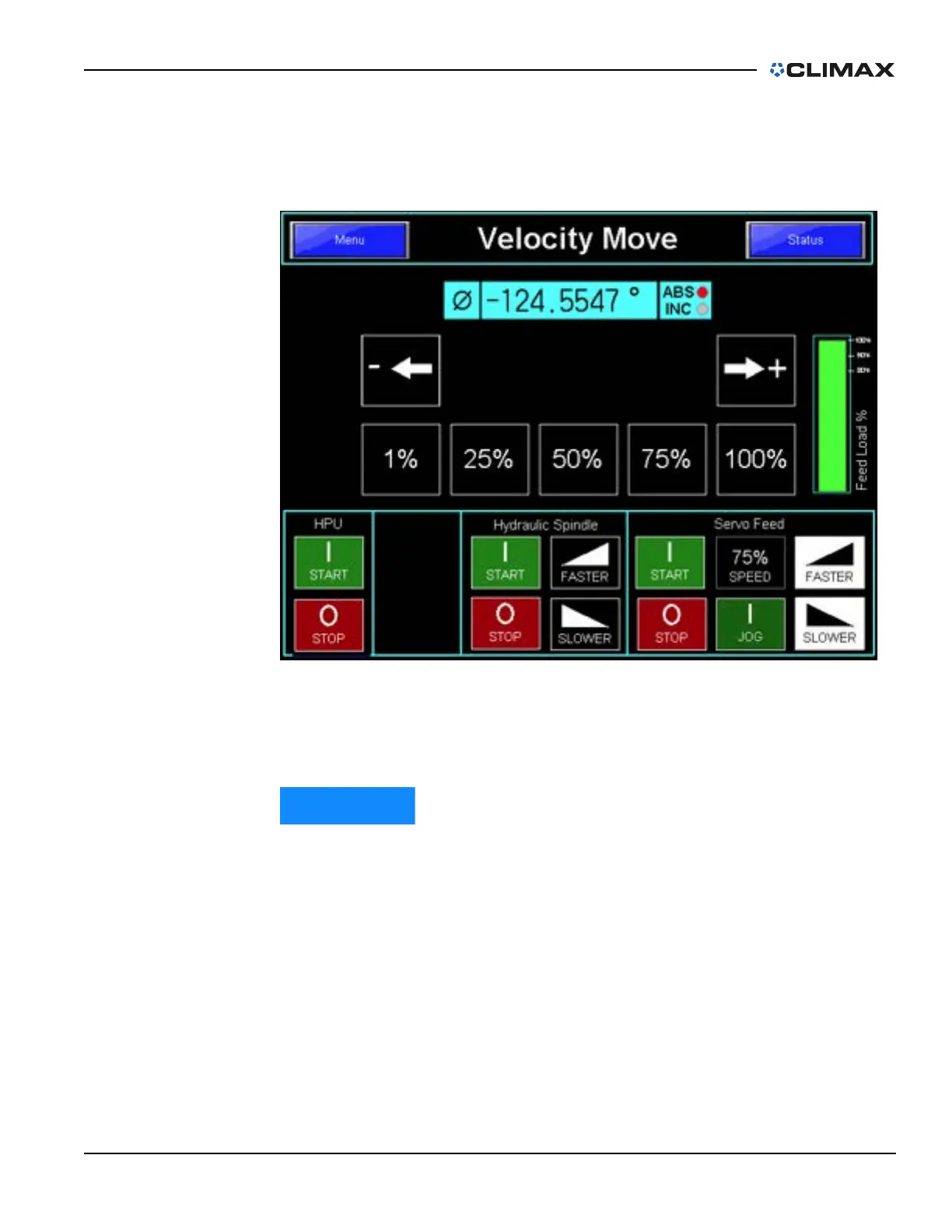

FIGURE 4-25. ABSOLUTE VELOCITY MOVE SCREEN
Note the color and the identification dot for absolute coordinates. The function is
the same as the incremental screen, but the move will be in relation to the absolute
zero.
Based on the requested configuration of the CM6200 options, only
certain functions will be enabled and visible. As a result, some functions
shown above may not be available on the control pendant supplied.
