4.2.6 Absolute move
The Absolute Move Screen, shown in Figure 4-23, allows the operations of the
CM6200 to be controlled according to a absolute coordinate system.

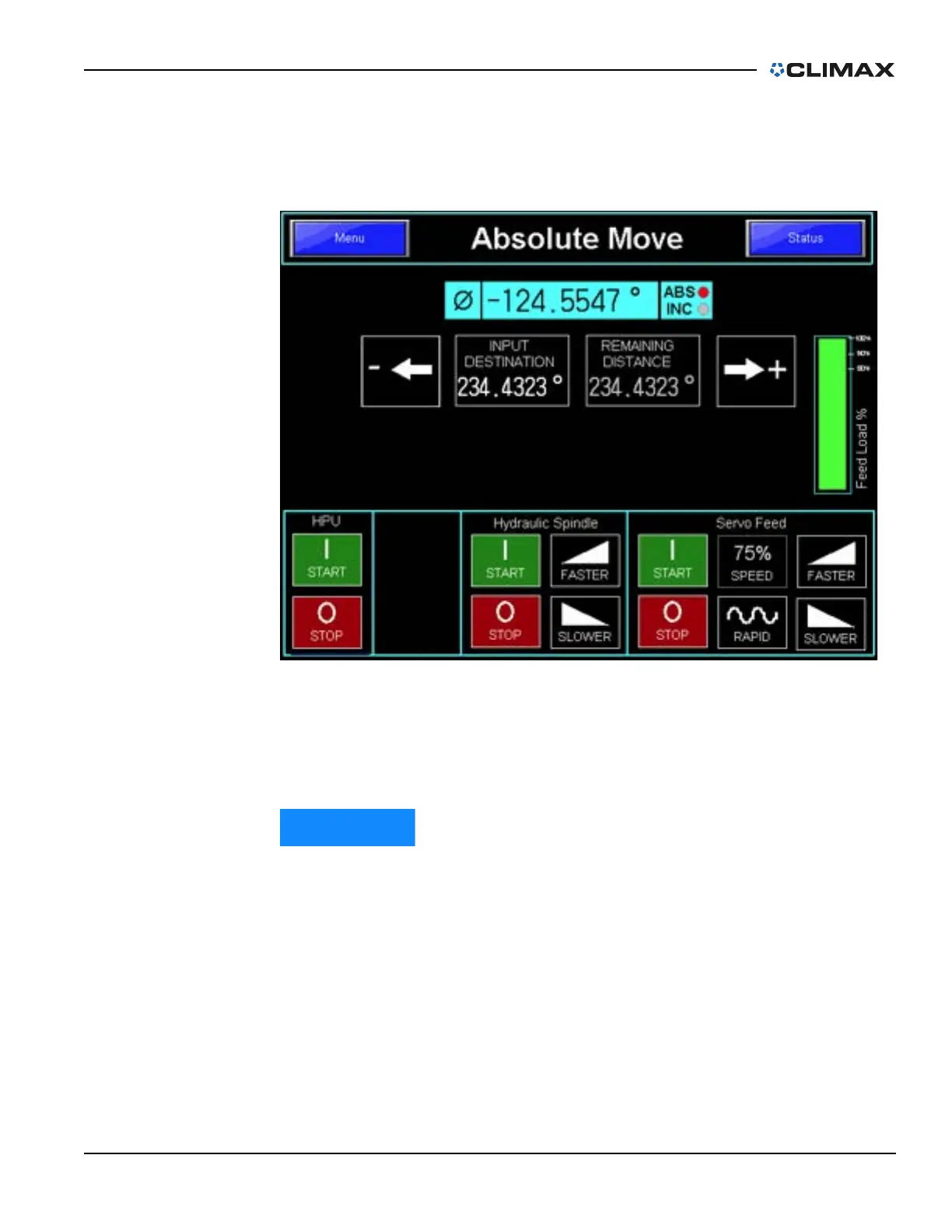

FIGURE 4-23. ABSOLUTE MOVE SCREEN
Absolute moves are relative to the absolute zero position, which can be anywhere
along the circumference of a 360-degree circle. Not to be confused with incremen-
tal moves, the absolute move will move to the destination entered, at the direction
and speed you entered, relative to the ZERO position.
Based on the requested configuration of the CM6200 options, only
certain functions will be enabled and visible. As a result, some functions
shown above may not be available on the control pendant supplied.
