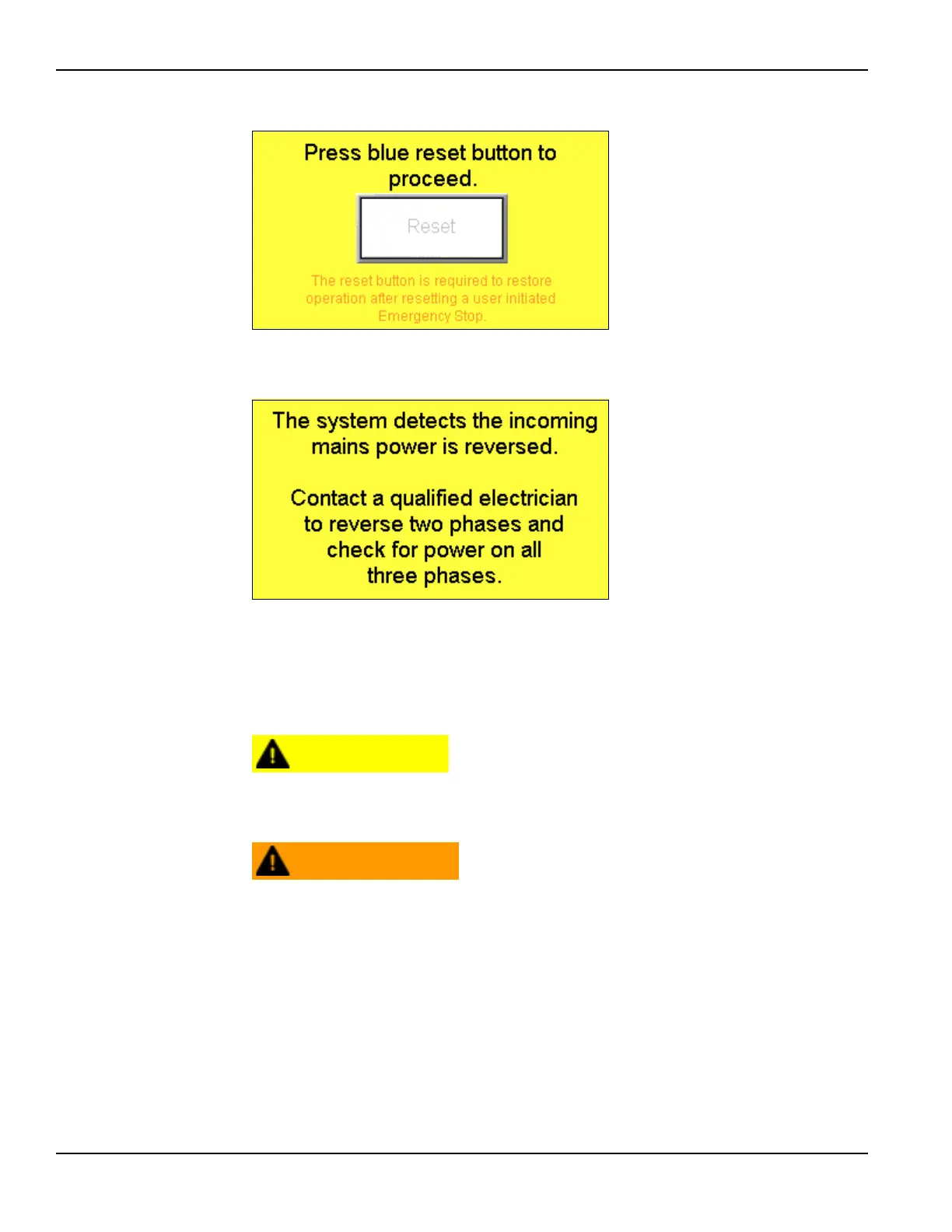

FIGURE 4-16. POP-UP SCREEN RESET REQUEST
FIGURE 4-17. REVERSED POWER WARNING
After the faults are resolved, the reset button will become active and the system
may be reset. After resetting the system, the HMI will redirect to the Main Menu
Screen.
Do not disconnect any cables from the system while energized! This will
result in damage to the system.
Servo motor warning: do not connect or disconnect cables while the
unit is energized.
4.2.3 Main menu
The Main Menu Screen, shown in Figure 4-18, provides access to all the main
screens for machine operation.
