Centering and leveling the machine
P/N 63674, Rev. 9 Page 47
12. Lower the machine onto the
blocks (see Figure 3-33).
13. Install the appropriate
mounting apparatus (ID
mount, OD mount, or face
mount).
3.9 CENTERING AND LEVELING THE MACHINE
When machining outdoors or in direct sunlight, be aware that
temperature changes can affect final tolerances. CLIMAX recommends
setting up temporary shade in these circumstances.
Do the following to precision center and level the machine:
1. Use a dial indicator to indi-
cate the workpiece surface
for level while rotating the
machine.
2. Level the machine by doing
the following:

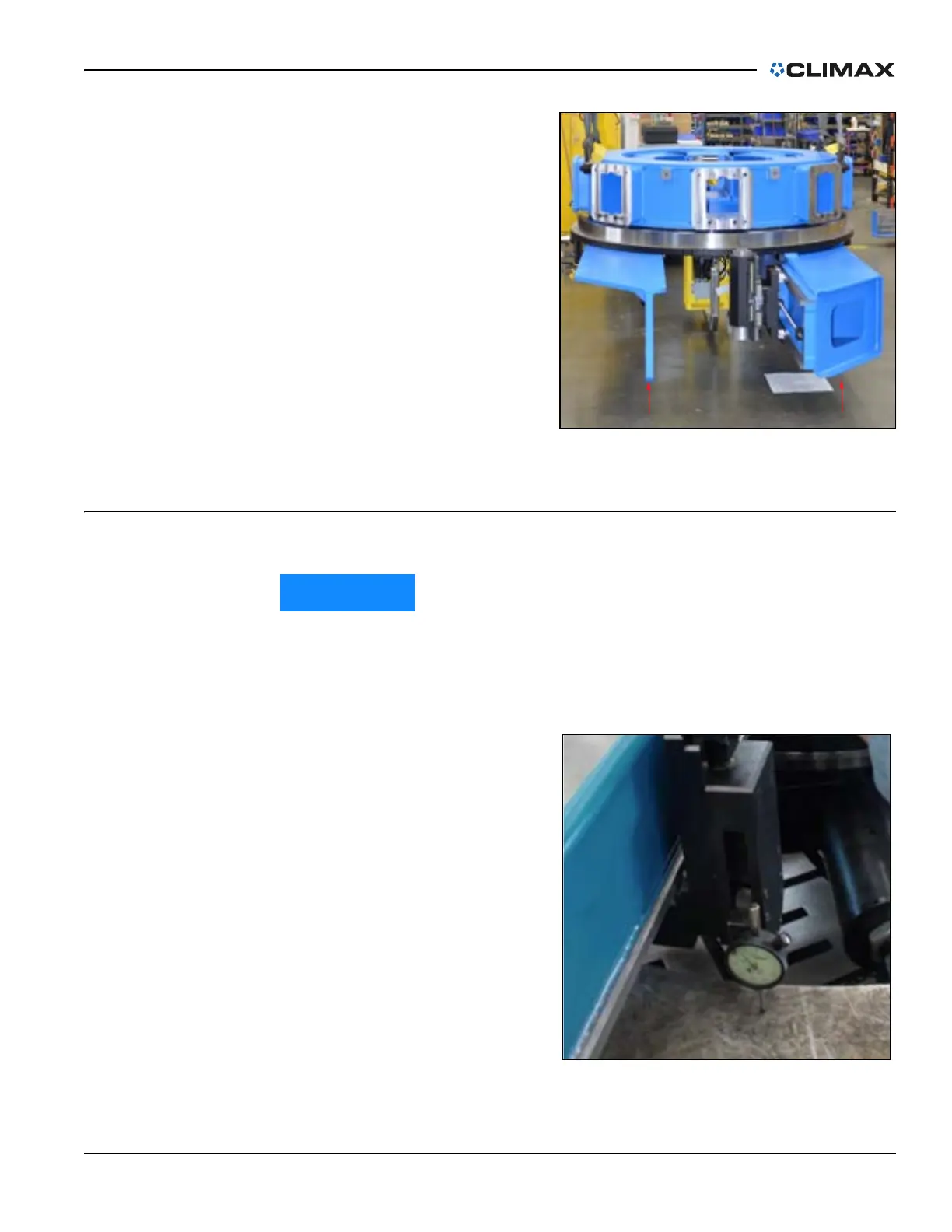

FIGURE 3-33. BLOCKING LOCATIONS
FIGURE 3-34. ATTACHED DIAL INDICATOR
