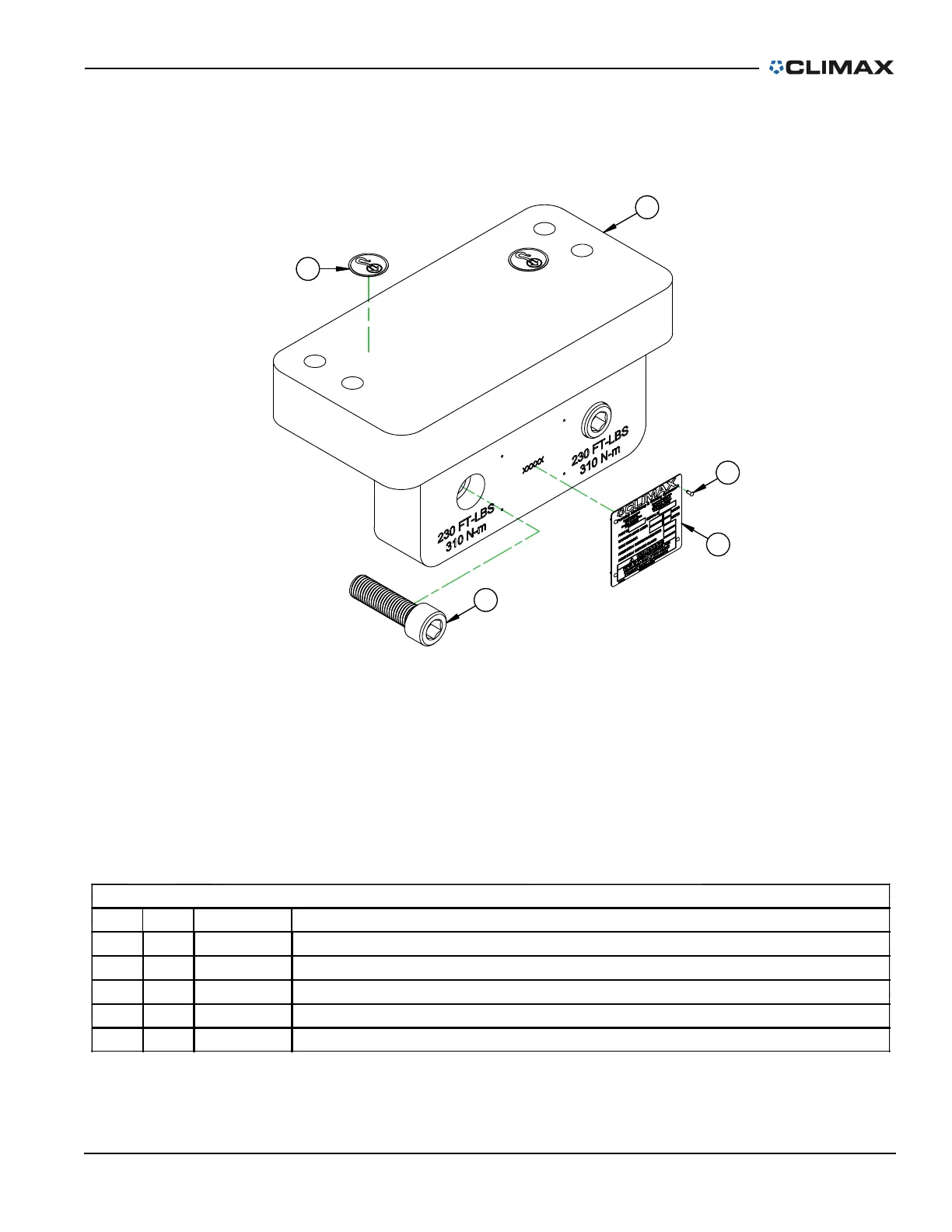

IGURE A-6. LOAD TESTED LIFTING ASSEMBLY (P/N 68425)

PARTS LIST

DESCRIPTION

PART No.

QTY

ITEM

SCREW DRIVE #2 x 1/4 HOLE SIZE .089

1058841

PLATE LIFTING CM6200

6842312

SCREW M24 X 3.0 X 80MM SHCS

6842623

TAG BELOW THE HOOK LIFTING INFO AND SERIAL NUMBER

6942214

LABEL WARNING LIFT POINT ROUND 1.5"

5903929

BELOW THE HOOK LIFTING INFO TAG

PART NUMBER: 68425

SERIAL NUMBER:

WORKING LOAD LIMIT: 6000 KG

TARE WEIGHT: 55 KG

ASME BTH-1 DESIGN CATEGORY: A

ASME BTH-1 SERVICE CLASS: 0
