Machine envelope and operating dimensions
P/N 63674, Rev. 9 Page 17
2.3 MACHINE ENVELOPE AND OPERATING DIMENSIONS

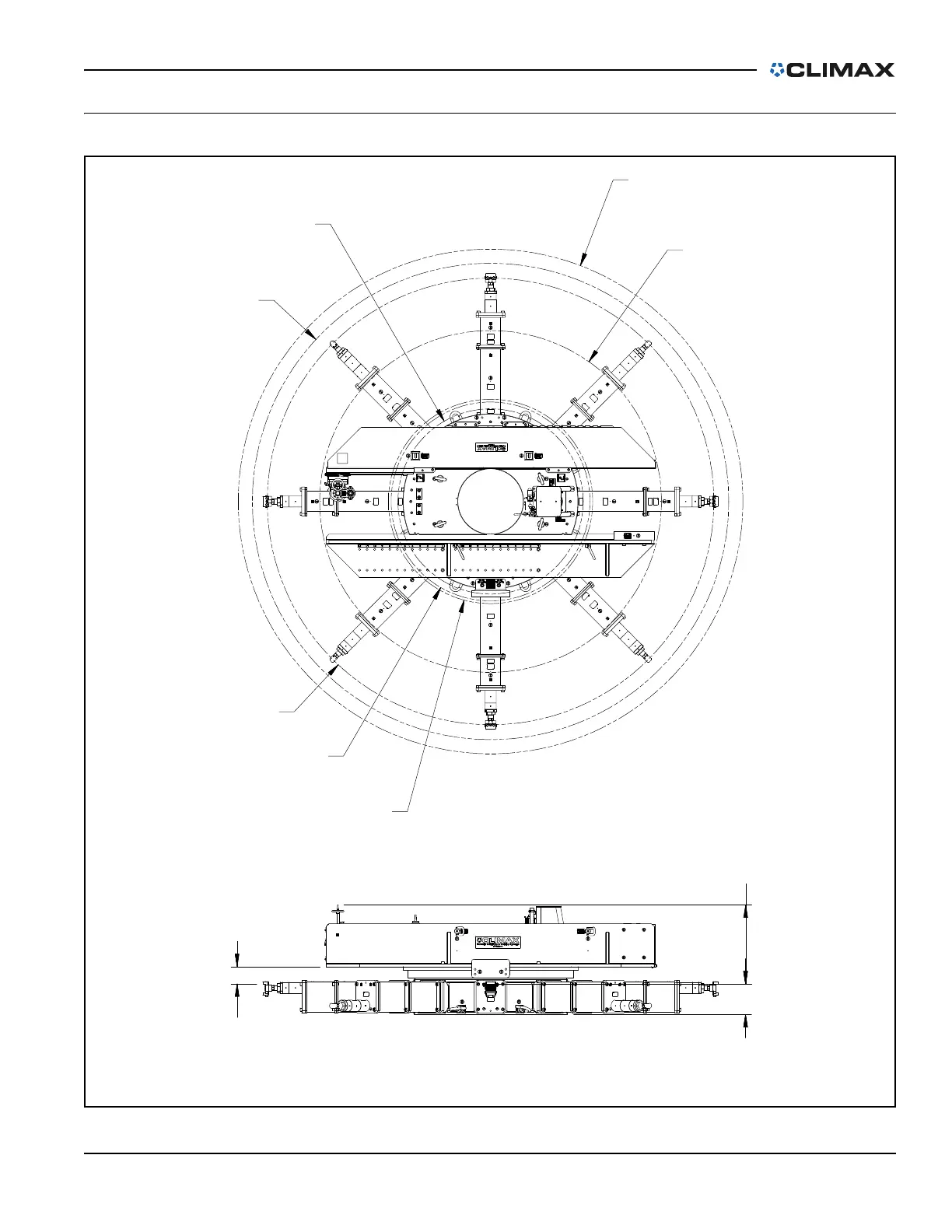

FIGURE 2-4. ID MOUNT MACHINE DIMENSIONS
12.10 B.25
[307 ± 6 mm]
MINIMUM
BORE DEPTH
NOTE: ± .25 TOLERANCE IS BASED ON TRAVEL OF LEVELING FOOT
P135.6
[3444 mm]
MINIMUM SWING CLEARANCE
P73.5
[1867 mm]
MINIMUM MILLING DIAMETER
(CENTER OF MILL)
P189.0
[4800 mm]
MAXIMUM MILLING DIAMETER
(CENTER OF MILL)
P78.9
[2004 mm]
MINIMUM CHUCKING DIAMETER
WITHOUT LOCKNUTS
P177.2
[4500 mm]
MAXIMUM CHUCKING DIAMETER
P200.25
[5087 mm]
MAXIMUM SWING CLEARANCE
P81.1
[2060 mm]
MINIMUM CHUCKING DIAMETER
WITH LOCKNUTS
6.900 B.25
[784 ± 6 mm]
MAXIMUM
ROTATING HEIGHT
W/O HOSE TOWER
31.357
[784 ± 6 mm]
MAXIMUM
ROTATING HEIGHT
W/O HOSE TOWER
