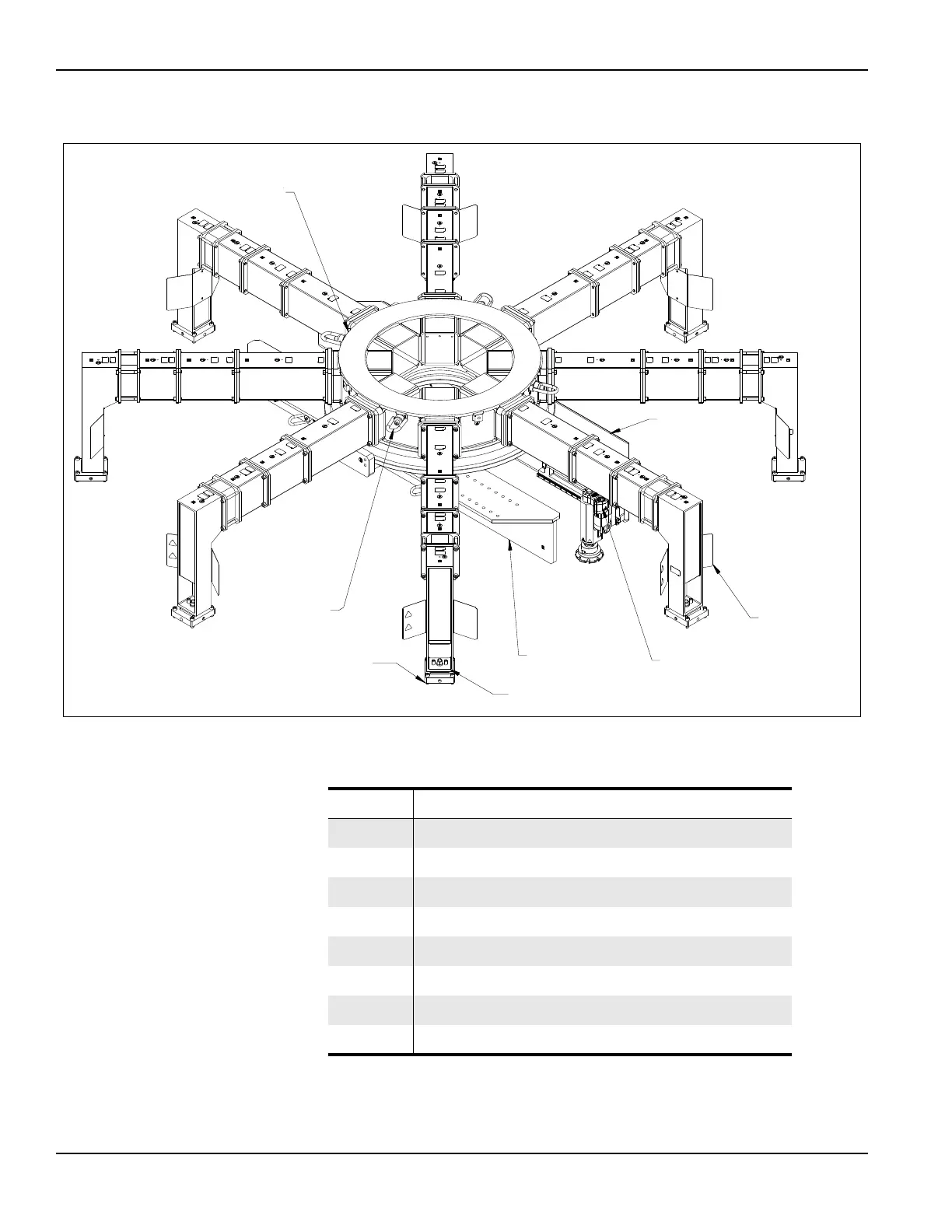

FIGURE 2-3. OD MOUNT COMPONENTS
CM6200 OD MOUNT MILLING
200 CIRCULAR MILL OD MOUNT
MILLING HEAD
SAFETY SHIELD
CENTERING PLATE
LEVELING PLATE
COUNTERWEIGHT
ASSEMBLY
ADJUSTABLE CHUCK ASSEMBLY
MACHINING ARM
HOIST RINGS
6
1
7
5
8
3
2
4
TABLE 2-3. OD MOUNT COMPONENT IDENTIFICATION
Number Component
1 Adjustable chuck assembly
2 Machining arm
3 Safety shield
4 Milling head
5 Counterweight assembly
6 Leveling plate
7 Centering plate
8 Hoist rings
