Circular milling
P/N 63674, Rev. 9 Page 75
4.2.12 System info

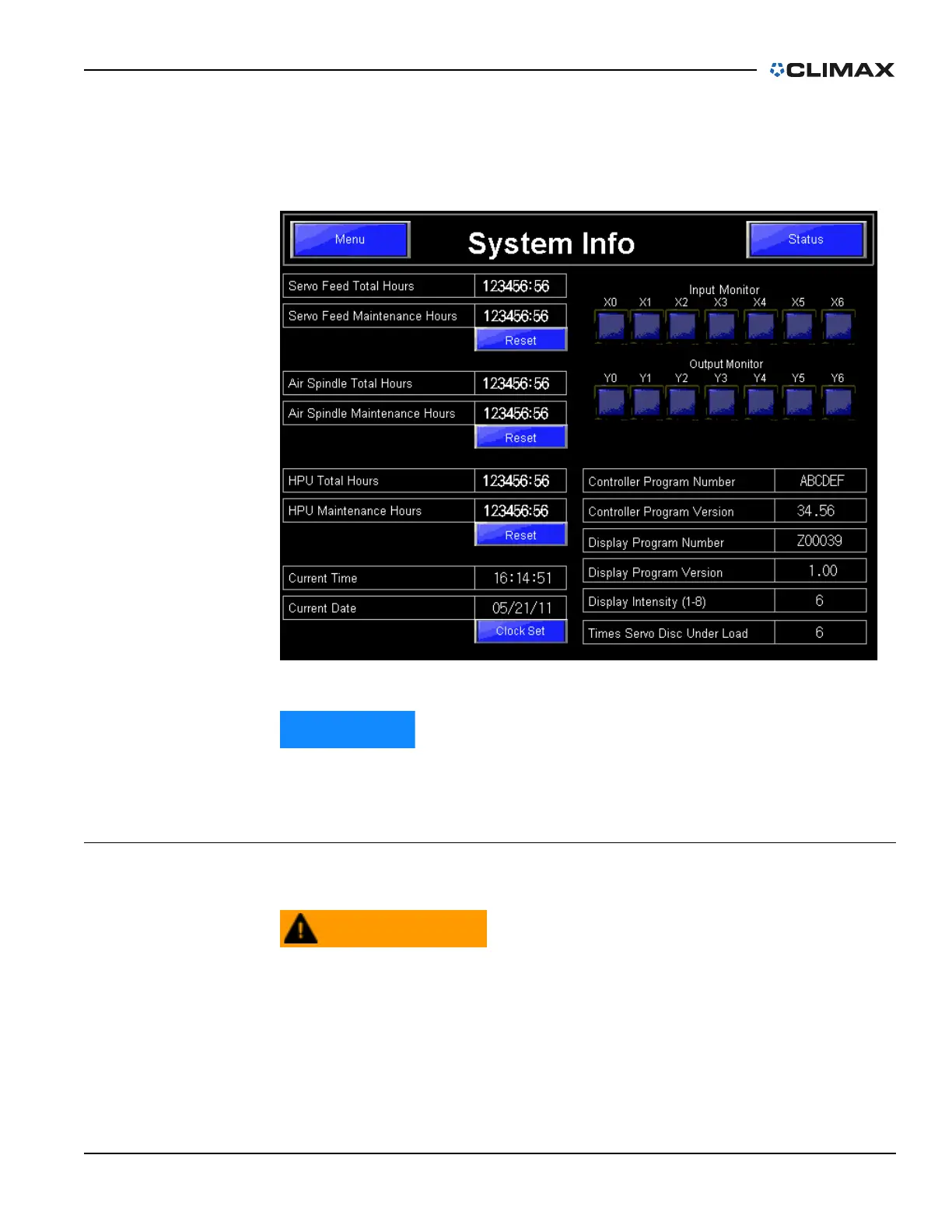

The System Information Screen, shown in Figure 4-27, displays information
regarding the operation and identification of the machine.
FIGURE 4-27. SYSTEM INFO SCREEN
Based on the requested configuration of the CM6200 options, only
certain functions will be enabled and visible. As a result, some functions
shown above may not be available on the control pendant supplied.
4.3 CIRCULAR MILLING
Prior to machining make a visual inspection and review of the setup
area. Make sure all necessary steps have been taken to prevent
accidental blockage of rotating parts. Obstructions in the rotating
machining or, counterweight assembly, and milling head are a safety
hazard for machining operations and may result in severe injury or
death.
