4.2.5 Incremental move

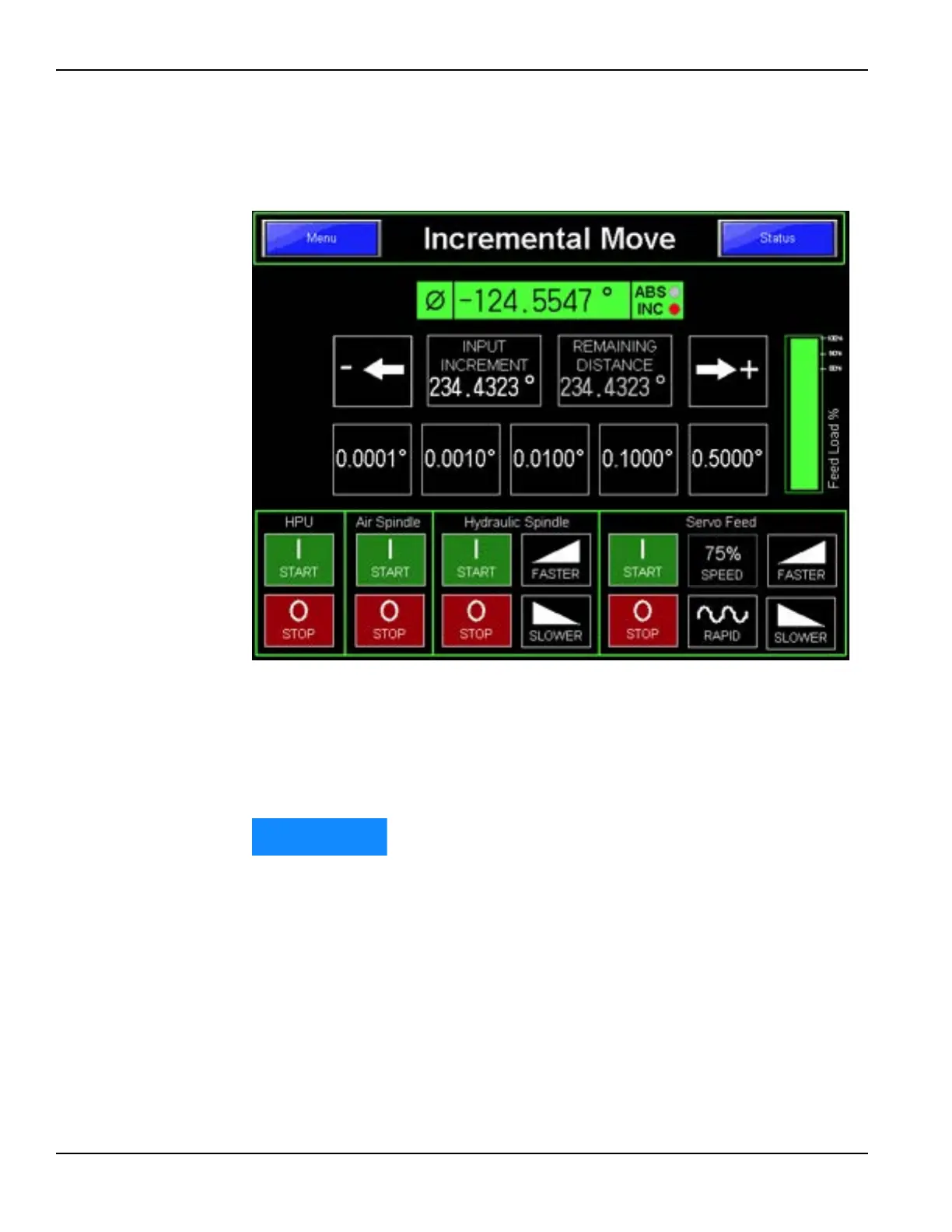

The Incremental Move Screen, shown in Figure 4-22, allows the operations of the
CM6200 to be controlled according to a incremental coordinate system.
FIGURE 4-22. INCREMENTAL MOVE SCREEN
Incremental moves are relative to the current position, in the direction and speed
you enter.
An incremental move will always be the distance entered in the “input increment”
field, and in the selected direction and speed.
Based on the requested configuration of the CM6200 options, only
certain functions will be enabled and visible. As a result, some functions
shown above may not be available on the control pendant supplied.
