Single-point option
Page 82 CM6200 Operating Manual
5. Adjust leveling screws until
you achieve the desired
grinding angle (Figure 4-
31).
6. Use height adjusting screw
on the grinding head to
adjust the height.
7. Check that the guard is in
place and all fasteners are
tight.
4.4.2 Operation
Grinding should be done after the flange has been cut flat with a single point tool
or the milling head.
1. Turn on grinding head and ramp to desired operating speed.
2. Set the spindle to touch the surface and make a light grind.
3. Check the surface finish.
4. Make any necessary adjustments to the grinder settings.
5. When the finish is satisfactory, continue grinding the surface as required.
Stay clear of the grinder during operation. Chips of metal may be thrown
into the air from the grinder. Wear eye protection while operating the
machine.
6. When the grinding operation is complete, lift the spindle and shut off the
grinder.
4.5 SINGLE-POINT OPTION
As seen in Figure 4-32 on page 84, the single-point option requires an adapter and
tool head assembly, plus the pneumatic systems for feed control. This adapter
mounts directly to the existing tool arm. See also Figure 4-33 on page 85 and Fig-
ure 4-34 on page 86.

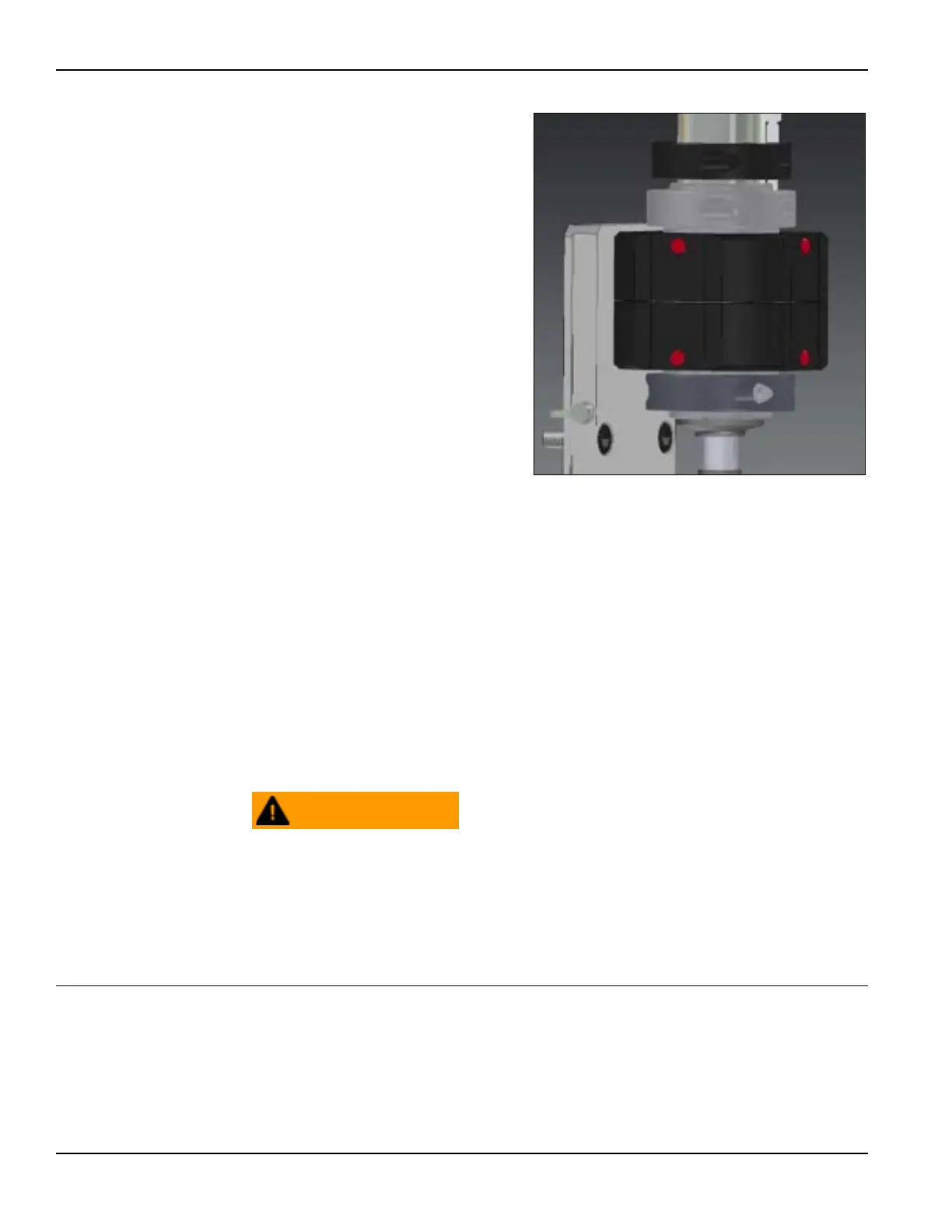

FIGURE 4-31. GRINDING HEAD LEVELING SCREWS
