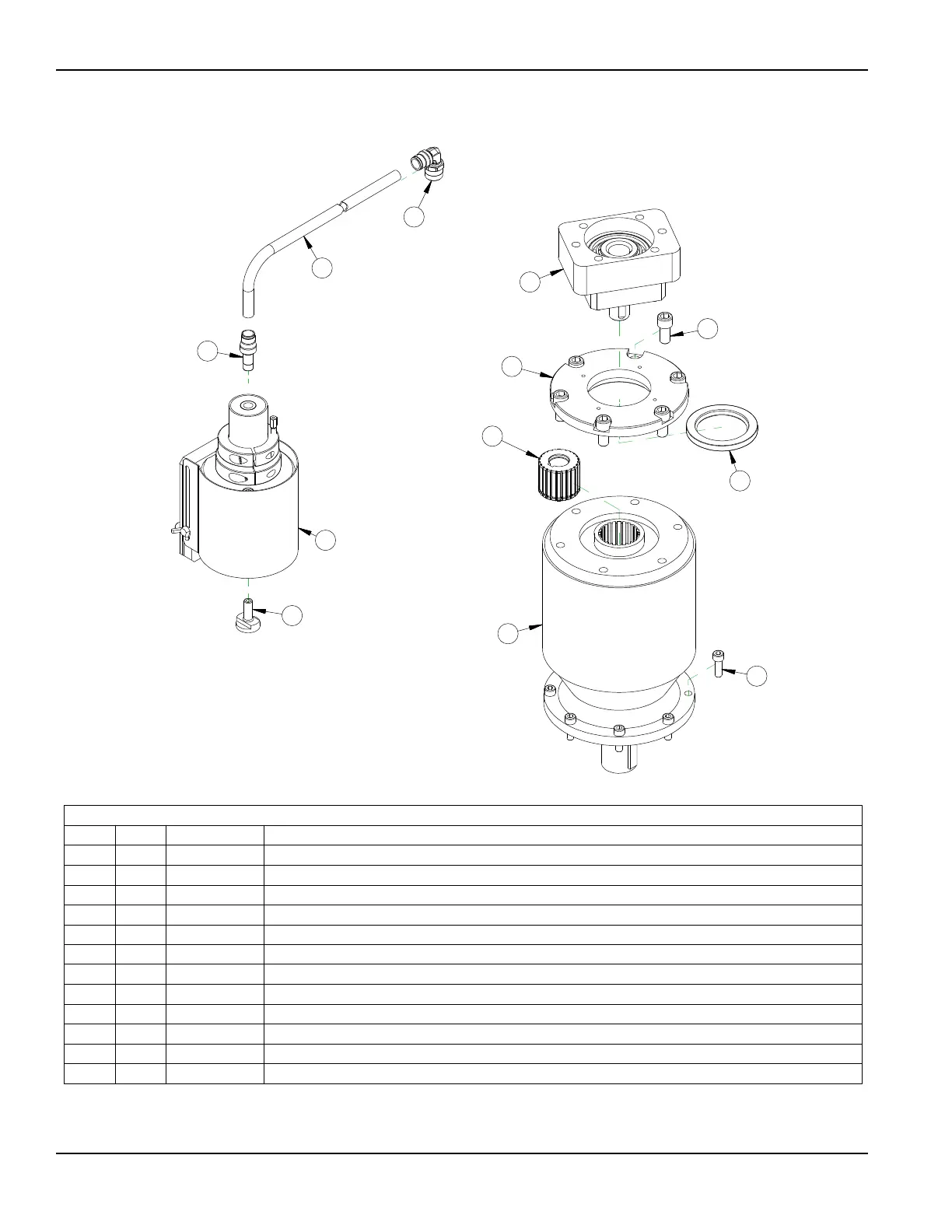

FIGURE A-17. GRINDER FOR SP CM6200 WITH GEAR REDUCER ASSEMBLY (P/N 63240)
PARTS LIST
DESCRIPTIONPART No.QTYITEM
SCREW M12 X 1.75 X 25mm SHCS4209461
SCREW M8 X 1.25 X 25mm SHCS4249482
SEAL OIL 60 x 85 x 8 DOUBLE LIP4496413
TUBING PARFLEX 1/2 OD X 3/8 ID POLYURETHANE BLACK X 130"482811304
SPLINE COUPLING BREVINI519281
5
ARBOR GRINDING WHEEL CBN 10MM SHANK M8 THREAD
6262416
FTG ELBOW 1/2 NPTM x 1/2 O.D. PRESTOLOK TUBING
6268117
FTG ADAPTER 12MM TUBE X 1/2 PRESTOLOK TUBING
6268218
ASSY GRINDING ATTACHMENT6306319
ASSY TORQUE LIMITER 24 MM OUTPUT63072110
FLANGE ADAPTER BREVINI UNIVERSAL TO NEMA 4263714111
REDUCER 162.8:1 PLANETARY63731112
6
9
8
4
7
10
1
3
5
12
2
11
