Machine envelope and operating dimensions
Page 18 CM6200 Operating Manual

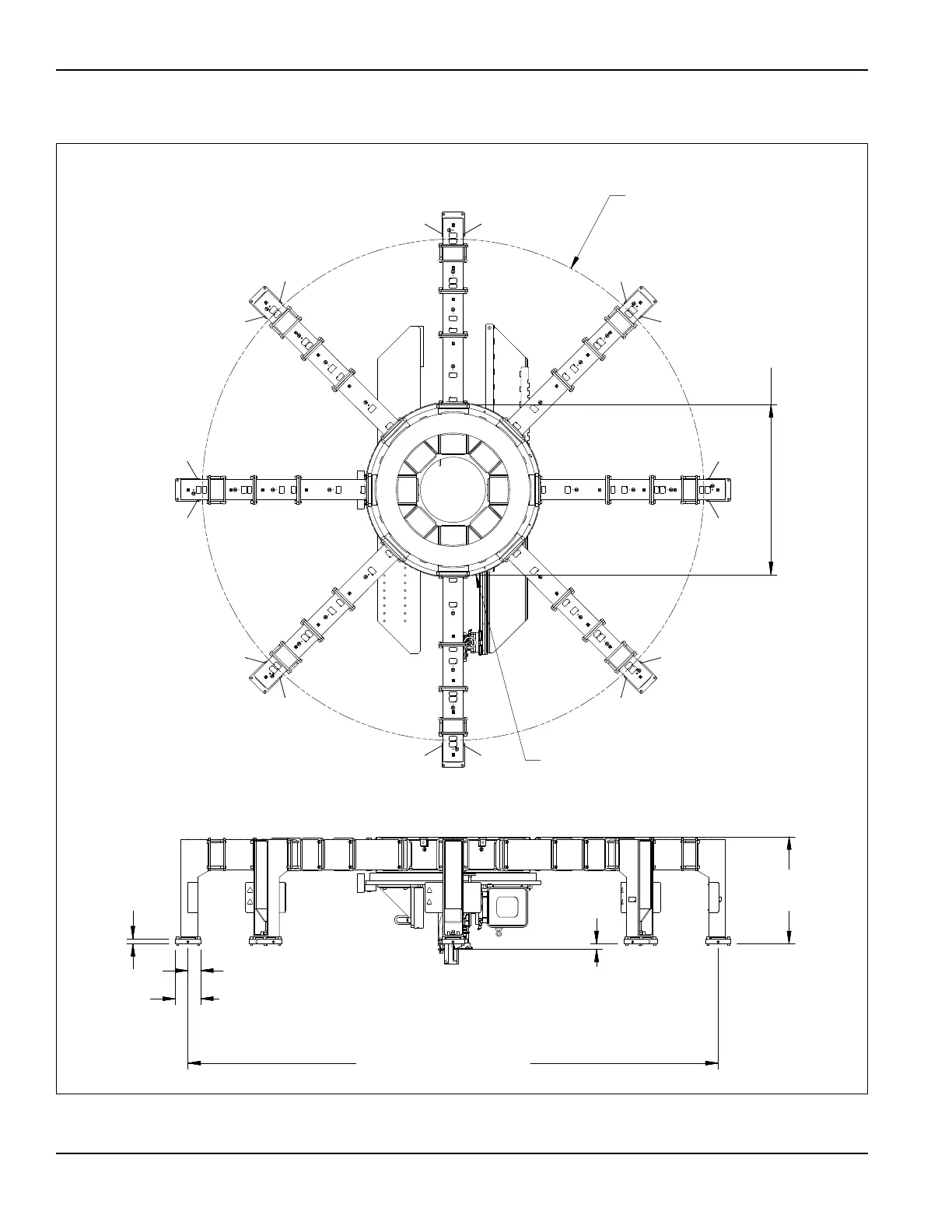

FIGURE 2-5. OD MOUNT MACHINE DIMENSIONS
2.2 [120 mm]
CLEARANCE W/
TOOLHEAD FULLY
RETRACTED
210.4 [5344 mm] MAX
145.5 [3696 mm] MIN
5.0 [127 mm]
10.0 [254 mm]
42.4
[1077 mm]
2.0
[48.3 mm]
P199.0
[5055 mm]
MAXIMUM MACHINING
DIAMETER
P69.5
[1765.3 mm]
MINIMUM MACHINING
DIAMETER
67.5
[1714.5 mm]
CHUCK MOUNTING
FACE TO FACE
