Control pendant
P/N 63674, Rev. 9 Page 65

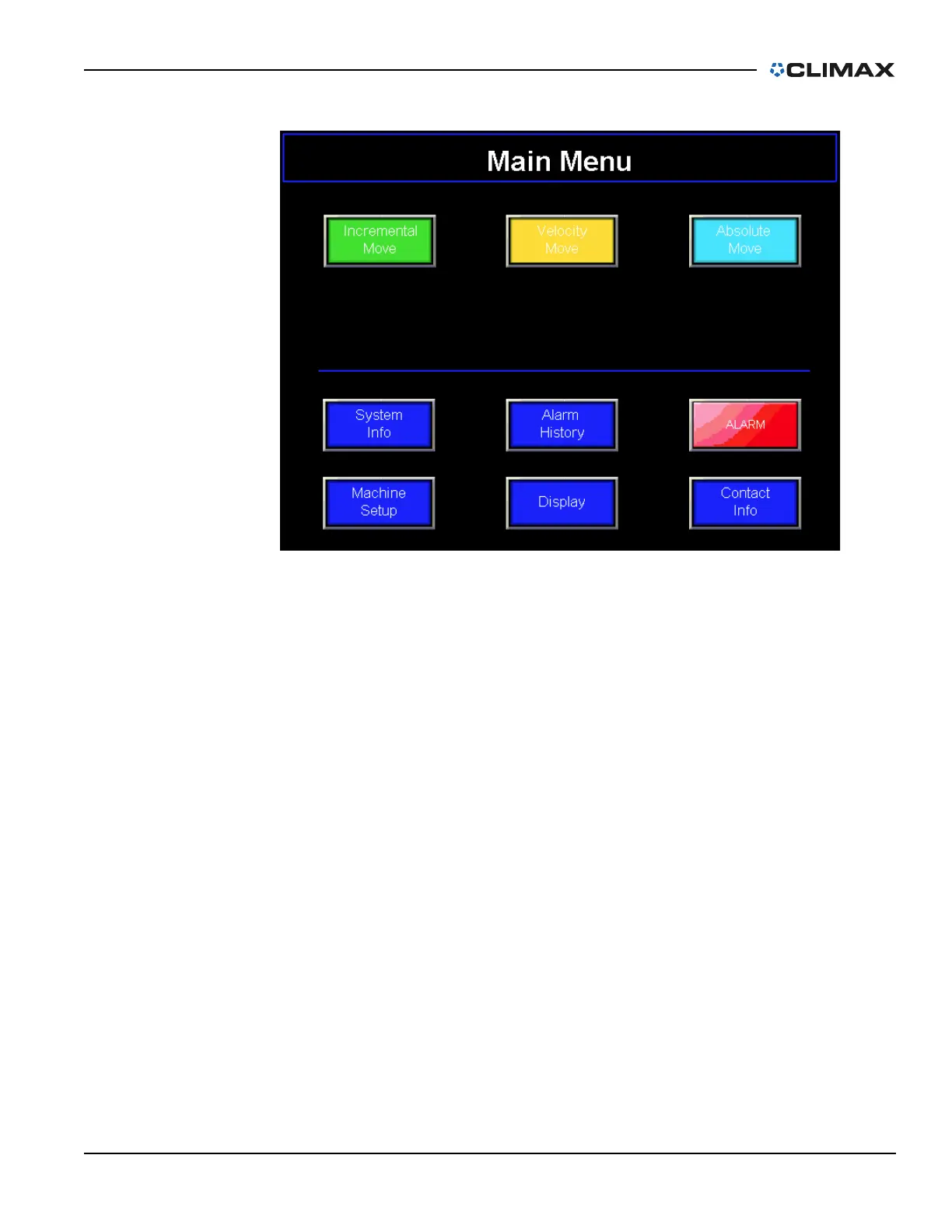

FIGURE 4-18. MAIN MENU WITHOUT SERVO MOTOR WARNING
All buttons are touch activated. Some of the buttons will also activate sub-screens
for input. Further explanations on each screen are provided below.
Buttons are color coded to assist with recognition for different modes of operation.
Incremental coordinate functions are coded with a green color and absolute coordi-
nate functions are coded with a light blue color.
