Control pendant
P/N 63674, Rev. 9 Page 63

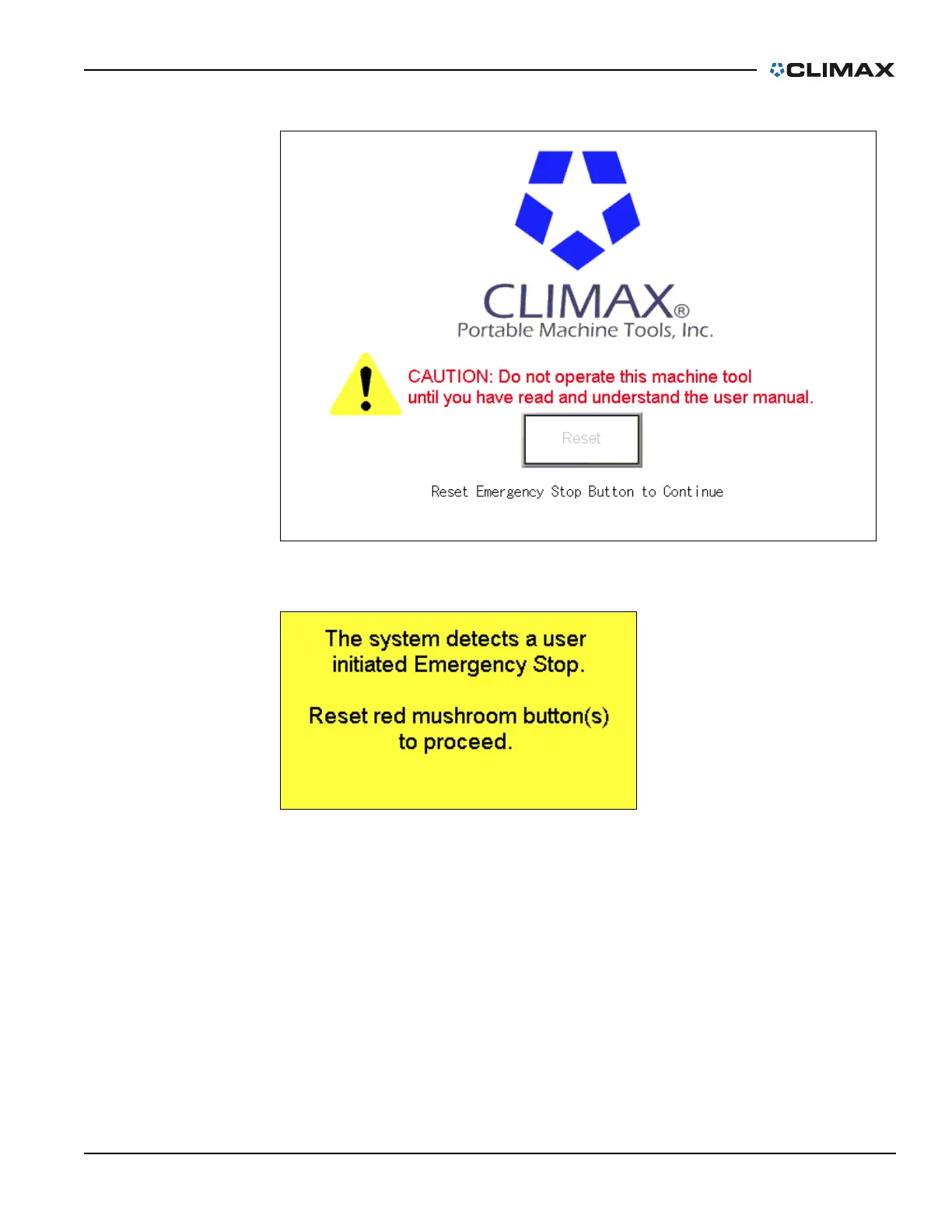

FIGURE 4-14. RESET DEPRESSED SCREEN
FIGURE 4-15. POP-UP SCREEN AFTER EMERGENCY STOP INITIATION
This pop-up screen also appears after the E-STOP is initiated. After the operator
resolves the fault, the Start System Screen will appear.
Other possible faults in the system will be displayed with pop-up screens:
To Next Page
