Climax FF6300 - Igure A-17. Ff6300 Pneumatic Kit (P;N 80969)

P/N 80679, Rev. 10 Page 97

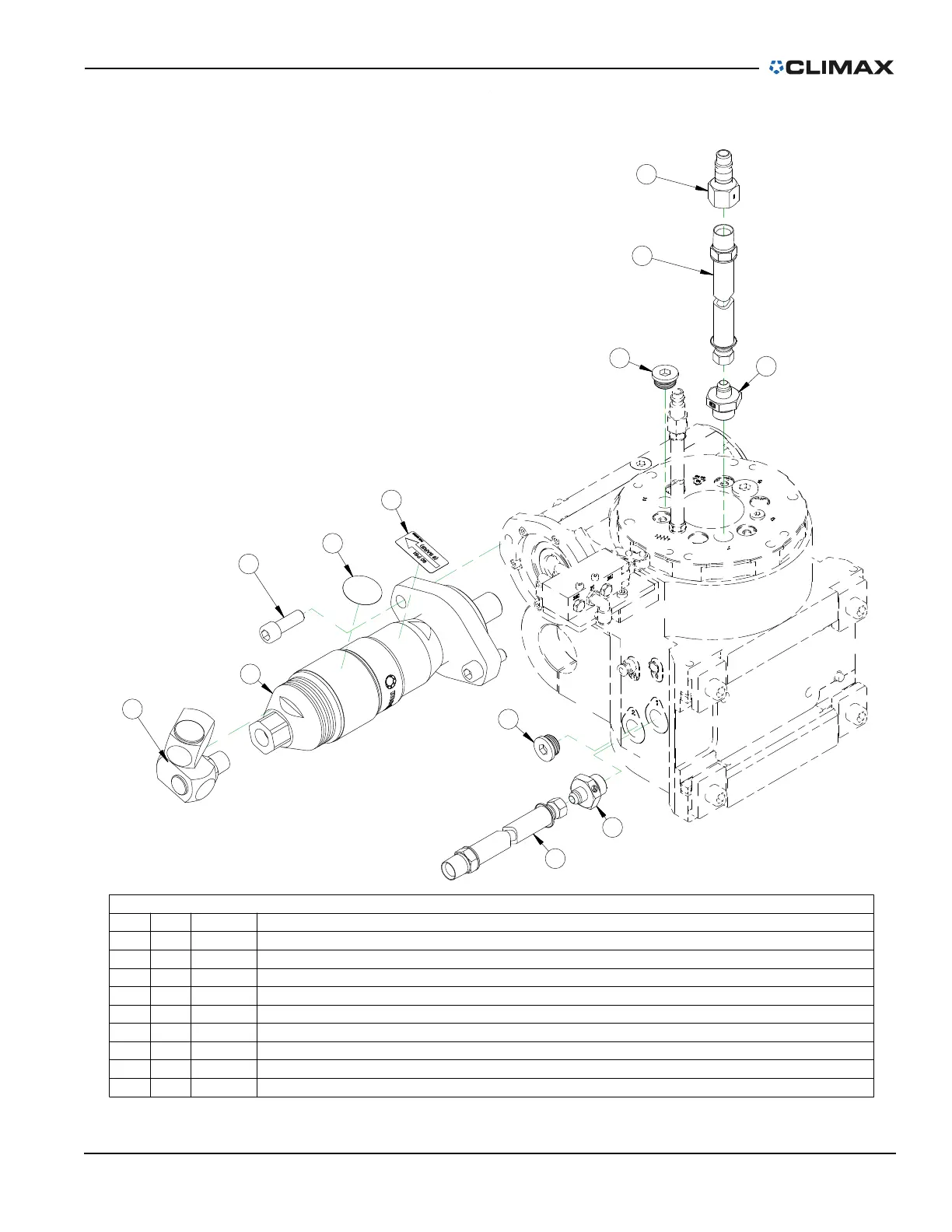

FIGURE A-17. FF6300 PNEUMATIC KIT (P/N 80969)
PARTS LIST
DESCRIPTIONP/N:QTY
ITEM
FTG QUICK COUPLER 1/2B 1/2 NPTF MALE AIR
2485111
SCREW M12 X 1.75 X 35mm SHCS
3020722
FTG SWIVEL AIR 1/2 NPTM X 1/2 NPTF
3567013
LABEL WARNING - WEAR EAR PROTECTION
5903714
FTG PLUG 1/2 BSPP SOCKET
778332
5
MOTOR AIR 486 RPM FS 208 RPM MAX 160 NM TQ
8032316
LABEL AIR MOTOR DIRECTION AND PRESSURE
805691
7
ASSY HOSE 801 1/2 ID JIC-6F X NPTM-1/2 SWIVEL X 12" PNEUMATIC
8213328
FTG ADAPTER 1/2 BSPP MALE X JIC-6M
9589029
8
9
7
4
5
8
1
2
6
3
9
5
