Page 52 FF6300 Operating Manual
2. Rotate the feed box until the
arrow points in the desired feed
direction (see Figure 3-41).
3. Reinstall the bolts and the feed
shaft.
For some setup configurations,
it may be required to orient the
feed box so that the feed
adjustment knob is facing
downwards (see Figure 3-40).
This feed box orientation retains
full functionality of the machine.
3.12.4 Disconnecting feed hoses
Press down on the collar around the
hose and pull the hoses out. (see Figure
3-41).

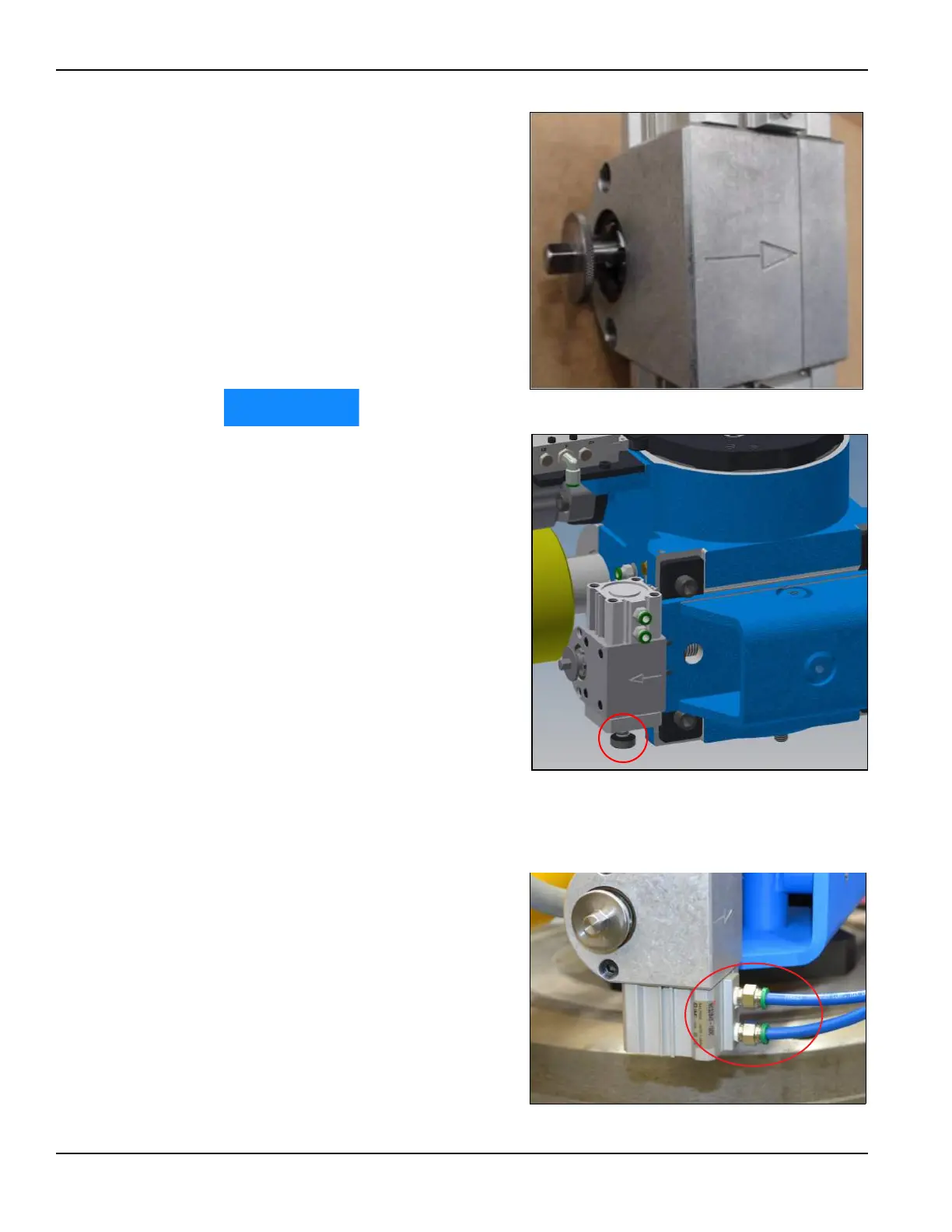

FIGURE 3-39. LOCATION OF FEED BOX DIRECTION ARROW
FIGURE 3-40. FEED ADJUSTMENT KNOB POSITIONED DOWN
FIGURE 3-41. LOCATION OF FEED HOSES
